FETs, MOSFETs
| Manufacturer | Series | Package/Case | Packaging | Product Status | FET Type | Technology | Drain to Source Voltage (Vdss) | Current - Continuous Drain (Id) @ 25°C | Drive Voltage (Max Rds On, Min Rds On) | Rds On (Max) @ Id, Vgs | Vgs(th) (Max) @ Id | Gate Charge (Qg) (Max) @ Vgs | Vgs (Max) | Input Capacitance (Ciss) (Max) @ Vds | FET Feature | Power Dissipation (Max) | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Reset All
Apply All
Result:
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | RoHs | Series | Package/Case | Packaging | Product Status | FET Type | Technology | Drain to Source Voltage (Vdss) | Current - Continuous Drain (Id) @ 25°C | Drive Voltage (Max Rds On, Min Rds On) | Rds On (Max) @ Id, Vgs | Vgs(th) (Max) @ Id | Gate Charge (Qg) (Max) @ Vgs | Vgs (Max) | Input Capacitance (Ciss) (Max) @ Vds | FET Feature | Power Dissipation (Max) | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PMZB1200UPEYLNEXPERIA PMZB1200U - 30V, P-CHAN NXP Semiconductors |
5,185 | - |
|
Datasheet |
 |
- | 3-XFDFN | Bulk | Active | P-Channel | MOSFET (Metal Oxide) | 30 V | 410mA (Ta) | 1.5V, 4.5V | 1.4Ohm @ 410mA, 4.5V | 950mV @ 250µA | 1.2 nC @ 4.5 V | ±8V | 43.2 pF @ 15 V | - | 310mW (Ta), 1.67W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DFN1006B-3 |
|
PMV100XPEA215NEXPERIA PMV100 - P-CHANNEL MOSF NXP Semiconductors |
5,990 | - |
|
Datasheet |
|
- | TO-236-3, SC-59, SOT-23-3 | Bulk | Active | P-Channel | MOSFET (Metal Oxide) | 20 V | 2.4A (Ta) | - | 128mOhm @ 2.4A, 4.5V | 1.25V @ 250µA | 6 nC @ 4.5 V | ±12V | 386 pF @ 10 V | - | 463mW (Ta), 4.45W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOT-23 |
|
PMG85XP,115NOW NEXPERIA PMG85XP - SMALL SIG NXP USA Inc. |
4,021 | - |
|
Datasheet |
|
- | 6-TSSOP, SC-88, SOT-363 | Bulk | Active | P-Channel | MOSFET (Metal Oxide) | 20 V | 2A (Tj) | 2.5V, 4.5V | 115mOhm @ 2A, 4.5V | 1.15V @ 250µA | 7.2 nC @ 4.5 V | ±12V | 560 pF @ 10 V | - | 375mW (Ta), 2.4W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 6-TSSOP |
|
PMT760EN,115MOSFET N-CH 100V 900MA SOT223 NXP USA Inc. |
4,891 | - |
|
- |
|
- | TO-261-4, TO-261AA | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 100 V | 900mA (Ta) | 4.5V, 10V | 950mOhm @ 800mA, 10V | 2.5V @ 250µA | 3 nC @ 10 V | ±20V | 160 pF @ 80 V | - | 800mW (Ta), 6.2W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SC-73 |
|
BSH111,215MOSFET N-CH 55V 335MA SOT-23 NXP USA Inc. |
3,202 | - |
|
- |
|
* | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
PMF780SN,115MOSFET N-CH 60V 570MA SOT323-3 NXP USA Inc. |
4,677 | - |
|
Datasheet |
|
TrenchMOS™ | SC-70, SOT-323 | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 60 V | 570mA (Ta) | 10V | 920mOhm @ 300mA, 10V | 2V @ 250µA | 1.05 nC @ 10 V | ±20V | 23 pF @ 30 V | - | 560mW (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SC-70 |
|

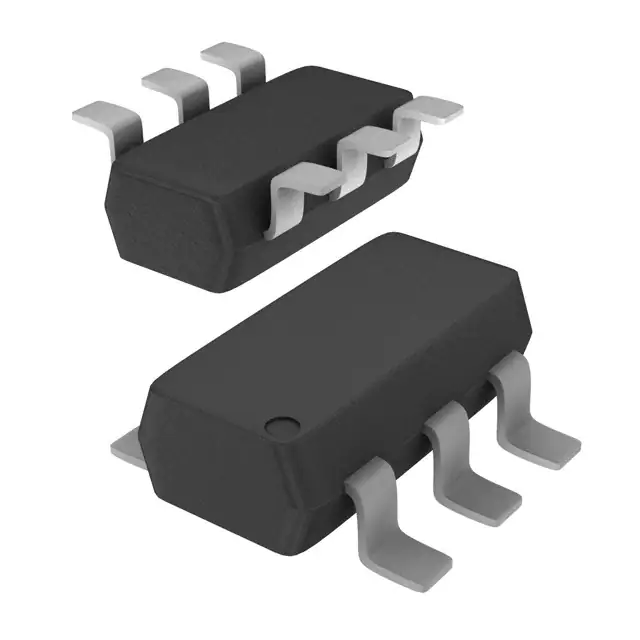

PMN70XPE,115NOW NEXPERIA PMN70XPE - SC-74 NXP USA Inc. |
5,721 | - |
|
Datasheet |
|
- | SC-74, SOT-457 | Bulk | Active | P-Channel | MOSFET (Metal Oxide) | 20 V | 3.2A (Ta) | 2.5V, 4.5V | 85mOhm @ 2A, 4.5V | 1.25V @ 250µA | 7.8 nC @ 4.5 V | ±12V | 602 pF @ 10 V | - | 500mW (Ta), 6.25W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 6-TSOP |
|
|
PMT760EN,135MOSFET N-CH 100V 900MA SOT223 NXP USA Inc. |
5,084 | - |
|
Datasheet |
|
- | TO-261-4, TO-261AA | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 100 V | 900mA (Ta) | 4.5V, 10V | 950mOhm @ 800mA, 10V | 2.5V @ 250µA | 3 nC @ 10 V | ±20V | 160 pF @ 80 V | - | 800mW (Ta), 6.2W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SC-73 |
|
PMXB350UPEZNEXPERIA PMXB350UPE - 20 V, P-CH NXP Semiconductors |
5,475 | - |
|
Datasheet |
|
- | 3-XDFN Exposed Pad | Bulk | Active | P-Channel | MOSFET (Metal Oxide) | 20 V | 1.2A (Ta) | 1.2V, 4.5V | 447mOhm @ 1.2A, 4.5V | 950mV @ 250µA | 2.3 nC @ 4.5 V | ±8V | 116 pF @ 10 V | - | 360mW (Ta), 5.68W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DFN1010D-3 |
|
PMN35EN,115MOSFET N-CH 30V 5.1A 6TSOP NXP USA Inc. |
5,156 | - |
|
Datasheet |
|
- | SC-74, SOT-457 | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 30 V | 5.1A (Ta) | 4.5V, 10V | 31mOhm @ 5.1A, 10V | 2.5V @ 250µA | 9.3 nC @ 10 V | ±20V | 334 pF @ 15 V | - | 500mW (Ta) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SC-74 |
