FETs, MOSFETs
| Manufacturer | Series | Package/Case | Packaging | Product Status | FET Type | Technology | Drain to Source Voltage (Vdss) | Current - Continuous Drain (Id) @ 25°C | Drive Voltage (Max Rds On, Min Rds On) | Rds On (Max) @ Id, Vgs | Vgs(th) (Max) @ Id | Gate Charge (Qg) (Max) @ Vgs | Vgs (Max) | Input Capacitance (Ciss) (Max) @ Vds | FET Feature | Power Dissipation (Max) | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Reset All
Apply All
Result:
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | RoHs | Series | Package/Case | Packaging | Product Status | FET Type | Technology | Drain to Source Voltage (Vdss) | Current - Continuous Drain (Id) @ 25°C | Drive Voltage (Max Rds On, Min Rds On) | Rds On (Max) @ Id, Vgs | Vgs(th) (Max) @ Id | Gate Charge (Qg) (Max) @ Vgs | Vgs (Max) | Input Capacitance (Ciss) (Max) @ Vds | FET Feature | Power Dissipation (Max) | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
.JPG)
|
TSM2N7000KCT B0GMOSFET N-CHANNEL 60V 300MA TO92 Taiwan Semiconductor Corporation |
5,461 | - |
|
- |
 |
- | TO-226-3, TO-92-3 (TO-226AA) | Box | Obsolete | N-Channel | MOSFET (Metal Oxide) | 60 V | 300mA (Ta) | 5V, 10V | 5Ohm @ 100mA, 10V | 2.5V @ 250µA | 0.4 nC @ 4.5 V | ±20V | 60 pF @ 25 V | - | 400mW (Ta) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-92 |
|
TSM2303CX RFGMOSFET P-CHANNEL 30V 1.3A SOT23 Taiwan Semiconductor Corporation |
3,602 | - |
|
- |
|
- | TO-236-3, SC-59, SOT-23-3 | Tape & Reel (TR) | Obsolete | P-Channel | MOSFET (Metal Oxide) | 30 V | 1.3A (Ta) | 4.5V, 10V | 180mOhm @ 1.3A, 10V | 3V @ 250µA | 3.2 nC @ 4.5 V | ±20V | 565 pF @ 10 V | - | 700mW (Ta) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOT-23 |
|
TSM2N7002KCX60V, 0.3A, SINGLE N-CHANNEL POWE Taiwan Semiconductor Corporation |
3,442 | - |
|
- |
|
- | TO-236-3, SC-59, SOT-23-3 | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 60 V | 300mA (Ta) | 4.5V, 10V | 2Ohm @ 300mA, 10V | 2.5V @ 250µA | 0.6 nC @ 4.5 V | ±20V | 30 pF @ 25 V | - | 300mW (Ta) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOT-23 |
|
|
TSM1N45CT B0GMOSFET N-CH 450V 500MA TO92 Taiwan Semiconductor Corporation |
4,197 | - |
|
Datasheet |
|
- | TO-226-3, TO-92-3 (TO-226AA) | Bulk | Obsolete | N-Channel | MOSFET (Metal Oxide) | 450 V | 500mA (Tc) | 10V | 4.25Ohm @ 250mA, 10V | 4.25V @ 250µA | 6.5 nC @ 10 V | ±30V | 235 pF @ 25 V | - | 2W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-92 |
|

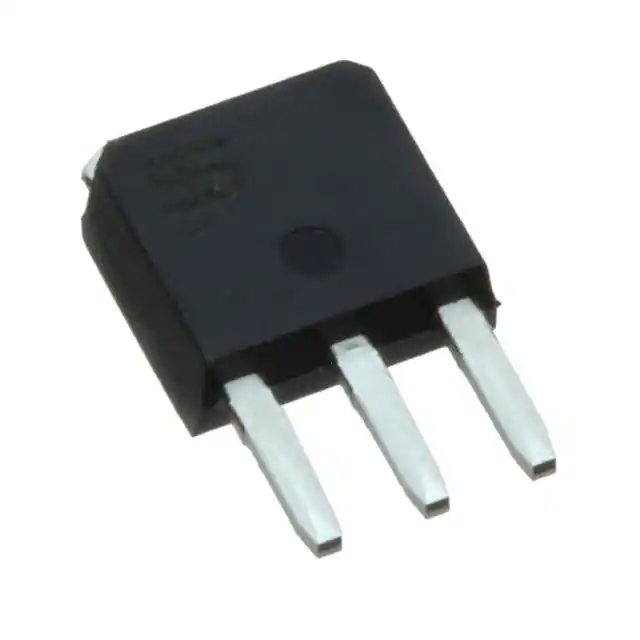

TSM2NB65CH X0GMOSFET N-CHANNEL 650V 2A TO251 Taiwan Semiconductor Corporation |
4,694 | - |
|
- |
|
- | TO-251-3 Stub Leads, IPAK | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 650 V | 2A (Tc) | 10V | 5Ohm @ 1A, 10V | 4V @ 250µA | 13 nC @ 10 V | ±20V | 390 pF @ 25 V | - | 65W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-251 (IPAK) |
|
TSM6NB60CZ C0GMOSFET N-CHANNEL 600V 6A TO220 Taiwan Semiconductor Corporation |
5,352 | - |
|
- |
|
- | TO-220-3 | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 600 V | 6A (Tc) | 10V | 1.6Ohm @ 3A, 10V | 4.5V @ 250µA | 18.3 nC @ 10 V | ±30V | 872 pF @ 25 V | - | 40W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-220 |
|
|
TSM650P02CX-20V, -4.1A, SINGLE P-CHANNEL PO Taiwan Semiconductor Corporation |
5,757 | - |
|
- |
|
- | TO-236-3, SC-59, SOT-23-3 | Tape & Reel (TR) | Active | P-Channel | MOSFET (Metal Oxide) | 20 V | 4.1A (Tc) | 1.8V, 4.5V | 65mOhm @ 3A, 4.5V | 800mV @ 250µA | 6.4 nC @ 4.5 V | ±10V | 515 pF @ 10 V | - | 1.56W (Tc) | 150°C (TJ) | - | - | Surface Mount | SOT-23 |
|
|
TSM9434CS RLG-20V, -6.4A, SINGLE P-CHANNEL PO Taiwan Semiconductor Corporation |
5,405 | - |
|
- |
|
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Obsolete | P-Channel | MOSFET (Metal Oxide) | 20 V | 6.4A (Tc) | 2.5V, 4.5V | 40mOhm @ 6.4A, 4.5V | 1V @ 250µA | 19 nC @ 4.5 V | ±8V | 1020 pF @ 10 V | - | 2.5W (Ta) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-SOP |
|
|
TSM850N06CX60V, 3A, SINGLE N-CHANNEL POWER Taiwan Semiconductor Corporation |
4,891 | - |
|
- |
|
- | TO-236-3, SC-59, SOT-23-3 | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 60 V | 2.3A (Ta), 3A (Tc) | 4.5V, 10V | 85mOhm @ 2.3A, 10V | 2.5V @ 250µA | 9.5 nC @ 10 V | ±20V | 529 pF @ 30 V | - | 1W (Ta), 1.7W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOT-23 |
|
|
TSM210N02CX20V, 6.7A, SINGLE N-CHANNEL POWE Taiwan Semiconductor Corporation |
4,320 | - |
|
Datasheet |
|
- | TO-236-3, SC-59, SOT-23-3 | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 20 V | 6.7A (Tc) | 1.8V, 4.5V | 21mOhm @ 4A, 4.5V | 800mV @ 250µA | 5.8 nC @ 4.5 V | ±10V | 600 pF @ 10 V | - | 1.56W (Tc) | 150°C (TJ) | - | - | Surface Mount | SOT-23 |
