FETs, MOSFETs
| Manufacturer | Series | Package/Case | Packaging | Product Status | FET Type | Technology | Drain to Source Voltage (Vdss) | Current - Continuous Drain (Id) @ 25°C | Drive Voltage (Max Rds On, Min Rds On) | Rds On (Max) @ Id, Vgs | Vgs(th) (Max) @ Id | Gate Charge (Qg) (Max) @ Vgs | Vgs (Max) | Input Capacitance (Ciss) (Max) @ Vds | FET Feature | Power Dissipation (Max) | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Reset All
Apply All
Result:
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | RoHs | Series | Package/Case | Packaging | Product Status | FET Type | Technology | Drain to Source Voltage (Vdss) | Current - Continuous Drain (Id) @ 25°C | Drive Voltage (Max Rds On, Min Rds On) | Rds On (Max) @ Id, Vgs | Vgs(th) (Max) @ Id | Gate Charge (Qg) (Max) @ Vgs | Vgs (Max) | Input Capacitance (Ciss) (Max) @ Vds | FET Feature | Power Dissipation (Max) | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
2N6660JTXP02MOSFET N-CH 60V 990MA TO205AD Vishay Siliconix |
4,395 | - |
|
Datasheet |
 |
- | TO-205AD, TO-39-3 Metal Can | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 60 V | 990mA (Tc) | 5V, 10V | 3Ohm @ 1A, 10V | 2V @ 1mA | - | ±20V | 50 pF @ 25 V | - | 725mW (Ta), 6.25W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-205AD (TO-39) |
|
|
2N6661JTX02MOSFET N-CH 90V 860MA TO39 Vishay Siliconix |
4,645 | - |
|
Datasheet |
|
- | TO-205AD, TO-39-3 Metal Can | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 90 V | 860mA (Tc) | 5V, 10V | 4Ohm @ 1A, 10V | 2V @ 1mA | - | ±20V | 50 pF @ 25 V | - | 725mW (Ta), 6.25W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-39 |
|
|
2N6661JTXP02MOSFET N-CH 90V 860MA TO39 Vishay Siliconix |
4,995 | - |
|
Datasheet |
|
- | TO-205AD, TO-39-3 Metal Can | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 90 V | 860mA (Tc) | 5V, 10V | 4Ohm @ 1A, 10V | 2V @ 1mA | - | ±20V | 50 pF @ 25 V | - | 725mW (Ta), 6.25W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-39 |
|
|
2N6661JTVP02MOSFET N-CH 90V 860MA TO39 Vishay Siliconix |
4,865 | - |
|
Datasheet |
|
- | TO-205AD, TO-39-3 Metal Can | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 90 V | 860mA (Tc) | 5V, 10V | 4Ohm @ 1A, 10V | 2V @ 1mA | - | ±20V | 50 pF @ 25 V | - | 725mW (Ta), 6.25W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-39 |
|
SI7454DP-T1-E3MOSFET N-CH 100V 5A PPAK SO-8 Vishay Siliconix |
4,051 | - |
|
Datasheet |
|
TrenchFET® | PowerPAK® SO-8 | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 100 V | 5A (Ta) | 6V, 10V | 34mOhm @ 7.8A, 10V | 4V @ 250µA | 30 nC @ 10 V | ±20V | - | - | 1.9W (Ta) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | PowerPAK® SO-8 |
|
IRF510MOSFET N-CH 100V 5.6A TO220AB Vishay Siliconix |
3,479 | - |
|
Datasheet |
|
- | TO-220-3 | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 100 V | 5.6A (Tc) | 10V | 540mOhm @ 3.4A, 10V | 4V @ 250µA | 8.3 nC @ 10 V | ±20V | 180 pF @ 25 V | - | 43W (Tc) | -55°C ~ 175°C (TJ) | - | - | Through Hole | TO-220AB |
|
|
IRF9510MOSFET P-CH 100V 4A TO220AB Vishay Siliconix |
5,619 | - |
|
Datasheet |
|
- | TO-220-3 | Tube | Obsolete | P-Channel | MOSFET (Metal Oxide) | 100 V | 4A (Tc) | 10V | 1.2Ohm @ 2.4A, 10V | 4V @ 250µA | 8.7 nC @ 10 V | ±20V | 200 pF @ 25 V | - | 43W (Tc) | -55°C ~ 175°C (TJ) | - | - | Through Hole | TO-220AB |
|
IRF840MOSFET N-CH 500V 8A TO220AB Vishay Siliconix |
5,652 | - |
|
Datasheet |
|
- | TO-220-3 | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 500 V | 8A (Tc) | 10V | 850mOhm @ 4.8A, 10V | 4V @ 250µA | 63 nC @ 10 V | ±20V | 1300 pF @ 25 V | - | 125W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-220AB |
|
IRFD110MOSFET N-CH 100V 1A 4DIP Vishay Siliconix |
5,406 | - |
|
Datasheet |
|
- | 4-DIP (0.300", 7.62mm) | Bulk | Obsolete | N-Channel | MOSFET (Metal Oxide) | 100 V | 1A (Ta) | 10V | 540mOhm @ 600mA, 10V | 4V @ 250µA | 8.3 nC @ 10 V | ±20V | 180 pF @ 25 V | - | 1.3W (Ta) | -55°C ~ 175°C (TJ) | - | - | Through Hole | 4-HVMDIP |
|

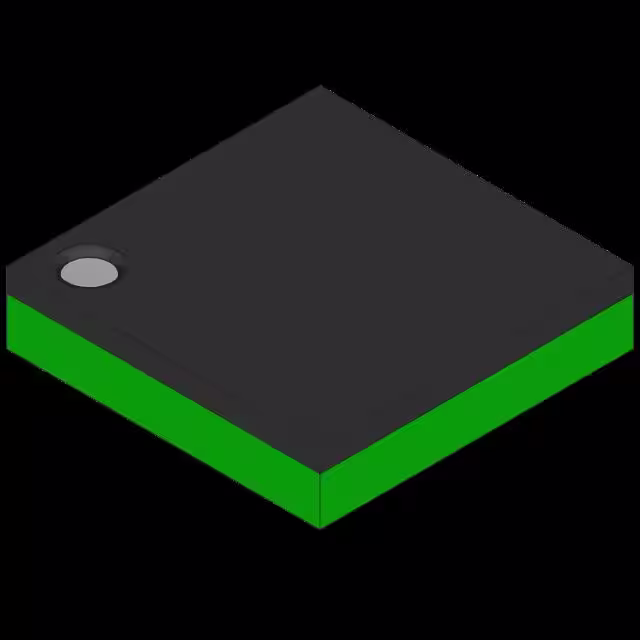

IRFD9113MOSFET P-CH 60V 600MA 4DIP Vishay Siliconix |
4,072 | - |
|
- |
|
- | 4-DIP (0.300", 7.62mm) | Tube | Obsolete | P-Channel | MOSFET (Metal Oxide) | 60 V | 600mA (Ta) | - | 1.6Ohm @ 300mA, 10V | - | 15 nC @ 15 V | - | 250 pF @ 25 V | - | - | - | - | - | Through Hole | 4-HVMDIP |
