FETs, MOSFETs
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | RoHs | Series | Package/Case | Packaging | Product Status | FET Type | Technology | Drain to Source Voltage (Vdss) | Current - Continuous Drain (Id) @ 25°C | Drive Voltage (Max Rds On, Min Rds On) | Rds On (Max) @ Id, Vgs | Vgs(th) (Max) @ Id | Gate Charge (Qg) (Max) @ Vgs | Vgs (Max) | Input Capacitance (Ciss) (Max) @ Vds | FET Feature | Power Dissipation (Max) | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SI8402DB-T1-E1MOSFET N-CH 20V 5.3A 2X2 4-MFP Vishay Siliconix |
5,532 |
|
- |
 |
- | 4-XFBGA, CSPBGA | Cut Tape (CT) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 20 V | 5.3A (Ta) | - | 37mOhm @ 1A, 4.5V | 1V @ 250µA | 26 nC @ 4.5 V | - | - | - | - | - | - | - | Surface Mount | 4-Microfoot |
|
SUM110N04-03P-E3MOSFET N-CH 40V 110A TO263 Vishay Siliconix |
3,234 |
|
- |
|
TrenchFET® | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 40 V | 110A (Tc) | 10V | 3.1mOhm @ 30A, 10V | 4V @ 250µA | 150 nC @ 10 V | ±20V | 6500 pF @ 25 V | - | 3.75W (Ta), 375W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | TO-263 (D2PAK) |
|
|
SUM110N04-04-E3MOSFET N-CH 40V 110A TO263 Vishay Siliconix |
5,575 |
|
Datasheet |
|
TrenchFET® | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 40 V | 110A (Tc) | 10V | 3.5mOhm @ 30A, 10V | 4V @ 250µA | 200 nC @ 10 V | ±20V | 6800 pF @ 25 V | - | 3.75W (Ta), 250W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | TO-263 (D2PAK) |
|
|
SUM110N04-2M3L-E3MOSFET N-CH 40V 110A TO263 Vishay Siliconix |
3,170 |
|
- |
|
TrenchFET® | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 40 V | 110A (Tc) | 4.5V, 10V | 2.3mOhm @ 30A, 10V | 3V @ 250µA | 360 nC @ 10 V | ±20V | 13600 pF @ 25 V | - | 3.75W (Ta), 375W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | TO-263 (D2PAK) |
|
|
SUM52N20-39P-E3MOSFET N-CH 200V 52A TO263 Vishay Siliconix |
5,131 |
|
- |
|
TrenchFET® | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 200 V | 52A (Tc) | 10V, 15V | 38mOhm @ 20A, 15V | 4.5V @ 250µA | 185 nC @ 15 V | ±25V | 4220 pF @ 25 V | - | 3.12W (Ta), 250W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | TO-263 (D2PAK) |
|
SI1067X-T1-GE3MOSFET P-CH 20V 1.06A SC89-6 Vishay Siliconix |
3,985 |
|
Datasheet |
|
TrenchFET® | SOT-563, SOT-666 | Tape & Reel (TR) | Obsolete | P-Channel | MOSFET (Metal Oxide) | 20 V | 1.06A (Ta) | 1.8V, 4.5V | 150mOhm @ 1.06A, 4.5V | 950mV @ 250µA | 9.3 nC @ 5 V | ±8V | 375 pF @ 10 V | - | 236mW (Ta) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SC-89 (SOT-563F) |
|
SIA443DJ-T1-GE3MOSFET P-CH 20V 9A PPAK SC70-6 Vishay Siliconix |
4,106 |
|
- |
|
TrenchFET® | PowerPAK® SC-70-6 | Tape & Reel (TR) | Obsolete | P-Channel | MOSFET (Metal Oxide) | 20 V | 9A (Tc) | 1.8V, 4.5V | 45mOhm @ 4.7A, 4.5V | 1V @ 250µA | 25 nC @ 8 V | ±8V | 750 pF @ 10 V | - | 3.3W (Ta), 15W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | PowerPAK® SC-70-6 |
|
|
SIA450DJ-T1-GE3MOSFET N-CH 240V 1.52A PPAK Vishay Siliconix |
5,578 |
|
- |
|
TrenchFET® | PowerPAK® SC-70-6 | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 240 V | 1.52A (Tc) | 2.5V, 10V | 2.9Ohm @ 700mA, 10V | 2.4V @ 250µA | 7.04 nC @ 10 V | ±20V | 167 pF @ 120 V | - | 3.3W (Ta), 15W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | PowerPAK® SC-70-6 |
|
SIA810DJ-T1-GE3MOSFET N-CH 20V 4.5A PPAK SC70-6 Vishay Siliconix |
3,568 |
|
Datasheet |
|
LITTLE FOOT® | PowerPAK® SC-70-6 Dual | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 20 V | 4.5A (Tc) | 1.8V, 4.5V | 53mOhm @ 3.7A, 4.5V | 1V @ 250µA | 11.5 nC @ 8 V | ±8V | 400 pF @ 10 V | Schottky Diode (Isolated) | 1.9W (Ta), 6.5W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | PowerPAK® SC-70-6 Dual |
|

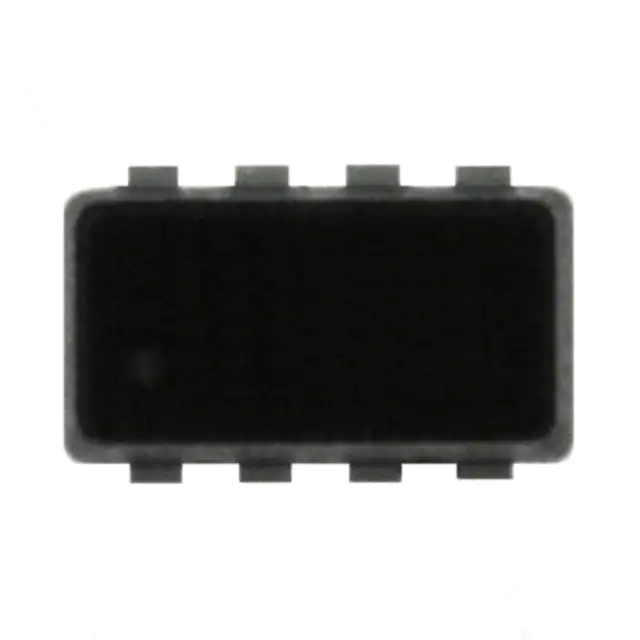

SI5475DDC-T1-GE3MOSFET P-CH 12V 6A 1206-8 Vishay Siliconix |
4,108 |
|
Datasheet |
|
TrenchFET® | 8-SMD, Flat Leads | Tape & Reel (TR) | Obsolete | P-Channel | MOSFET (Metal Oxide) | 12 V | 6A (Tc) | 1.8V, 4.5V | 32mOhm @ 5.4A, 4.5V | 1V @ 250µA | 50 nC @ 8 V | ±8V | 1600 pF @ 6 V | - | 2.3W (Ta), 5.7W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 1206-8 ChipFET™ |
