FETs, MOSFETs
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | RoHs | Series | Package/Case | Packaging | Product Status | FET Type | Technology | Drain to Source Voltage (Vdss) | Current - Continuous Drain (Id) @ 25°C | Drive Voltage (Max Rds On, Min Rds On) | Rds On (Max) @ Id, Vgs | Vgs(th) (Max) @ Id | Gate Charge (Qg) (Max) @ Vgs | Vgs (Max) | Input Capacitance (Ciss) (Max) @ Vds | FET Feature | Power Dissipation (Max) | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TPH8R008NH,L1QMOSFET N-CH 80V 34A 8SOP Toshiba Semiconductor and Storage |
4,804 |
|
Datasheet |
 |
U-MOSVIII-H | 8-PowerVDFN | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 80 V | 34A (Tc) | 10V | 8mOhm @ 17A, 10V | 4V @ 500µA | 35 nC @ 10 V | ±20V | 3000 pF @ 40 V | - | 1.6W (Ta), 61W (Tc) | 150°C (TJ) | - | - | Surface Mount | 8-SOP Advance (5x5) |
|
TPH5R906NH,L1QMOSFET N-CH 60V 28A 8SOP Toshiba Semiconductor and Storage |
4,233 |
|
Datasheet |
|
U-MOSVIII-H | 8-PowerVDFN | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 60 V | 28A (Ta) | 10V | 5.9mOhm @ 14A, 10V | 4V @ 300µA | 38 nC @ 10 V | ±20V | 3100 pF @ 30 V | - | 1.6W (Ta), 57W (Tc) | 150°C (TJ) | - | - | Surface Mount | 8-SOP Advance (5x5) |
|
TK290P60Y,RQMOSFET N-CH 600V 11.5A DPAK Toshiba Semiconductor and Storage |
3,056 |
|
Datasheet |
|
DTMOSV | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 11.5A (Tc) | 10V | 290mOhm @ 5.8A, 10V | 4V @ 450µA | 25 nC @ 10 V | ±30V | 730 pF @ 300 V | - | 100W (Tc) | 150°C (TJ) | - | - | Surface Mount | DPAK |
|

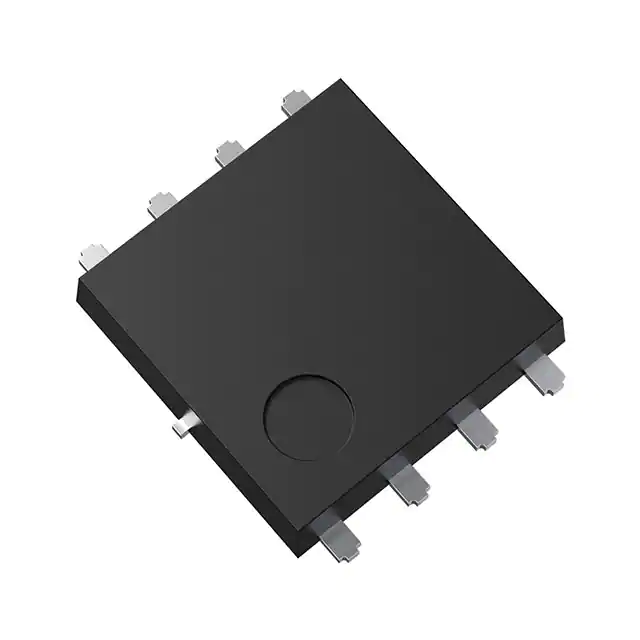

XPH3R206NC,L1XHQMOSFET N-CH 60V 70A 8SOP Toshiba Semiconductor and Storage |
5,866 |
|
Datasheet |
|
U-MOSVIII-H | 8-PowerVDFN | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 60 V | 70A (Ta) | - | 3.2mOhm @ 35A, 10V | 2.5V @ 500µA | 65 nC @ 10 V | ±20V | 4180 pF @ 10 V | - | 960mW (Ta), 132W (Tc) | 175°C | Automotive | AEC-Q101 | Surface Mount | 8-SOP Advance (5x5) |
|
|
TPH8R80ANH,L1QMOSFET N CH 100V 32A 8-SOP Toshiba Semiconductor and Storage |
3,318 |
|
Datasheet |
|
U-MOSVIII-H | 8-PowerVDFN | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 100 V | 32A (Tc) | 10V | 8.8mOhm @ 16A, 10V | 4V @ 500µA | 33 nC @ 10 V | ±20V | 2800 pF @ 50 V | - | 1.6W (Ta), 61W (Tc) | 150°C (TJ) | - | - | Surface Mount | 8-SOP Advance (5x5) |
|
|
XPH6R30ANB,L1XHQMOSFET N-CH 100V 45A 8SOP Toshiba Semiconductor and Storage |
4,747 |
|
Datasheet |
|
U-MOSVIII-H | 8-PowerVDFN | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 100 V | 45A (Ta) | 6V, 10V | 6.3mOhm @ 22.5A, 10V | 3.5V @ 500µA | 52 nC @ 10 V | ±20V | 3240 pF @ 10 V | - | 960mW (Ta), 132W (Tc) | 175°C | - | - | Surface Mount | 8-SOP Advance (5x5) |
|
TK10A50W,S5XX35 PB-F POWER MOSFET TRANSISTOR Toshiba Semiconductor and Storage |
5,111 |
|
Datasheet |
|
- | TO-220-3 Full Pack | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 500 V | 9.7A (Ta) | 10V | 380mOhm @ 4.9A, 10V | 3.7V @ 500µA | 20 nC @ 10 V | ±30V | 700 pF @ 300 V | - | 30W (Tc) | 150°C | - | - | Through Hole | TO-220SIS |
|
TK1R4S04PB,LXHQMOSFET N-CH 40V 120A DPAK Toshiba Semiconductor and Storage |
4,045 |
|
Datasheet |
|
U-MOSIX-H | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 40 V | 120A (Ta) | 6V, 10V | 1.9mOhm @ 60A, 6V | 3V @ 500µA | 103 nC @ 10 V | ±20V | 5500 pF @ 10 V | - | 180W (Tc) | 175°C | - | - | Surface Mount | DPAK+ |
|
|
TK290P65Y,RQMOSFET N-CH 650V 11.5A DPAK Toshiba Semiconductor and Storage |
5,845 |
|
Datasheet |
|
DTMOSV | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 650 V | 11.5A (Tc) | 10V | 290mOhm @ 5.8A, 10V | 4V @ 450µA | 25 nC @ 10 V | ±30V | 730 pF @ 300 V | - | 100W (Tc) | 150°C (TJ) | - | - | Surface Mount | DPAK |
|
XPW6R30ANB,L1XHQMOSFET N-CH 100V 45A 8DSOP Toshiba Semiconductor and Storage |
3,390 |
|
Datasheet |
|
U-MOSVIII-H | 8-PowerVDFN | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 100 V | 45A (Ta) | 6V, 10V | 6.3mOhm @ 22.5A, 10V | 3.5V @ 500µA | 52 nC @ 10 V | ±20V | 3240 pF @ 10 V | - | 960mW (Ta), 132W (Tc) | 175°C | - | - | Surface Mount | 8-DSOP Advance |
