Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | RoHs | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LQW15AN33NG8ZDFIXED IND 33NH 620MA 0.336OHM SM |
124,077 |
|
Datasheet |
 |
LQW15 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Non-Magnetic | 33 nH | ±2% | 620 mA | - | Unshielded | 336mOhm Max | 30 @ 250MHz | 3.6GHz | AEC-Q200 | -55°C ~ 125°C | 100 MHz | - | Surface Mount | - | 0.039" L x 0.024" W (1.00mm x 0.60mm) | 0.024" (0.60mm) |
|
|
LQW15AN20NG8ZDFIXED IND 20NH 800MA 0.186OHM SM |
148,313 |
|
Datasheet |
|
LQW15 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Non-Magnetic | 20 nH | ±2% | 800 mA | - | Unshielded | 186mOhm Max | 30 @ 250MHz | 4.5GHz | AEC-Q200 | -55°C ~ 125°C | 100 MHz | - | Surface Mount | - | 0.039" L x 0.024" W (1.00mm x 0.60mm) | 0.024" (0.60mm) |
|
|
LQW15AN6N8G8ZDFIXED IND 6.8NH 1.45A 0.068OHM |
169,334 |
|
Datasheet |
|
LQW15 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Non-Magnetic | 6.8 nH | ±2% | 1.45 A | - | Unshielded | 68mOhm Max | 30 @ 250MHz | 7GHz | AEC-Q200 | -55°C ~ 125°C | 100 MHz | - | Surface Mount | - | 0.039" L x 0.024" W (1.00mm x 0.60mm) | 0.024" (0.60mm) |
|
|
LQW15AN3N9B8ZDFIXED IND 3.9NH 1.95A 0.03OHM SM |
101,727 |
|
Datasheet |
|
LQW15 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Non-Magnetic | 3.9 nH | ±0.1nH | 1.95 A | - | Unshielded | 30mOhm Max | 35 @ 250MHz | 10GHz | AEC-Q200 | -55°C ~ 125°C | 100 MHz | - | Surface Mount | - | 0.039" L x 0.024" W (1.00mm x 0.60mm) | 0.024" (0.60mm) |
|
NLCV25T-220K-PFFIXED IND 22UH 160MA 3.64OHM SMD |
100,638 |
|
Datasheet |
|
NLCV-PF | 1008 (2520 Metric) | Tape & Reel (TR) | Last Time Buy | Drum Core, Wirewound | Ferrite | 22 µH | ±10% | 160 mA | - | Unshielded | 3.64Ohm Max | 30 @ 2.52MHz | 18MHz | - | -40°C ~ 105°C | 2.52 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.075" (1.90mm) |
|
|
LQW15AN10NG8ZDFIXED IND 10NH 1.4A 0.081OHM SMD |
198,011 |
|
Datasheet |
|
LQW15 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Non-Magnetic | 10 nH | ±2% | 1.4 A | - | Unshielded | 81mOhm Max | 31 @ 250MHz | 6GHz | AEC-Q200 | -55°C ~ 125°C | 100 MHz | - | Surface Mount | - | 0.039" L x 0.024" W (1.00mm x 0.60mm) | 0.024" (0.60mm) |
|
|
LQW15AN7N5G8ZDFIXED IND 7.5NH 1.7A 0.05OHM SMD |
188,138 |
|
Datasheet |
|
LQW15 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Non-Magnetic | 7.5 nH | ±2% | 1.7 A | - | Unshielded | 50mOhm Max | 35 @ 250MHz | 7GHz | AEC-Q200 | -55°C ~ 125°C | 100 MHz | - | Surface Mount | - | 0.039" L x 0.024" W (1.00mm x 0.60mm) | 0.024" (0.60mm) |
|
LQM21FN4R7M80LFIXED IND 4.7UH 120MA 234MOHM SM |
146,657 |
|
Datasheet |
|
LQM21 | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 4.7 µH | ±20% | 120 mA | 120mA | Shielded | 234mOhm Max | - | 25MHz | - | -55°C ~ 125°C | 1 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.041" (1.05mm) |
|

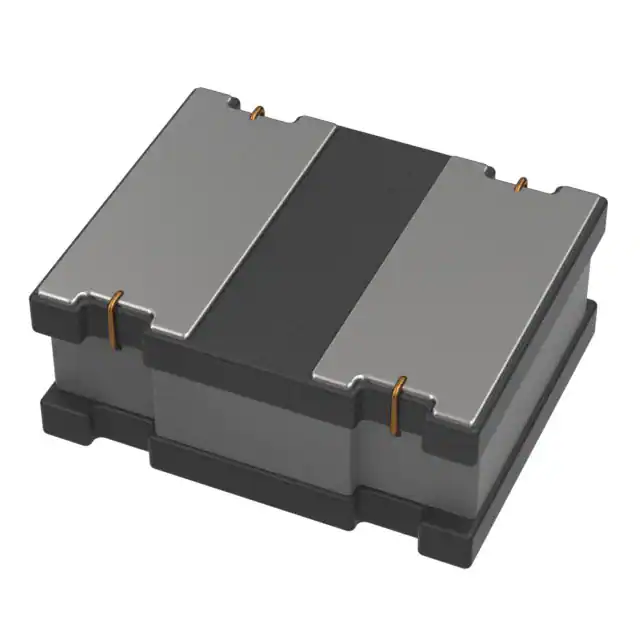

SDEM25201B-100MSFIXED IND 10UH 900MA 0.45OHM SMD |
168,870 |
|
Datasheet |
|
SDEM25201B | 1008 (2520 Metric) | Tape & Reel (TR) | Active | - | Metal | 10 µH | ±20% | 900 mA | 1A | Shielded | 450mOhm Max | - | - | - | -55°C ~ 125°C | 1 MHz | - | Surface Mount | 2520 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.047" (1.20mm) |
|
|
LQW15AN43NG8ZDFIXED IND 43NH 515MA 0.516OHM SM |
104,380 |
|
Datasheet |
|
LQW15 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Non-Magnetic | 43 nH | ±2% | 515 mA | - | Unshielded | 516mOhm Max | 30 @ 250MHz | 3.4GHz | AEC-Q200 | -55°C ~ 125°C | 100 MHz | - | Surface Mount | - | 0.039" L x 0.024" W (1.00mm x 0.60mm) | 0.024" (0.60mm) |
|
|
LQW15AN6N2G8ZDFIXED IND 6.2NH 1.6A 0.056OHM SM |
115,293 |
|
Datasheet |
|
LQW15 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Non-Magnetic | 6.2 nH | ±2% | 1.6 A | - | Unshielded | 56mOhm Max | 33 @ 250MHz | 8GHz | AEC-Q200 | -55°C ~ 125°C | 100 MHz | - | Surface Mount | - | 0.039" L x 0.024" W (1.00mm x 0.60mm) | 0.024" (0.60mm) |
|
|
LQW15AN13NG8ZDFIXED IND 13NH 1.24A 0.093OHM SM |
163,326 |
|
Datasheet |
|
LQW15 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Non-Magnetic | 13 nH | ±2% | 1.24 A | - | Unshielded | 93mOhm Max | 30 @ 250MHz | 5.2GHz | AEC-Q200 | -55°C ~ 125°C | 100 MHz | - | Surface Mount | - | 0.039" L x 0.024" W (1.00mm x 0.60mm) | 0.024" (0.60mm) |
|

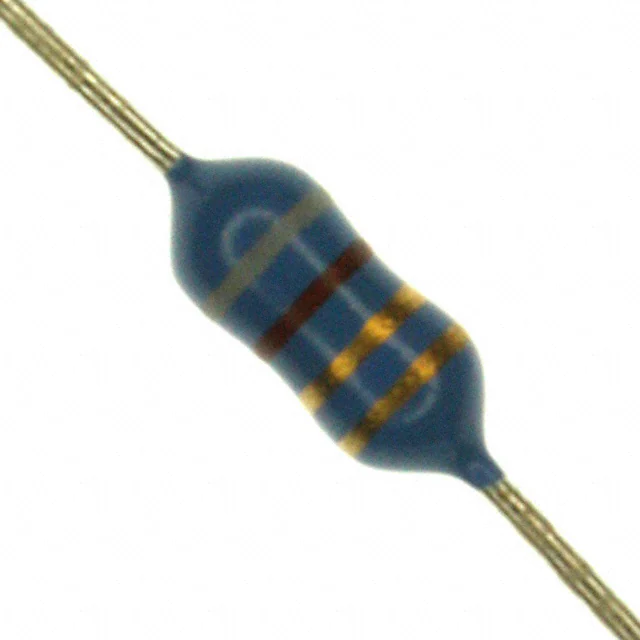

78F8R2J-RCFIXED IND 8.2UH 425MA 550MOHM TH |
170,748 |
|
Datasheet |
|
78F | Axial | Bulk | Active | Drum Core, Wirewound | Ferrite | 8.2 µH | ±5% | 425 mA | - | Unshielded | 550mOhm Max | 40 @ 7.9MHz | 20MHz | - | -55°C ~ 105°C | 7.9 MHz | - | Through Hole | - | 0.110" Dia x 0.280" L (2.79mm x 7.11mm) | - |
|
LQG18HN82NJ00DFIXED IND 82NH 350MA 0.85OHM SMD |
163,760 |
|
Datasheet |
|
LQG18 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Multilayer | Air | 82 nH | ±5% | 350 mA | - | Unshielded | 850mOhm Max | 12 @ 100MHz | 900MHz | - | -40°C ~ 85°C | 100 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.037" (0.95mm) |
|
|
LQW15AN3N9G8ZDFIXED IND 3.9NH 1.95A 0.03OHM SM |
106,558 |
|
Datasheet |
|
LQW15 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Non-Magnetic | 3.9 nH | ±2% | 1.95 A | - | Unshielded | 30mOhm Max | 35 @ 250MHz | 10GHz | AEC-Q200 | -55°C ~ 125°C | 100 MHz | - | Surface Mount | - | 0.039" L x 0.024" W (1.00mm x 0.60mm) | 0.024" (0.60mm) |
|
|
LQW15AN27NG8ZDFIXED IND 27NH 680MA 0.288OHM SM |
141,513 |
|
Datasheet |
|
LQW15 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Non-Magnetic | 27 nH | ±2% | 680 mA | - | Unshielded | 288mOhm Max | 30 @ 250MHz | 4GHz | AEC-Q200 | -55°C ~ 125°C | 100 MHz | - | Surface Mount | - | 0.039" L x 0.024" W (1.00mm x 0.60mm) | 0.024" (0.60mm) |
|
|
LQW15AN22NG8ZDFIXED IND 22NH 780MA 0.202OHM SM |
187,891 |
|
Datasheet |
|
LQW15 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Non-Magnetic | 22 nH | ±2% | 780 mA | - | Unshielded | 202mOhm Max | 30 @ 250MHz | 4.5GHz | AEC-Q200 | -55°C ~ 125°C | 100 MHz | - | Surface Mount | - | 0.039" L x 0.024" W (1.00mm x 0.60mm) | 0.024" (0.60mm) |
|
|
LQW15AN4N7B8ZDFIXED IND 4.7NH 1.2A 0.071OHM SM |
114,912 |
|
Datasheet |
|
LQW15 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Non-Magnetic | 4.7 nH | ±0.1nH | 1.2 A | - | Unshielded | 71mOhm Max | 31 @ 250MHz | 8GHz | AEC-Q200 | -55°C ~ 125°C | 100 MHz | - | Surface Mount | - | 0.039" L x 0.024" W (1.00mm x 0.60mm) | 0.024" (0.60mm) |
|
|
LQW15AN4N4B8ZDFIXED IND 4.4NH 1.6A 0.052OHM SM |
110,890 |
|
Datasheet |
|
LQW15 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Non-Magnetic | 4.4 nH | ±0.1nH | 1.6 A | - | Unshielded | 52mOhm Max | 34 @ 250MHz | 9.6GHz | AEC-Q200 | -55°C ~ 125°C | 100 MHz | - | Surface Mount | - | 0.039" L x 0.024" W (1.00mm x 0.60mm) | 0.024" (0.60mm) |
|
|
LQW15AN3N3G8ZDFIXED IND 3.3NH 2A 0.03OHM SMD |
109,716 |
|
Datasheet |
|
LQW15 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Non-Magnetic | 3.3 nH | ±2% | 2 A | - | Unshielded | 30mOhm Max | 30 @ 250MHz | 14GHz | AEC-Q200 | -55°C ~ 125°C | 100 MHz | - | Surface Mount | - | 0.039" L x 0.024" W (1.00mm x 0.60mm) | 0.024" (0.60mm) |
