Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | RoHs | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

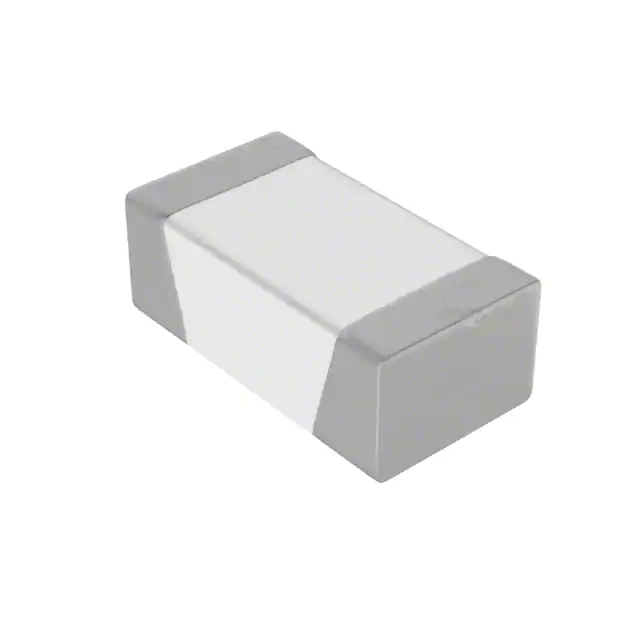

L0201R82AHSTRFIXED INDUCTOR KYOCERA AVX |
139,241 |
|
Datasheet |
 |
Accu-L® | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Thin Film | - | 820 pH | ±0.05nH | 400 mA | - | Unshielded | 200mOhm | 8 @ 450MHz | 28GHz | - | -55°C ~ 125°C | 450 MHz | - | Surface Mount | 0201 | 0.024" L x 0.013" W (0.60mm x 0.33mm) | 0.011" (0.28mm) |
|

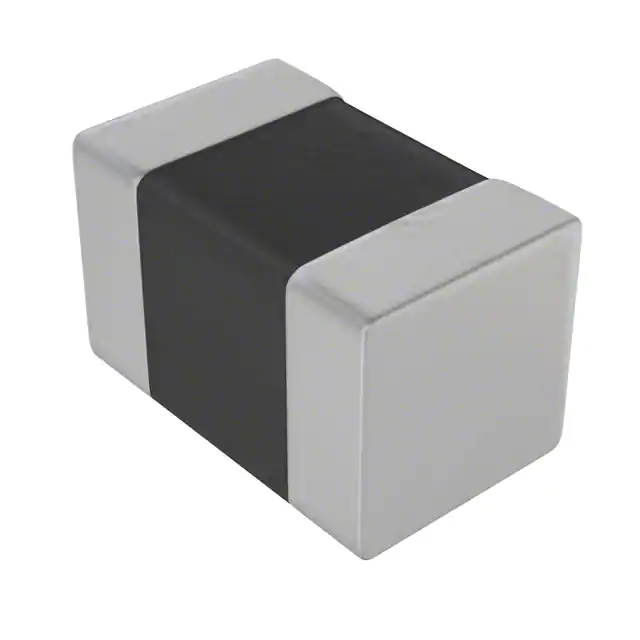

L08054R7CESTRFIXED IND 4.7NH 750MA 100MOHM SM KYOCERA AVX |
110,926 |
|
Datasheet |
|
Accu-L® | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Thin Film | Non-Magnetic | 4.7 nH | ±0.2nH | 750 mA | - | Unshielded | 100mOhm Max | 43 @ 450MHz | 5.5GHz | - | -55°C ~ 125°C | 450 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.083" L x 0.059" W (2.11mm x 1.50mm) | 0.041" (1.04mm) |
|

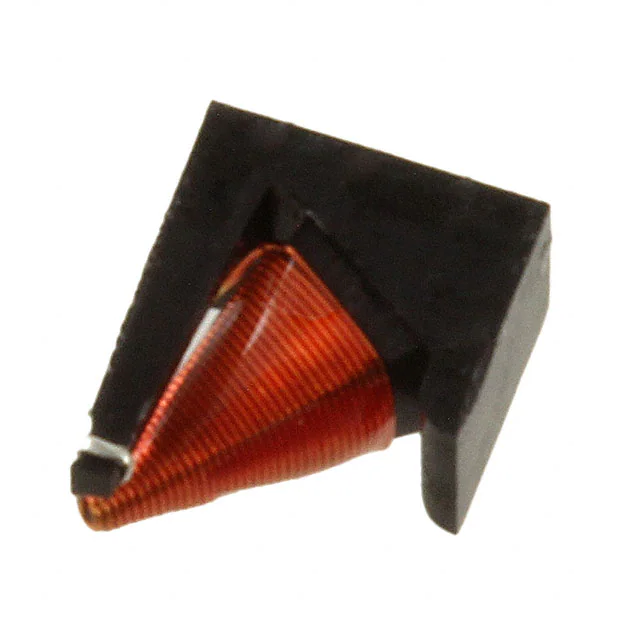

506WLSM0R70KT619TFIXED IND 700NH 619MA 320MOHM SM KYOCERA AVX |
194,514 |
|
Datasheet |
|
506WLS | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 700 nH | ±10% | 619 mA | - | Unshielded | 320mOhm | - | - | - | -55°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.127" L x 0.080" W (3.23mm x 2.03mm) | 0.105" (2.67mm) |
|
|
506WLSM1R10KT438TFIXED IND 1.1UH 438MA 640MOHM SM KYOCERA AVX |
179,004 |
|
Datasheet |
|
506WLS | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 1.1 µH | ±10% | 438 mA | - | Unshielded | 640mOhm | - | - | - | -55°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.127" L x 0.080" W (3.23mm x 2.03mm) | 0.105" (2.67mm) |
|
LCCI0402B0N6GTARFIXED IND 0.6NH 1A 80 MOHM SMD KYOCERA AVX |
167,476 |
|
Datasheet |
|
LCCI | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | 0.6 nH | ±0.1nH | 1 A | - | Unshielded | 80mOhm Max | 8 @ 100MHz | 10GHz | - | -40°C ~ 85°C | 100 MHz | - | Surface Mount | 0402 | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.024" (0.60mm) |
|

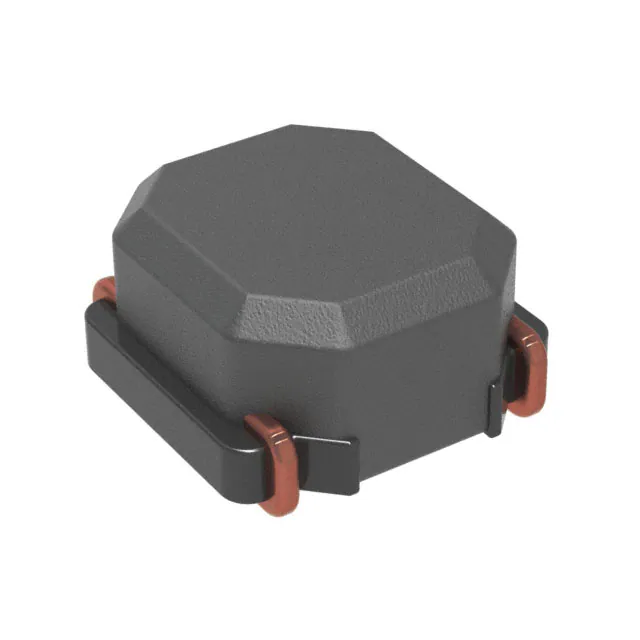

LMLP03B3M100CTARFIXED IND 10UH 710MA 230MOHM SMD KYOCERA AVX |
110,838 |
|
Datasheet |
|
LMLP | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 10 µH | ±20% | 710 mA | 700mA | Shielded | 230mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.059" (1.50mm) |
|
L0201R56AHSTR\500FIXED IND 0.56NH 500MA 100 MOHM KYOCERA AVX |
138,664 |
|
Datasheet |
|
Accu-L® | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Thin Film | Non-Magnetic | 0.56 nH | ±0.05nH | 500 mA | - | Unshielded | 100mOhm Max | 9 @ 450MHz | 31GHz | - | -55°C ~ 125°C | 450 MHz | - | Surface Mount | 0201 (0603 Metric) | 0.024" L x 0.012" W (0.60mm x 0.30mm) | 0.011" (0.28mm) |
|
|
L0201R82AHSTR\500FIXED IND 0.82NH 400MA 200 MOHM KYOCERA AVX |
135,080 |
|
Datasheet |
|
Accu-L® | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Thin Film | Non-Magnetic | 0.82 nH | ±0.05nH | 400 mA | - | Unshielded | 200mOhm Max | 8 @ 450MHz | 28GHz | - | -55°C ~ 125°C | 450 MHz | - | Surface Mount | 0201 (0603 Metric) | 0.024" L x 0.012" W (0.60mm x 0.30mm) | 0.011" (0.28mm) |
|
|
L0201R68AHSTR\500FIXED IND 0.68NH 500MA 200 MOHM KYOCERA AVX |
166,606 |
|
Datasheet |
|
Accu-L® | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Thin Film | Non-Magnetic | 0.68 nH | ±0.05nH | 500 mA | - | Unshielded | 200mOhm Max | 8 @ 450MHz | 30GHz | - | -55°C ~ 125°C | 450 MHz | - | Surface Mount | 0201 (0603 Metric) | 0.024" L x 0.012" W (0.60mm x 0.30mm) | 0.011" (0.28mm) |
|
|
L02013R3BHSTRFIXED INDUCTOR KYOCERA AVX |
198,953 |
|
Datasheet |
|
Accu-L® | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Thin Film | Non-Magnetic | 3.3 nH | ±0.1nH | 150 mA | - | Unshielded | 1Ohm Max | 7 @ 450MHz | 13GHz | - | -55°C ~ 125°C | 450 MHz | - | Surface Mount | 0201 (0603 Metric) | 0.024" L x 0.013" W (0.60mm x 0.33mm) | 0.011" (0.28mm) |
