Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | RoHs | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LQW18AN30NG8ZDFIXED IND 30NH 1.1A 0.12OHM SMD |
188,234 |
|
Datasheet |
 |
LQW18 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Non-Magnetic | 30 nH | ±2% | 1.1 A | - | Unshielded | 120mOhm Max | 40 @ 250MHz | 2.88GHz | AEC-Q200 | -55°C ~ 125°C | 100 MHz | - | Surface Mount | - | 0.065" L x 0.039" W (1.65mm x 0.99mm) | 0.039" (1.00mm) |
|
LQM18DH470M70LFIXED IND 47UH 180MA POWRTRN |
137,280 |
|
Datasheet |
|
LQM18 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 47 µH | ±20% | 180 mA | 20mA | Shielded | 3.32Ohm Max | - | 10MHz | AEC-Q200 | -55°C ~ 150°C | 1 MHz | - | Surface Mount | 0603 | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.037" (0.95mm) |
|
LQW18CNR56J0HDINDUCTOR FIXED 560NH 0603 |
121,703 |
|
Datasheet |
|
LQW18 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 560 nH | ±5% | 450 mA | - | Unshielded | 480mOhm Max | - | 540MHz | AEC-Q200 | -40°C ~ 125°C | 10 MHz | - | Surface Mount | 0603 | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.037" (0.95mm) |
|
MLF2012DR22JTD25FIXED IND 220NH 250MA 300MOHM SM |
196,673 |
|
Datasheet |
|
MLF | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 220 nH | ±5% | 250 mA | - | Shielded | 300mOhm Max | 20 @ 25MHz | 250MHz | AEC-Q200 | -55°C ~ 125°C | 25 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.041" (1.05mm) |
.jpg)
|
VLS201612HBX-2R2M-1FIXED IND 2.2UH 1.85A 137MOHM SM |
118,254 |
|
Datasheet |
|
VLS-HBX-1 | 0806 (2016 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 2.2 µH | ±20% | 1.85 A | 1.67A | Shielded | 137mOhm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | 0806 (2016 Metric) | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.047" (1.20mm) |
-BR-Series.jpg)
|
BRC2016T220MFIXED IND 22UH 310MA 1 OHM SMD |
101,251 |
|
Datasheet |
|
BR, C Type | 0806 (2016 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 22 µH | ±20% | 310 mA | 310mA | Unshielded | 1Ohm Max | - | 24MHz | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | 0806 (2016 Metric) | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.071" (1.80mm) |
|
|
LQM21DN220M70LEMC |
151,497 |
|
Datasheet |
|
LQM21 | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 22 µH | ±20% | 220 mA | 100mA | Shielded | 1.625Ohm Max | - | 19MHz | - | -55°C ~ 125°C | 1 MHz | - | Surface Mount | 0805 | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.057" (1.45mm) |
|
LSQPA322525T101MRFIXED IND 100UH 340MA 1.82OHM SM |
153,731 |
|
Datasheet |
|
LSQP | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 100 µH | ±20% | 340 mA | 270mA | Unshielded | 1.82Ohm Max | - | 6MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.106" (2.70mm) |
.jpg)
|
LQG15WH0N9B02DFIXED IND 0.9NH 1.2A 0.03OHM SMD |
114,164 |
|
Datasheet |
|
LQG15 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | - | 0.9 nH | ±0.1nH | 1.2 A | - | Unshielded | 30mOhm Max | - | 15GHz | AEC-Q200 | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0402 | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.022" (0.55mm) |
-1,45mm.jpg)
|
CB2012T100KRVFIXED IND 10UH 300MA 650MOHM SMD |
109,628 |
|
Datasheet |
|
CB | 0805 (2012 Metric) | Tape & Reel (TR) | Not For New Designs | Drum Core, Wirewound | Ferrite | 10 µH | ±10% | 300 mA | 200mA | Unshielded | 650mOhm Max | - | 32MHz | - | -40°C ~ 105°C | 2.52 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.057" (1.45mm) |
|
NLCV32T-1R0M-EFRDFIXED IND 1UH 1.7A 66 MOHM SMD |
105,647 |
|
Datasheet |
|
NLCV-EFD | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1 µH | ±20% | 1.7 A | - | Unshielded | 66mOhm Max | 15 @ 7.96MHz | 100MHz | AEC-Q200 | -40°C ~ 125°C | 7.96 MHz | - | Surface Mount | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.094" (2.40mm) |
|
B78108E1221M009FIXED IND 220NH 5.9A 19 MOHM TH |
199,353 |
|
Datasheet |
|
B78108E | Axial | Cut Tape (CT) | Active | Drum Core, Wirewound | Ferrite | 220 nH | ±20% | 5.9 A | 12.2A | Unshielded | 19mOhm Max | 55 @ 7.96MHz | 610MHz | - | -55°C ~ 125°C | 1 MHz | - | Through Hole | - | 0.157" Dia x 0.374" L (4.00mm x 9.50mm) | - |
-BR-Series.jpg)
|
BRL2012T2R2MFIXED IND 2.2UH 550MA 390MOHM SM |
179,820 |
|
Datasheet |
|
BR, L Type | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2.2 µH | ±20% | 550 mA | 600mA | Unshielded | 390mOhm Max | - | 200MHz | - | -40°C ~ 105°C | 7.96 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.039" (1.00mm) |
|
LQM21DN100N00DFIXED IND 10UH 15MA 500 MOHM SMD |
101,041 |
|
Datasheet |
|
LQM21 | 0805 (2012 Metric) | Tape & Reel (TR) | Last Time Buy | Multilayer | Ferrite | 10 µH | ±30% | 15 mA | - | Shielded | 500mOhm Max | - | 24MHz | - | -40°C ~ 85°C | 1 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.041" (1.05mm) |
|
|
LQM21DN470M70LFIXED IND 47UH 200MA 0805 |
165,748 |
|
Datasheet |
|
LQM21 | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 47 µH | ±20% | 200 mA | 50mA | Shielded | 2.99Ohm Max | - | 12MHz | - | -55°C ~ 125°C | 1 MHz | - | Surface Mount | 0805 | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.057" (1.45mm) |
|
VLS3015CX-470M-HFIXED IND 47UH 480MA 1.392OHM SM |
125,614 |
|
Datasheet |
|
VLS-CX-H | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 47 µH | ±20% | 480 mA | 290mA | Shielded | 1.392Ohm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 3015 | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.059" (1.50mm) |
|
|
LQM21NNR10K10DFIXED IND 100NH 250MA 260MOHM SM |
130,828 |
|
Datasheet |
|
LQM21 | 0805 (2012 Metric) | Tape & Reel (TR) | Last Time Buy | Multilayer | Ferrite | 100 nH | ±10% | 250 mA | - | Shielded | 260mOhm Max | 20 @ 25MHz | 340MHz | - | -40°C ~ 85°C | 25 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.057" (1.45mm) |
|
|
LQM21NNR56K10DFIXED IND 560NH 150MA 630MOHM SM |
177,299 |
|
Datasheet |
|
LQM21 | 0805 (2012 Metric) | Tape & Reel (TR) | Last Time Buy | Multilayer | Ferrite | 560 nH | ±10% | 150 mA | - | Shielded | 630mOhm Max | 25 @ 25MHz | 140MHz | - | -40°C ~ 85°C | 25 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.041" (1.05mm) |
|

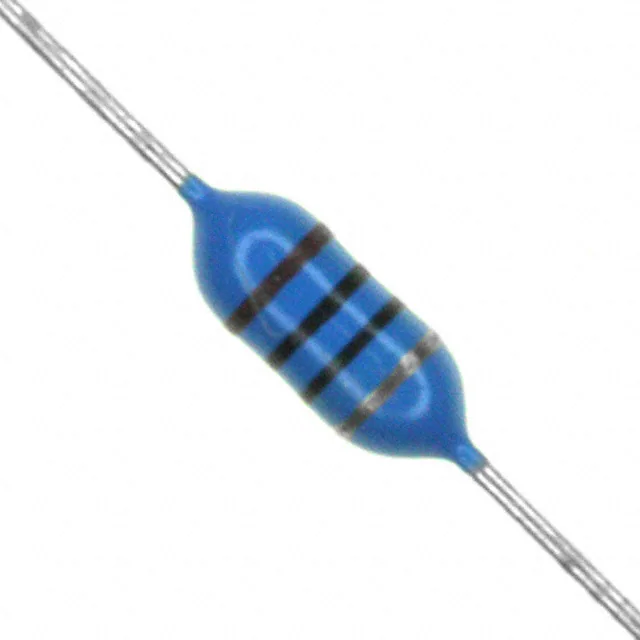

78F100J-TR-RCFIXED IND 10UH 370MA 750 MOHM TH |
194,009 |
|
Datasheet |
|
78F | Axial | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±5% | 370 mA | - | Unshielded | 750mOhm Max | 40 @ 7.9MHz | 18MHz | - | -55°C ~ 105°C | 7.9 MHz | - | Through Hole | - | 0.110" Dia x 0.280" L (2.80mm x 7.11mm) | - |
|
|
LQM21NN1R0K10DFIXED IND 1UH 50MA 400 MOHM SMD |
138,145 |
|
Datasheet |
|
LQM21 | 0805 (2012 Metric) | Tape & Reel (TR) | Last Time Buy | Multilayer | Ferrite | 1 µH | ±10% | 50 mA | - | Shielded | 400mOhm Max | 45 @ 10MHz | 107MHz | - | -40°C ~ 85°C | 10 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.041" (1.05mm) |
