Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | RoHs | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SRN4018-1R0YFIXED IND 1UH 3.7A 23 MOHM SMD |
102,417 |
|
Datasheet |
 |
SRN4018 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1 µH | ±30% | 3.7 A | 4.2A | Shielded | 23mOhm Max | 9 @ 7.96MHz | 90MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.071" (1.80mm) |
|
|
SRN4018-4R7MFIXED IND 4.7UH 1.9A 84 MOHM SMD |
127,046 |
|
Datasheet |
|
SRN4018 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 4.7 µH | ±20% | 1.9 A | 2A | Shielded | 84mOhm Max | 9 @ 7.96MHz | 35MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.071" (1.80mm) |
|
|
SRN4018-330MFIXED IND 33UH 700MA 552MOHM SMD |
127,979 |
|
Datasheet |
|
SRN4018 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 33 µH | ±20% | 700 mA | 750mA | Shielded | 552mOhm Max | 11 @ 2.52MHz | 12MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.071" (1.80mm) |
|
LQW18CNR16J00DFIXED IND 160NH 1A 100 MOHM SMD |
158,758 |
|
Datasheet |
|
LQW18 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 160 nH | ±5% | 1 A | - | Unshielded | 100mOhm Max | - | 900MHz | - | -40°C ~ 85°C | 10 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.037" (0.95mm) |
|
ASPI-6045S-220M-TFIXED IND 22UH 1.8A 89 MOHM SMD |
109,849 |
|
Datasheet |
|
ASPI-6045S | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 22 µH | ±20% | 1.8 A | 2.05A | Shielded | 89mOhm | - | 10MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.177" (4.50mm) |
|
TFM201610ALM-1R0MTAAFIXED IND 1UH 3.1A 56 MOHM SMD |
172,975 |
|
Datasheet |
|
TFM-ALM | 0806 (2016 Metric) | Tape & Reel (TR) | Active | Thin Film | Metal | 1 µH | ±20% | 3.1 A | 4.3A | Shielded | 56mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 0806 (2016 Metric) | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.039" (1.00mm) |
|

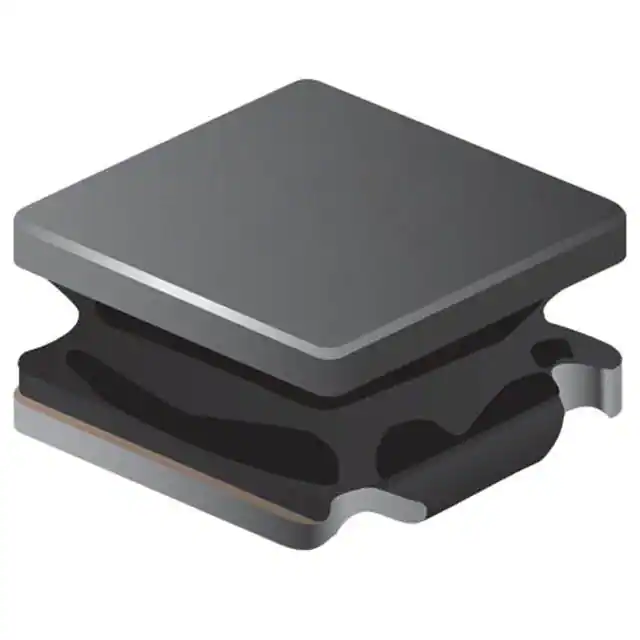

SRN3015-2R2MFIXED IND 2.2UH 1.8A 72 MOHM SMD |
135,327 |
|
Datasheet |
|
SRN3015 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2.2 µH | ±20% | 1.8 A | 1.65A | Shielded | 72mOhm Max | 10 @ 7.96MHz | 90MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.059" (1.50mm) |
|
|
SRN3015-220MFIXED IND 22UH 600MA 622MOHM SMD |
157,711 |
|
Datasheet |
|
SRN3015 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 22 µH | ±20% | 600 mA | 580mA | Shielded | 622mOhm Max | 17 @ 2.52MHz | 28MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.059" (1.50mm) |
|
|
SRN3015-1R0YFIXED IND 1UH 2.35A 48 MOHM SMD |
182,575 |
|
Datasheet |
|
SRN3015 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1 µH | ±30% | 2.35 A | 2.35A | Shielded | 48mOhm Max | 10 @ 7.96MHz | 145MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.059" (1.50mm) |
|
|
SRN3015-100MFIXED IND 10UH 1A 276 MOHM SMD |
139,738 |
|
Datasheet |
|
SRN3015 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 1 A | 880mA | Shielded | 276mOhm Max | 10 @ 2.52MHz | 45MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.059" (1.50mm) |
|
|
LQW18CN33NJ00DFIXED IND 33NH 1.7A 35 MOHM SMD |
150,968 |
|
Datasheet |
|
LQW18 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 33 nH | ±5% | 1.7 A | - | Unshielded | 35mOhm Max | - | 1.8GHz | - | -40°C ~ 85°C | 10 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.037" (0.95mm) |
|
|
SRN3015-4R7MFIXED IND 4.7UH 1.4A 136MOHM SMD |
135,624 |
|
Datasheet |
|
SRN3015 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 4.7 µH | ±20% | 1.4 A | 1.2A | Shielded | 136mOhm Max | 10 @ 7.96MHz | 65MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.059" (1.50mm) |
|
|
SRN3015-6R8MFIXED IND 6.8UH 1.1A 211MOHM SMD |
125,216 |
|
Datasheet |
|
SRN3015 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 6.8 µH | ±20% | 1.1 A | 1.05A | Shielded | 211mOhm Max | 10 @ 7.96MHz | 50MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.059" (1.50mm) |
|

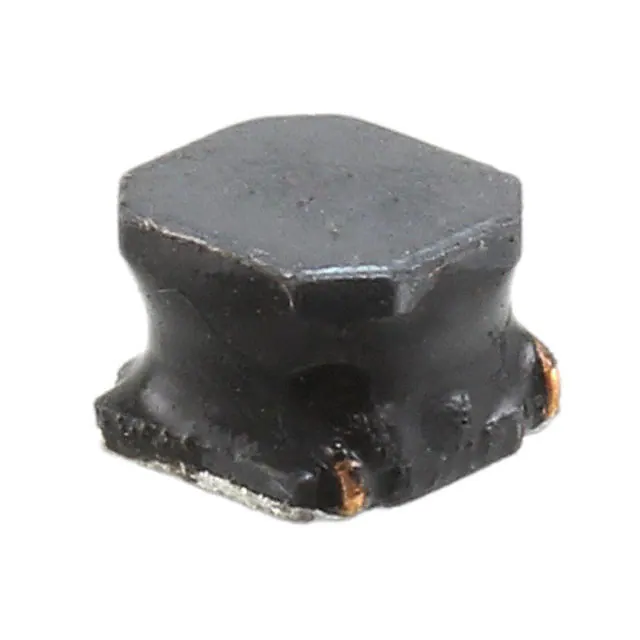

SRN5040-470MFIXED IND 47UH 900MA 324MOHM SMD |
119,208 |
|
Datasheet |
|
SRN5040 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 47 µH | ±20% | 900 mA | 1.1A | Shielded | 324mOhm Max | 15 @ 2.52MHz | 7MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.157" (4.00mm) |
|
NRS5030T4R7MMGJVFIXED IND 4.7UH 2.6A 45.5MOHM SM |
120,395 |
|
Datasheet |
|
NR, S Type | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 4.7 µH | ±20% | 2.6 A | 3.1A | Shielded | 45.5mOhm Max | - | 31MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.193" L x 0.193" W (4.90mm x 4.90mm) | 0.118" (3.00mm) |
|
VLS4012ET-2R2MFIXED IND 2.2UH 1.7A 81 MOHM SMD |
144,352 |
|
Datasheet |
|
VLS | Nonstandard | Tape & Reel (TR) | Not For New Designs | Drum Core, Wirewound | Ferrite | 2.2 µH | ±20% | 1.7 A | 1.7A | Shielded | 81mOhm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.047" (1.20mm) |
|
SRP2512-1R0MFIXED IND 1UH 3.4A 49 MOHM SMD |
160,572 |
|
Datasheet |
|
SRP2512 | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 1 µH | ±20% | 3.4 A | 3.4A | Shielded | 49mOhm Max | 39 @ 1MHz | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1008 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.047" (1.20mm) |
|

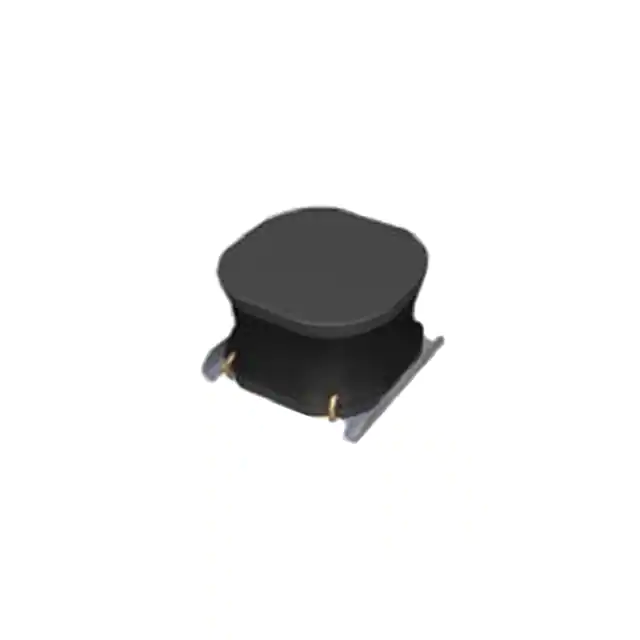

1255AY-4R7M=P3FIXED IND 4.7UH 4A 23 MOHM SMD |
169,803 |
|
Datasheet |
|
DG6045C | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 4.7 µH | ±20% | 4 A | 4.5A | Shielded | 23mOhm | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.248" L x 0.248" W (6.30mm x 6.30mm) | 0.177" (4.50mm) |
|
TFM201610GHM-1R0MTAAFIXED IND 1UH 3.1A 60 MOHM SMD |
167,299 |
|
Datasheet |
|
TFM-GHM | 0806 (2016 Metric) | Tape & Reel (TR) | Active | Thin Film | Metal | 1 µH | ±20% | 3.1 A | 3.6A | Shielded | 60mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 0806 (2016 Metric) | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.039" (1.00mm) |
|
TFM252012ALMA1R0MTAAFIXED IND 1UH 3.7A 42 MOHM SMD |
127,085 |
|
Datasheet |
|
TFM-ALMA | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Thin Film | Metal | 1 µH | ±20% | 3.7 A | 4.2A | Shielded | 42mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 1 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.047" (1.20mm) |
