Fixed Inductors

Mfr. Part #	Availability	Price	Quantity	Datasheet	Series	Package/Case	Packaging	Product Status	Type	Material - Core	Inductance	Tolerance	Current Rating (Amps)	Current - Saturation (Isat)	Shielding	DC Resistance (DCR)	Q @ Freq	Frequency - Self Resonant	Ratings	Operating Temperature	Inductance Frequency - Test	Features	Mounting Type	Supplier Device Package	Size / Dimension	Height - Seated (Max)
4922-49L FIXED IND 10MH 71MA 74 OHM SMD Delevan	164,797	-	RFQ	Datasheet	4922	Nonstandard	Tape & Reel (TR)	Active	Drum Core, Wirewound	Ferrite	10 mH	±15%	71 mA	71mA	Unshielded	74Ohm Max	-	-	-	-55°C ~ 125°C	1 kHz	-	Surface Mount	-	0.505" L x 0.240" W (12.82mm x 6.09mm)	0.230" (5.84mm)

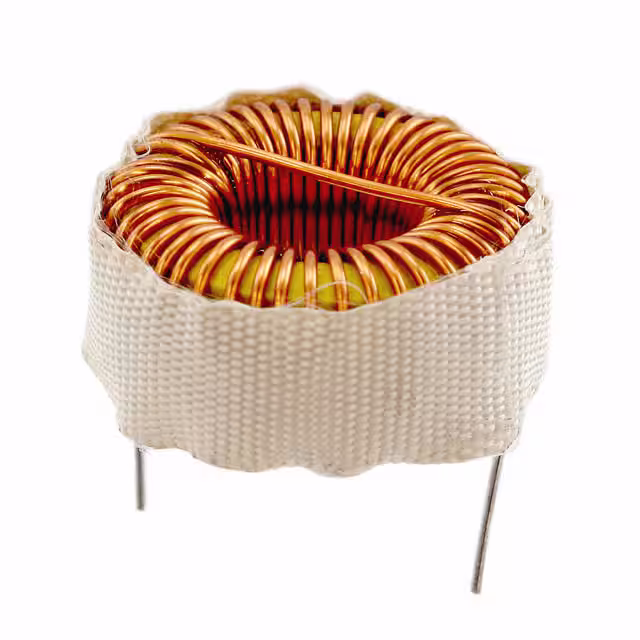

PE-92405NL FIXED IND 145UH 3A 87 MOHM TH Pulse Electronics	171,230	-	RFQ	Datasheet	-	Radial, Horizontal (Open)	Bulk	Obsolete	Toroidal	-	145 µH	±20%	3 A	-	Unshielded	87mOhm Max	-	-	-	-40°C ~ 130°C	20 kHz	-	Through Hole	-	1.050" Dia (26.67mm)	0.550" (13.97mm)
HCM1A1305-120-R FIXED IND 12UH 5.5A 24 MOHM SMD Eaton - Electronics Division	161,759	-	RFQ	Datasheet	HCM1A	Nonstandard	Tape & Reel (TR)	Active	-	Iron Powder	12 µH	±20%	5.5 A	9A	Shielded	24mOhm Max	-	-	AEC-Q200	-55°C ~ 155°C	100 kHz	-	Surface Mount	-	0.524" L x 0.480" W (13.30mm x 12.20mm)	0.197" (5.00mm)
HCM1A1305-7R8-R FIXED IND 7.8UH 7.6A 19.4MOHM SM Eaton - Electronics Division	195,104	-	RFQ	Datasheet	HCM1A	Nonstandard	Tape & Reel (TR)	Active	-	Iron Powder	7.8 µH	±20%	7.6 A	15A	Shielded	19.4mOhm Max	-	-	AEC-Q200	-55°C ~ 155°C	100 kHz	-	Surface Mount	-	0.524" L x 0.480" W (13.30mm x 12.20mm)	0.197" (5.00mm)
HCM1A1305-1R8-R FIXED IND 1.8UH 16A 4.6MOHM SMD Eaton - Electronics Division	190,241	-	RFQ	Datasheet	HCM1A	Nonstandard	Tape & Reel (TR)	Active	-	Iron Powder	1.8 µH	±20%	16 A	20A	Shielded	4.6mOhm Max	-	-	AEC-Q200	-55°C ~ 155°C	100 kHz	-	Surface Mount	-	0.524" L x 0.480" W (13.30mm x 12.20mm)	0.197" (5.00mm)
HCM1A1305-R56-R FIXED IND 560NH 28A 1.33MOHM SMD Eaton - Electronics Division	165,892	-	RFQ	Datasheet	HCM1A	Nonstandard	Tape & Reel (TR)	Active	-	Iron Powder	560 nH	±20%	28 A	36A	Shielded	1.33mOhm Max	-	-	AEC-Q200	-55°C ~ 155°C	100 kHz	-	Surface Mount	-	0.524" L x 0.480" W (13.30mm x 12.20mm)	0.197" (5.00mm)
HCM1A1305-R68-R FIXED IND 680NH 27A 1.33MOHM SMD Eaton - Electronics Division	158,739	-	RFQ	Datasheet	HCM1A	Nonstandard	Tape & Reel (TR)	Active	-	Iron Powder	680 nH	±20%	27 A	32A	Shielded	1.33mOhm Max	-	-	AEC-Q200	-55°C ~ 155°C	100 kHz	-	Surface Mount	-	0.524" L x 0.480" W (13.30mm x 12.20mm)	0.197" (5.00mm)
HCM1A1305-R82-R FIXED IND 820NH 26A 1.61MOHM SMD Eaton - Electronics Division	196,021	-	RFQ	Datasheet	HCM1A	Nonstandard	Tape & Reel (TR)	Active	-	Iron Powder	820 nH	±20%	26 A	26A	Shielded	1.61mOhm Max	-	-	AEC-Q200	-55°C ~ 155°C	100 kHz	-	Surface Mount	-	0.524" L x 0.480" W (13.30mm x 12.20mm)	0.197" (5.00mm)
HCM1A1305-6R0-R FIXED IND 6UH 8.1A 14.5 MOHM SMD Eaton - Electronics Division	103,885	-	RFQ	Datasheet	HCM1A	Nonstandard	Tape & Reel (TR)	Active	-	Iron Powder	6 µH	±20%	8.1 A	12.5A	Shielded	14.5mOhm Max	-	-	AEC-Q200	-55°C ~ 155°C	100 kHz	-	Surface Mount	-	0.524" L x 0.480" W (13.30mm x 12.20mm)	0.197" (5.00mm)
SC10102KT FIXED IND 1MH 76MA 40 OHM TH TE Connectivity Passive Product	131,363	-	RFQ	Datasheet	SC10, Sigma Inductors	Axial	Tape & Reel (TR)	Active	-	-	1 mH	±10%	76 mA	-	Unshielded	40Ohm Max	40 @ 790kHz	2.2MHz	-	-55°C ~ 100°C	790 kHz	-	Through Hole	-	0.165" Dia x 0.394" L (4.20mm x 10.00mm)	-
HM73-15R47LFTR13 FIXED IND 470NH 17A 1.55 MOHM TT Electronics/BI Magnetics	145,161	-	RFQ	Datasheet	HM73	Nonstandard	Cut Tape (CT)	Discontinued at Digi-Key	-	-	470 nH	±20%	17 A	35A	Shielded	1.55mOhm Max	-	-	-	-40°C ~ 155°C	100 kHz	-	Surface Mount	-	0.461" L x 0.413" W (11.70mm x 10.50mm)	0.157" (4.00mm)
IHLD3232HBER150M5A FIXED IND 15UH 4.2A 66.34MOHM SM Vishay Dale	131,716	-	RFQ	Datasheet	IHLD-5A	Nonstandard	Tape & Reel (TR)	Active	-	-	15 µH	±20%	4.2 A	3.5A	Shielded	66.34mOhm Max	-	10MHz	AEC-Q200	-55°C ~ 155°C	100 kHz	-	Surface Mount	-	0.384" L x 0.379" W (9.75mm x 9.63mm)	0.365" (9.27mm)
PA4320.153NLT FIXED IND 15UH 7A 22 MOHM SMD Pulse Electronics	123,096	-	RFQ	Datasheet	PA4320	Nonstandard	Tape & Reel (TR)	Active	Wirewound	-	15 µH	±20%	7 A	8.3A	Shielded	22mOhm Max	-	-	-	-40°C ~ 125°C	100 kHz	-	Surface Mount	-	0.472" L x 0.472" W (12.00mm x 12.00mm)	0.402" (10.20mm)
HCM1A1307-8R2-R FIXED IND 8.2UH 8.2A 13MOHM SMD Eaton - Electronics Division	120,332	-	RFQ	Datasheet	HCM1A	Nonstandard	Tape & Reel (TR)	Active	-	Iron Powder	8.2 µH	±20%	8.2 A	13A	Shielded	13mOhm Max	-	-	AEC-Q200	-55°C ~ 155°C	100 kHz	-	Surface Mount	-	0.539" L x 0.512" W (13.70mm x 13.00mm)	0.256" (6.50mm)
HCM1A1307-1R2-R FIXED IND 1.2UH 21.8A 2.12 MOHM Eaton - Electronics Division	132,375	-	RFQ	Datasheet	HCM1A	Nonstandard	Tape & Reel (TR)	Active	-	Iron Powder	1.2 µH	±20%	21.8 A	28A	Shielded	2.12mOhm Max	-	-	AEC-Q200	-55°C ~ 155°C	100 kHz	-	Surface Mount	-	0.539" L x 0.512" W (13.70mm x 13.00mm)	0.256" (6.50mm)
HCM1A1307-7R8-R FIXED IND 7.8UH 8.8A 11.5MOHM SM Eaton - Electronics Division	100,876	-	RFQ	Datasheet	HCM1A	Nonstandard	Tape & Reel (TR)	Active	-	Iron Powder	7.8 µH	±20%	8.8 A	16A	Shielded	11.5mOhm Max	-	-	AEC-Q200	-55°C ~ 155°C	100 kHz	-	Surface Mount	-	0.539" L x 0.512" W (13.70mm x 13.00mm)	0.256" (6.50mm)
XAL4040-153MEC FIXED IND 15UH 2.8A 120MOHM SM Coilcraft	107,258	-	RFQ	Datasheet	XAL4000	1616 (4040 Metric)	Tape & Reel (TR)	Active	Molded	Metal Composite	15 µH	±20%	2.8 A	2.9A	Shielded	120mOhm Max	-	20MHz	AEC-Q200	-40°C ~ 125°C	1 MHz	-	Surface Mount	1616	0.157" L x 0.157" W (4.00mm x 4.00mm)	0.161" (4.10mm)
XAL4040-103MEC FIXED IND 10UH 3.1A 92.4MOHM SM Coilcraft	133,660	-	RFQ	Datasheet	XAL4000	1616 (4040 Metric)	Tape & Reel (TR)	Active	Molded	Metal Composite	10 µH	±20%	3.1 A	3A	Shielded	92.4mOhm Max	-	24MHz	AEC-Q200	-40°C ~ 125°C	1 MHz	-	Surface Mount	1616	0.157" L x 0.157" W (4.00mm x 4.00mm)	0.161" (4.10mm)
XAL4040-822MEC FIXED IND 8.2UH 3.4A 66.9MOHM SM Coilcraft	146,529	-	RFQ	Datasheet	XAL4000	1616 (4040 Metric)	Tape & Reel (TR)	Active	Molded	Metal Composite	8.2 µH	±20%	3.4 A	4A	Shielded	66.9mOhm Max	-	27MHz	AEC-Q200	-40°C ~ 125°C	100 kHz	-	Surface Mount	1616	0.157" L x 0.157" W (4.00mm x 4.00mm)	0.161" (4.10mm)
MSS1048-223MLC FIXED IND 22UH 3.58A 50MOHM SM Coilcraft	131,661	-	RFQ	Datasheet	MSS1048	Nonstandard	Tape & Reel (TR)	Active	Drum Core	Ferrite	22 µH	±20%	3.58 A	3.28A	Shielded	50mOhm Max	-	12MHz	AEC-Q200	-40°C ~ 85°C	100 kHz	-	Surface Mount	-	0.402" L x 0.394" W (10.20mm x 10.00mm)	0.201" (5.10mm)

Total 147749 Record«Prev 1... 1543 1544 1545 154615471548 1549 1550...7388 Next»
