Fixed Inductors

Mfr. Part #	Availability	Price	Quantity	Datasheet	Series	Package/Case	Packaging	Product Status	Type	Material - Core	Inductance	Tolerance	Current Rating (Amps)	Current - Saturation (Isat)	Shielding	DC Resistance (DCR)	Q @ Freq	Frequency - Self Resonant	Ratings	Operating Temperature	Inductance Frequency - Test	Features	Mounting Type	Supplier Device Package	Size / Dimension	Height - Seated (Max)
XGL1313-222MED FIXED IND 2.2UH 45.1A 1.6MOHM SM Coilcraft	181,804	-	RFQ	Datasheet	XGL1313	2-SMD	Tape & Reel (TR)	Active	Molded	Metal Composite	2.2 µH	±20%	45.1 A	46A	Shielded	1.6mOhm Max	-	25MHz	AEC-Q200	-40°C ~ 125°C	1 MHz	-	Surface Mount	-	0.591" L x 0.528" W (15.00mm x 13.40mm)	0.512" (13.00mm)
XGL1313-822MED FIXED IND 8.2UH 28.7A 5.2MOHM SM Coilcraft	178,727	-	RFQ	Datasheet	XGL1313	2-SMD	Tape & Reel (TR)	Active	Molded	Metal Composite	8.2 µH	±20%	28.7 A	25A	Shielded	5.2mOhm Max	-	12MHz	AEC-Q200	-40°C ~ 125°C	1 MHz	-	Surface Mount	-	0.591" L x 0.528" W (15.00mm x 13.40mm)	0.512" (13.00mm)
XGL1313-223MED FIXED IND 22UH 17.2A 13.3MOHM SM Coilcraft	148,222	-	RFQ	Datasheet	XGL1313	2-SMD	Tape & Reel (TR)	Active	Molded	Metal Composite	22 µH	±20%	17.2 A	15.4A	Shielded	13.3mOhm Max	-	7.1MHz	AEC-Q200	-40°C ~ 125°C	1 MHz	-	Surface Mount	-	0.591" L x 0.528" W (15.00mm x 13.40mm)	0.512" (13.00mm)
XGL1313-682MED FIXED IND 6.8UH 31A 4.3MOHM SM Coilcraft	104,930	-	RFQ	Datasheet	XGL1313	2-SMD	Tape & Reel (TR)	Active	Molded	Metal Composite	6.8 µH	±20%	31 A	26.5A	Shielded	4.3mOhm Max	-	13MHz	AEC-Q200	-40°C ~ 125°C	1 MHz	-	Surface Mount	-	0.591" L x 0.528" W (15.00mm x 13.40mm)	0.512" (13.00mm)
XGL1313-333MED FIXED IND 33UH 12.6A 20.7MOHM SM Coilcraft	179,985	-	RFQ	Datasheet	XGL1313	2-SMD	Tape & Reel (TR)	Active	Molded	Metal Composite	33 µH	±20%	12.6 A	11.6A	Shielded	20.7mOhm Max	-	5.8MHz	AEC-Q200	-40°C ~ 125°C	1 MHz	-	Surface Mount	-	0.591" L x 0.528" W (15.00mm x 13.40mm)	0.512" (13.00mm)
XGL1313-332MED FIXED IND 3.3UH 39.7A 2.3MOHM SM Coilcraft	185,134	-	RFQ	Datasheet	XGL1313	2-SMD	Tape & Reel (TR)	Active	Molded	Metal Composite	3.3 µH	±20%	39.7 A	40A	Shielded	2.3mOhm Max	-	20MHz	AEC-Q200	-40°C ~ 125°C	1 MHz	-	Surface Mount	-	0.591" L x 0.528" W (15.00mm x 13.40mm)	0.512" (13.00mm)
XGL1313-103MED FIXED IND 10UH 26A 6.3MOHM SM Coilcraft	185,715	-	RFQ	Datasheet	XGL1313	2-SMD	Tape & Reel (TR)	Active	Molded	Metal Composite	10 µH	±20%	26 A	23A	Shielded	6.3mOhm Max	-	10MHz	AEC-Q200	-40°C ~ 125°C	1 MHz	-	Surface Mount	-	0.591" L x 0.528" W (15.00mm x 13.40mm)	0.512" (13.00mm)
XGL1313-472MED FIXED IND 4.7UH 36.7A 2.8MOHM SM Coilcraft	173,170	-	RFQ	Datasheet	XGL1313	2-SMD	Tape & Reel (TR)	Active	Molded	Metal Composite	4.7 µH	±20%	36.7 A	35A	Shielded	2.8mOhm Max	-	16MHz	AEC-Q200	-40°C ~ 125°C	1 MHz	-	Surface Mount	-	0.591" L x 0.528" W (15.00mm x 13.40mm)	0.512" (13.00mm)
XGL1313-473MED FIXED IND 47UH 9.1A 30MOHM SM Coilcraft	108,708	-	RFQ	Datasheet	XGL1313	2-SMD	Tape & Reel (TR)	Active	Molded	Metal Composite	47 µH	±20%	9.1 A	9.7A	Shielded	30mOhm Max	-	5MHz	AEC-Q200	-40°C ~ 125°C	1 MHz	-	Surface Mount	-	0.591" L x 0.528" W (15.00mm x 13.40mm)	0.512" (13.00mm)
MHW1807SG4R0K FIXED IND 4UH 18A 3 MOHM SMD Mentech Technology USA Inc.	124,029	-	RFQ	Datasheet	-	Nonstandard	Tape & Reel (TR)	Active	Planar	-	4 µH	±10%	18 A	18A	-	3mOhm Max	-	-	-	-40°C ~ 125°C	-	-	Surface Mount	-	0.800" L x 0.748" W (20.30mm x 19.00mm)	0.335" (8.50mm)
MHW2009SG7R0KA FIXED IND 7UH 7A 7 MOHM SMD Mentech Technology USA Inc.	194,025	-	RFQ	Datasheet	-	Nonstandard	Tape & Reel (TR)	Active	Planar	-	7 µH	±10%	7 A	18A	-	7mOhm Max	-	-	-	-40°C ~ 125°C	-	-	Surface Mount	-	0.858" L x 0.835" W (21.80mm x 21.20mm)	0.323" (8.20mm)
MHW1807SG2R0KA FIXED IND 2UH 25A 3 MOHM SMD Mentech Technology USA Inc.	198,032	-	RFQ	Datasheet	-	Nonstandard	Tape & Reel (TR)	Active	Planar	-	2 µH	±10%	25 A	32A	-	3mOhm Max	-	-	-	-40°C ~ 125°C	-	-	Surface Mount	-	0.800" L x 0.748" W (20.30mm x 19.00mm)	0.335" (8.50mm)
ER1025-06KS FIXED IND 270NH 960MA 160MOHM TH Delevan	108,087	-	RFQ	Datasheet	Military, MIL-PRF-39010/08, ER1025	Axial	Tape & Reel (TR)	Active	-	Phenolic	270 nH	±10%	960 mA	-	Unshielded	160mOhm Max	33 @ 25MHz	430MHz	-	-55°C ~ 125°C	25 MHz	-	Through Hole	-	0.095" Dia x 0.250" L (2.41mm x 6.35mm)	-
CTHR5F-100K 10UH FILTER INDUCTOR Central Technologies	146,340	-	RFQ	Datasheet	CTHRF	Radial, Horizontal Cylinder	Bulk	Active	Wirewound	-	10 µH	±10%	12 A	19A	Unshielded	15mOhm Max	-	-	-	-55°C ~ 125°C	1 kHz	-	Through Hole	Radial	0.625" Dia (15.88mm)	1.125" (28.58mm)

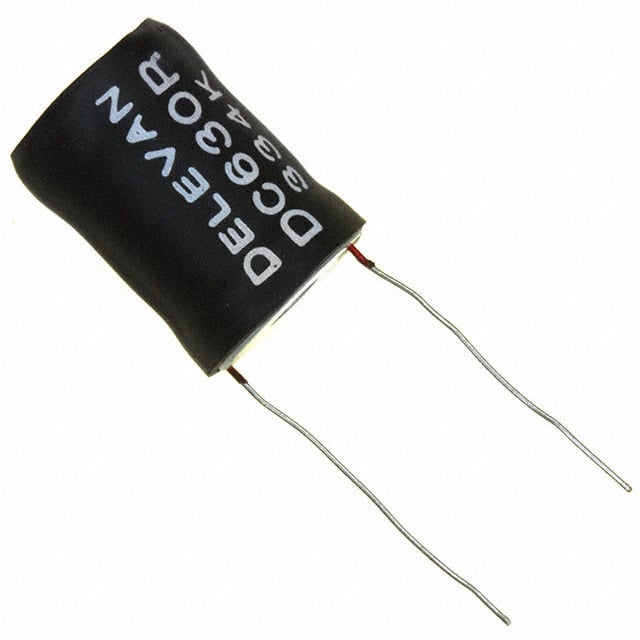

DC630R-334K FIXED IND 330UH 1.72A 315MOHM TH Delevan	107,439	-	RFQ	Datasheet	DC630R	Radial, Vertical Cylinder	Bulk	Active	Drum Core, Wirewound	Ferrite	330 µH	±10%	1.72 A	3.8A	Unshielded	315mOhm Max	-	-	-	-55°C ~ 125°C	10 kHz	-	Through Hole	-	0.630" Dia (16.00mm)	0.830" (21.08mm)
CPD3119-100M THT CLASS D IND FOR DIGITAL AMP CODACA	198,177	-	RFQ	Datasheet	CPD3119	Nonstandard	Tray	Active	Wirewound	Ferrite	10 µH	±20%	17 A	61A	Shielded	5.7mOhm Max	-	-	-	-40°C ~ 125°C	100 kHz	Low Loss, Soft Saturation	Through Hole	Vertical, 4 PC Pin	1.220" L x 0.748" W (31.00mm x 19.00mm)	1.299" (33.00mm)
CPD3119-220M CLASS D INDUCTOR FOR DIGITAL AMP CODACA	168,562	-	RFQ	Datasheet	CPD3119	Nonstandard	Tray	Active	Wirewound	Ferrite	22 µH	±20%	15.5 A	33A	Shielded	6.4mOhm Max	-	-	AEC-Q200	-40°C ~ 125°C	100 kHz	Low Loss, Soft Saturation	Through Hole	Radial - 4 Leads	1.220" L x 0.748" W (31.00mm x 19.00mm)	1.299" (33.00mm)
CPG2717-220M THT HIGH CURRENT POWER INDUCTOR CODACA	148,283	-	RFQ	Datasheet	CPG2717	Nonstandard	Tray	Active	Wirewound	Ferrite	22 µH	±20%	33.7 A	12A	Shielded	2mOhm Max	-	-	AEC-Q200	-40°C ~ 125°C	100 kHz	Flat Wire, High Current	Through Hole	Vertical, 4 PC Pin	-	-
4501R-128M FIXED IND 100UH 650MA 400MOHM SM Delevan	135,728	-	RFQ	Datasheet	4501R	Nonstandard	Tape & Reel (TR)	Active	Toroidal	Ferrite	100 µH	±20%	650 mA	650mA	Shielded	400mOhm Max	-	-	-	-55°C ~ 125°C	10 kHz	-	Surface Mount	-	0.360" L x 0.360" W (9.14mm x 9.14mm)	0.210" (5.33mm)
SWS-3.00-110 FIXED IND 110UH 3A 90 MOHM SMD Amgis, LLC	133,793	-	RFQ	Datasheet	SW	Nonstandard	Tape & Reel (TR)	Obsolete	Toroidal	Iron Powder	110 µH	±20%	3 A	-	Unshielded	90mOhm	-	-	-	-40°C ~ 125°C	10 kHz	-	Surface Mount	-	0.925" L x 0.925" W (23.50mm x 23.50mm)	0.506" (12.85mm)

Total 147749 Record«Prev 1... 1593 1594 1595 159615971598 1599 1600...7388 Next»
