Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | RoHs | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
.jpg)
|
LQG15WZR13J02DFIXED IND 130NH 110MA 2.9OHM SMD Murata Electronics |
196,775 |
|
Datasheet |
 |
LQG15 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | - | 130 nH | ±5% | 110 mA | - | Unshielded | 2.9Ohm Max | 22 @ 250MHz | 800MHz | AEC-Q200 | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0402 | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.022" (0.55mm) |
|
|
LQG15WZ13NH02DFIXED IND 13NH 400MA 0.26OHM SMD Murata Electronics |
166,341 |
|
Datasheet |
|
LQG15 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | Air | 13 nH | ±3% | 400 mA | - | Unshielded | 260mOhm Max | - | 2.8GHz | AEC-Q200 | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.024" W (1.00mm x 0.60mm) | 0.020" (0.51mm) |
|
|
LQG15WH1N5C02DFIXED IND 1.5NH 1A 0.04OHM SMD Murata Electronics |
117,703 |
|
Datasheet |
|
LQG15 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | Air | 1.5 nH | ±0.2nH | 1 A | - | Unshielded | 40mOhm Max | - | 11GHz | AEC-Q200 | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.024" W (1.00mm x 0.60mm) | 0.020" (0.51mm) |
|
|
LQG15HH56NH02DFIXED IND 56NH 250MA 0.82OHM SMD Murata Electronics |
150,839 |
|
Datasheet |
|
LQG15 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | Air | 56 nH | ±3% | 250 mA | - | Unshielded | 820mOhm Max | 8 @ 100MHz | 800MHz | AEC-Q200 | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.022" (0.55mm) |
|
LQM18DZ220M70LFIXED IND 22UH 200MA INFOTMT Murata Electronics |
189,877 |
|
Datasheet |
|
LQM18 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 22 µH | ±20% | 200 mA | 50mA | Shielded | 3.12Ohm Max | - | 15MHz | AEC-Q200 | -55°C ~ 125°C | 1 MHz | - | Surface Mount | 0603 | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.037" (0.95mm) |
|
LQM18DH6R8M70LFIXED IND 6.8UH 330MA 960MOHM SM Murata Electronics |
177,092 |
|
Datasheet |
|
LQM18 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 6.8 µH | ±20% | 330 mA | - | Shielded | 960mOhm Max | - | 40MHz | AEC-Q200 | -55°C ~ 150°C | 1 MHz | - | Surface Mount | 0603 | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.037" (0.95mm) |
|
LQW15AN33NJ0ZDFIXED IND 33NH 260MA 0.63OHM SMD Murata Electronics |
127,017 |
|
Datasheet |
|
LQW15 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Non-Magnetic | 33 nH | ±5% | 260 mA | - | Unshielded | 630mOhm Max | 25 @ 250MHz | 3.2GHz | AEC-Q200 | -55°C ~ 125°C | 100 MHz | - | Surface Mount | - | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.024" (0.60mm) |
|

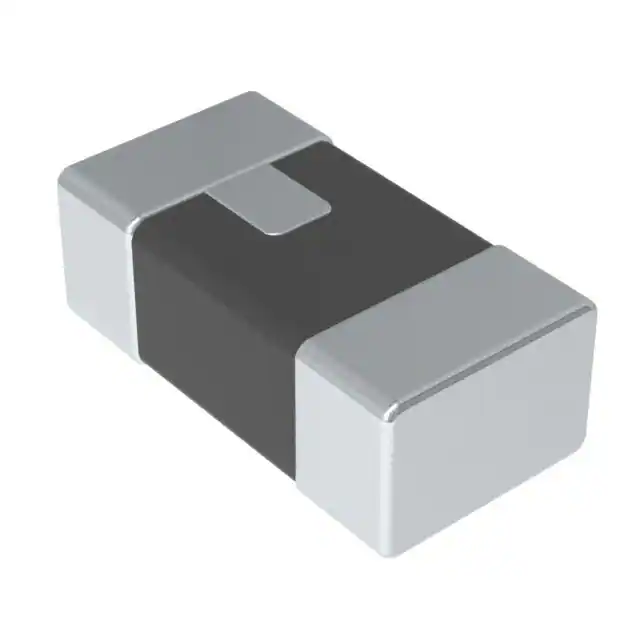

LQM18JNR12J00DFIXED IND 120NH 610MA 587.5 MOHM Murata Electronics |
167,509 |
|
Datasheet |
|
LQM18 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 120 nH | ±5% | 610 mA | - | Shielded | 587.5mOhm Max | 8 @ 25MHz | 150MHz | AEC-Q200 | -40°C ~ 85°C | 25 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.026" (0.65mm) |
|
LQW18ANR22J80DFIXED IND 220NH 280MA 2.08OHM SM Murata Electronics |
179,925 |
|
Datasheet |
|
LQW18 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Non-Magnetic | 220 nH | ±5% | 280 mA | - | Unshielded | 2.08Ohm Max | 25 @ 100MHz | 1.33GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | - | 0.065" L x 0.039" W (1.65mm x 0.99mm) | 0.039" (1.00mm) |
|
|
LQW18AN48NG8ZDFIXED IND 48NH 830MA 0.23OHM SMD Murata Electronics |
110,984 |
|
Datasheet |
|
LQW18 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Non-Magnetic | 48 nH | ±2% | 830 mA | - | Unshielded | 230mOhm Max | 32 @ 200MHz | 2.7GHz | AEC-Q200 | -55°C ~ 125°C | 100 MHz | - | Surface Mount | - | 0.065" L x 0.039" W (1.65mm x 0.99mm) | 0.039" (1.00mm) |
