Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | RoHs | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
-Height-1.20mm.jpg)
|
1286AS-H-2R2M=P2FIXED IND 2.2UH 1.6A 192MOHM SMD |
145,734 |
|
Datasheet |
 |
DFE201612C | 0806 (2016 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 2.2 µH | ±20% | 1.6 A | - | Shielded | 192mOhm Max | - | - | - | -40°C ~ 85°C | 1 MHz | - | Surface Mount | 0806 (2016 Metric) | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.047" (1.20mm) |
|
B82496C3569J000FIXED IND 5.6NH 700MA 150MOHM SM |
183,609 |
|
Datasheet |
|
SIMID | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 5.6 nH | ±5% | 700 mA | - | Unshielded | 150mOhm Max | 14 @ 100MHz | 6GHz | AEC-Q200 | -55°C ~ 150°C | 100 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.035" (0.90mm) |
|
|
1286AS-H-1R5M=P2FIXED IND 1.5UH 2A 114 MOHM SMD |
180,842 |
|
Datasheet |
|
DFE201612C | 0806 (2016 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 1.5 µH | ±20% | 2 A | - | Shielded | 114mOhm Max | - | - | - | -40°C ~ 85°C | 1 MHz | - | Surface Mount | 0806 (2016 Metric) | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.047" (1.20mm) |
|
|
B82496C3339A000FIXED IND 3.3NH 1.2A 60 MOHM SMD |
153,384 |
|
Datasheet |
|
SIMID | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 3.3 nH | ±0.3nH | 1.2 A | - | Unshielded | 60mOhm Max | 14 @ 100MHz | 9GHz | AEC-Q200 | -55°C ~ 150°C | 100 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.035" (0.90mm) |
|

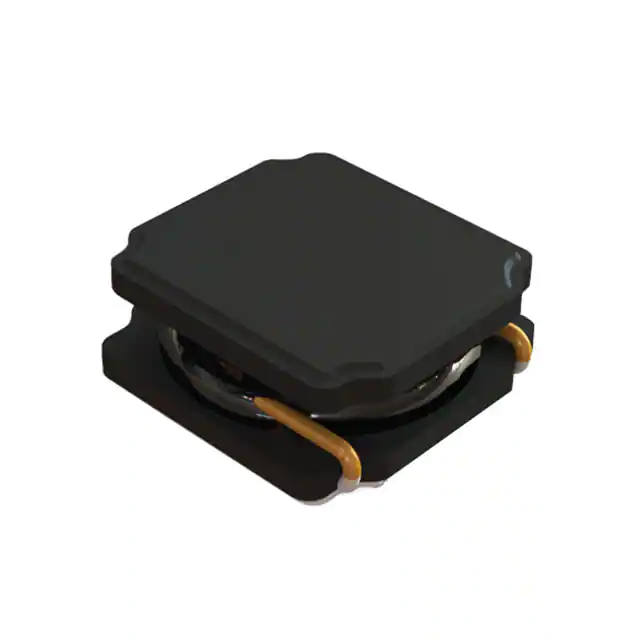

PA4334.392NLTFIXED IND 3.9UH 1.24A 189MOHM SM |
124,392 |
|
Datasheet |
|
PA4334.XXXNLT | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron | 3.9 µH | ±20% | 1.24 A | 1A | Shielded | 189mOhm Max | - | 53MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.126" L x 0.126" W (3.20mm x 3.20mm) | 0.047" (1.20mm) |
|
NRS6020T100MMGGFIXED IND 10UH 1.5A 150 MOHM SMD |
161,811 |
|
- |
|
NR, S Type | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 1.5 A | 1.9A | Shielded | 150mOhm Max | - | 18MHz | - | -25°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.079" (2.00mm) |
|
VLS6045EX-220MFIXED IND 22UH 1.9A 137 MOHM SMD |
135,875 |
|
Datasheet |
|
VLS-EX | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 22 µH | ±20% | 1.9 A | 2.4A | Shielded | 105mOhm | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.177" (4.50mm) |
|
|
NRS4018T6R8MDGJVFIXED IND 6.8UH 1.45A 117.6 MOHM |
193,945 |
|
Datasheet |
|
NR, S Type | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 6.8 µH | ±20% | 1.45 A | 1.6A | Shielded | 117.6mOhm Max | - | 30MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.071" (1.80mm) |
|
|
NRS4018T220MDGJVFIXED IND 22UH 720MA 348MOHM SMD |
162,098 |
|
- |
|
NR, S Type | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 22 µH | ±20% | 720 mA | 900mA | Shielded | 348mOhm Max | - | 15MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.071" (1.80mm) |
|
IHLP1212ABERR22M11FIXED IND 220NH 9.3A 11.4MOHM SM |
128,655 |
|
Datasheet |
|
IHLP-1212AB-11 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 220 nH | ±20% | 9.3 A | 9.3A | Shielded | 11.4mOhm Max | - | 220MHz | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.144" L x 0.118" W (3.65mm x 3.00mm) | 0.047" (1.20mm) |
|
SDCL1V4020-4R7M-RIND 4.7 UH 4.0A SMT |
156,984 |
|
Datasheet |
|
SDCL1V40 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 4.7 µH | ±20% | 2.5 A | 4A | Shielded | 108mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.079" (2.00mm) |
|
L02013R3BHSTRFIXED INDUCTOR |
198,953 |
|
Datasheet |
|
Accu-L® | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Thin Film | Non-Magnetic | 3.3 nH | ±0.1nH | 150 mA | - | Unshielded | 1Ohm Max | 7 @ 450MHz | 13GHz | - | -55°C ~ 125°C | 450 MHz | - | Surface Mount | 0201 (0603 Metric) | 0.024" L x 0.013" W (0.60mm x 0.33mm) | 0.011" (0.28mm) |
|
|
L02011R0AHSTR\500FIXED IND 1NH 400MA 200 MOHM SMD |
123,812 |
|
Datasheet |
|
Accu-L® | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Thin Film | Non-Magnetic | 1 nH | ±0.05nH | 400 mA | - | Unshielded | 200mOhm Max | 7 @ 450MHz | 26GHz | - | -55°C ~ 125°C | 450 MHz | - | Surface Mount | 0201 (0603 Metric) | 0.024" L x 0.013" W (0.60mm x 0.33mm) | 0.011" (0.28mm) |
|
SRN3012TA-4R7MFIXED IND 4.7UH 1.3A 130MOHM SMD |
122,203 |
|
Datasheet |
|
SRN3012TA | 1212 (3030 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 4.7 µH | ±20% | 1.3 A | 1.05A | Shielded | 130mOhm | 18 @ 1MHz | 55MHz | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.047" (1.20mm) |
|
|
NRS4018T221MDGJVFIXED IND 220UH 170MA 4.56OHM SM |
139,579 |
|
Datasheet |
|
NR, S Type | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 220 µH | ±20% | 170 mA | 275mA | Shielded | 4.56Ohm Max | - | 4MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.071" (1.80mm) |
|
|
SRN3012TA-100MFIXED IND 10UH 890MA 245MOHM SMD |
131,285 |
|
Datasheet |
|
SRN3012TA | 1212 (3030 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 890 mA | 760mA | Shielded | 245mOhm | 20 @ 1MHz | 40MHz | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.047" (1.20mm) |
|
|
VLS6045EX-1R0NFIXED IND 1UH 6A 16 MOHM SMD |
137,690 |
|
Datasheet |
|
VLS-EX | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1 µH | ±30% | 6 A | 12A | Shielded | 12mOhm | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.177" (4.50mm) |
|
|
TFM160810ALTA33NNTAAIND 33NH 10.0A 9.0MOHM -40~125 |
194,596 |
|
Datasheet |
|
TFM-ALTA | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Thin Film | Metal | 33 nH | ±30% | 4.7 A | 7.5A | Shielded | 9mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 1 MHz | Soft Termination | Surface Mount | 0603 | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.039" (1.00mm) |
|
VLS5045EX-220M-HFIXED IND 22UH 1.8A 162.5MOHM SM |
159,908 |
|
Datasheet |
|
VLS-EX-H | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 22 µH | ±20% | 1.8 A | 2A | Shielded | 162.5mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.209" L x 0.197" W (5.30mm x 5.00mm) | 0.177" (4.50mm) |
|
SDCL1V4020-6R8M-RIND 6.8 UH 3.0A SMT |
115,753 |
|
Datasheet |
|
SDCL1V40 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 6.8 µH | ±20% | 2.1 A | 3A | Shielded | 156mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.079" (2.00mm) |
