Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | RoHs | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
744762215AFIXED IND 150NH 800MA 220MOHM SM |
183,390 |
|
Datasheet |
 |
WE-KI | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 150 nH | ±5% | 800 mA | - | Unshielded | 220mOhm Max | 45 @ 100MHz | 880MHz | AEC-Q200 | -40°C ~ 125°C | 25 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.102" L x 0.083" W (2.60mm x 2.10mm) | 0.075" (1.90mm) |
|
LQH32PN220MNCLFIXED IND 22UH 550MA 822MOHM SMD |
170,127 |
|
Datasheet |
|
LQH32 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 22 µH | ±20% | 550 mA | 650mA | Shielded | 822mOhm Max | - | 20MHz | - | -40°C ~ 85°C | 1 MHz | - | Surface Mount | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.087" (2.20mm) |
|
|
LQH3NPZ330MMELFIXED IND 33UH 460MA 660MOHM SMD |
100,468 |
|
Datasheet |
|
LQH3 | 1212 (3030 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 33 µH | ±20% | 760 mA | - | Shielded | 660mOhm Max | - | 8MHz | AEC-Q200 | -40°C ~ 105°C | 1 MHz | - | Surface Mount | 1212 (3030 Metric) | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.059" (1.50mm) |
.jpg)
|
744760310AFIXED IND 1UH 180MA 2.13 OHM SMD |
191,959 |
|
Datasheet |
|
WE-RFI | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1 µH | ±5% | 180 mA | - | Unshielded | 2.13Ohm Max | 35 @ 50MHz | 200MHz | - | -40°C ~ 85°C | 25.2 MHz | - | Surface Mount | 0805 | 0.090" L x 0.067" W (2.29mm x 1.70mm) | 0.058" (1.48mm) |
|
|
LQH3NPZ101MMELFIXED IND 100UH 270MA 1.908 OHM |
158,387 |
|
Datasheet |
|
LQH3 | 1212 (3030 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 100 µH | ±20% | 430 mA | - | Shielded | 1.908Ohm Max | - | 3MHz | AEC-Q200 | -40°C ~ 105°C | 1 MHz | - | Surface Mount | 1212 (3030 Metric) | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.059" (1.50mm) |
|
|
LQH32PN4R7NNCLFIXED IND 4.7UH 1.2A 186MOHM SMD |
116,061 |
|
Datasheet |
|
LQH32 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 4.7 µH | ±30% | 1.2 A | 1.6A | Shielded | 186mOhm Max | - | 40MHz | - | -40°C ~ 85°C | 1 MHz | - | Surface Mount | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.087" (2.20mm) |
|
|
LQH32PB100MN0LFIXED IND 10UH 700MA 456MOHM SMD |
105,145 |
|
Datasheet |
|
LQH32 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 700 mA | 750mA | Shielded | 456mOhm Max | - | 30MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.067" (1.70mm) |
|
B82144F2222K000FIXED IND 2.2UH 3.65A 0.055OHM |
177,544 |
|
Datasheet |
|
LBC | Axial | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2.2 µH | ±10% | 3.65 A | 6A | Unshielded | 55mOhm Max | 60 @ 2.52MHz | 140MHz | - | -55°C ~ 125°C | 1 MHz | - | Through Hole | - | 0.256" Dia x 0.362" L (6.50mm x 9.20mm) | - |
|

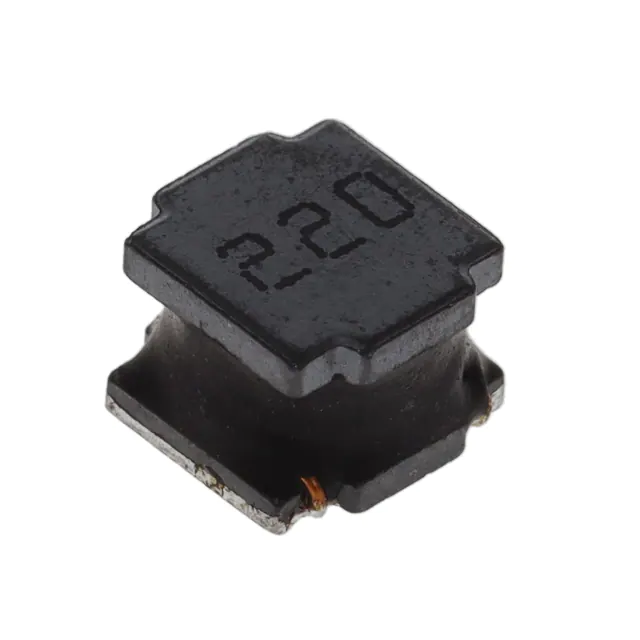

ASPI-6045T-220M-TIND 22UH 1.8A 116M |
172,281 |
|
Datasheet |
|
ASPI-6045T | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 22 µH | ±20% | 1.8 A | 2.05A | Shielded | 116mOhm Max | - | 10MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.177" (4.50mm) |
|
SRN4018-6R8MFIXED IND 6.8UH 1.5A 118MOHM SMD |
128,772 |
|
Datasheet |
|
SRN4018 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 6.8 µH | ±20% | 1.5 A | 1.6A | Shielded | 118mOhm Max | 9 @ 7.96MHz | 30MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.071" (1.80mm) |
|
|
SRN4018-470MFIXED IND 47UH 600MA 780MOHM SMD |
127,017 |
|
Datasheet |
|
SRN4018 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 47 µH | ±20% | 600 mA | 620mA | Shielded | 780mOhm Max | 11 @ 2.52MHz | 10MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.071" (1.80mm) |
|
|
SRN4018-680MFIXED IND 68UH 500MA 1.128OHM SM |
148,773 |
|
Datasheet |
|
SRN4018 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 68 µH | ±20% | 500 mA | 500mA | Shielded | 1.128Ohm Max | 11 @ 2.52MHz | 8MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.071" (1.80mm) |
|
TYA40204R7M-10FIXED IND 4.7UH 2.85A 115MOHM SM |
162,811 |
|
Datasheet |
|
TYA4020 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 4.7 µH | ±20% | 2.85 A | 4A | Shielded | 115mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.083" (2.10mm) |
|
RLB0914-101KLFIXED IND 100UH 1.1A 280 MOHM TH |
167,736 |
|
Datasheet |
|
RLB | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 100 µH | ±10% | 1.1 A | 2.1A | Unshielded | 280mOhm Max | 30 @ 796kHz | 3.5MHz | - | -40°C ~ 125°C | 796 kHz | - | Through Hole | - | 0.343" Dia (8.70mm) | 0.512" (13.00mm) |
|
|
SRN4018-220MFIXED IND 22UH 900MA 348MOHM SMD |
150,248 |
|
Datasheet |
|
SRN4018 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 22 µH | ±20% | 900 mA | 950mA | Shielded | 348mOhm Max | 11 @ 2.52MHz | 15MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.071" (1.80mm) |
|
|
TYA4020100M-10FIXED IND 10UH 2A 220 MOHM SMD |
148,033 |
|
Datasheet |
|
TYA4020 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 10 µH | ±20% | 2 A | 2.8A | Shielded | 220mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.083" (2.10mm) |
|
|
SRN4018-101MFIXED IND 100UH 420MA 1.596 OHM |
189,420 |
|
Datasheet |
|
SRN4018 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 100 µH | ±20% | 420 mA | 450mA | Shielded | 1.596Ohm Max | 23 @ 796kHz | 6MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.071" (1.80mm) |
|
B82496C3221J000FIXED IND 220NH 110MA 7 OHM SMD |
103,001 |
|
Datasheet |
|
SIMID | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 220 nH | ±5% | 110 mA | - | Unshielded | 7Ohm Max | 4 @ 25.2MHz | 1.3GHz | AEC-Q200 | -55°C ~ 150°C | 25.2 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.035" (0.90mm) |
|
|
B82496C3181J000FIXED IND 180NH 120MA 6 OHM SMD |
146,745 |
|
Datasheet |
|
SIMID | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 180 nH | ±5% | 120 mA | - | Unshielded | 6Ohm Max | 4 @ 25.2MHz | 1.4GHz | AEC-Q200 | -55°C ~ 150°C | 25.2 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.035" (0.90mm) |
|
VLS6045AF-100MFIXED IND 10UH 3.4A 54 MOHM SMD |
124,723 |
|
Datasheet |
|
VLS | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 3.4 A | 3A | Shielded | 54mOhm | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.177" (4.50mm) |
