Fixed Inductors

Mfr. Part #	Availability	Price	Quantity	Datasheet	Series	Package/Case	Packaging	Product Status	Type	Material - Core	Inductance	Tolerance	Current Rating (Amps)	Current - Saturation (Isat)	Shielding	DC Resistance (DCR)	Q @ Freq	Frequency - Self Resonant	Ratings	Operating Temperature	Inductance Frequency - Test	Features	Mounting Type	Supplier Device Package	Size / Dimension	Height - Seated (Max)
1415604C FIXED IND 15MH 400MA 5.5 OHM TH Murata Power Solutions Inc.	166,227	-	RFQ	Datasheet	1400	Radial, Vertical Cylinder	Tray	Active	Wirewound	-	15 mH	±10%	400 mA	-	Unshielded	5.5Ohm Max	61 @ 10kHz	200kHz	-	-40°C ~ 85°C	1 kHz	-	Through Hole	-	0.961" Dia (24.40mm)	0.787" (20.00mm)
1433433C FIXED IND 330UH 3.3A 120MOHM TH Murata Power Solutions Inc.	129,805	-	RFQ	Datasheet	1400	Radial, Vertical Cylinder	Tray	Active	Wirewound	-	330 µH	±10%	3.3 A	-	Unshielded	120mOhm Max	29 @ 50kHz	2MHz	-	-40°C ~ 85°C	1 kHz	-	Through Hole	-	0.961" Dia (24.40mm)	0.787" (20.00mm)
1433510C FIXED IND 3.3MH 1A 1.992 OHM TH Murata Power Solutions Inc.	150,344	-	RFQ	Datasheet	1400	Radial, Vertical Cylinder	Tray	Active	Wirewound	-	3.3 mH	±10%	1 A	-	Unshielded	1.992Ohm Max	20 @ 50kHz	700kHz	-	-40°C ~ 85°C	1 kHz	-	Through Hole	-	0.961" Dia (24.40mm)	0.787" (20.00mm)
1415449C FIXED IND 150UH 4.9A 55 MOHM TH Murata Power Solutions Inc.	162,308	-	RFQ	Datasheet	1400	Radial, Vertical Cylinder	Tray	Active	Wirewound	-	150 µH	±10%	4.9 A	-	Unshielded	55mOhm Max	34 @ 50kHz	2.9MHz	-	-40°C ~ 85°C	1 kHz	-	Through Hole	-	0.961" Dia (24.40mm)	0.787" (20.00mm)
744151 FIXED IND 48UH 8.1A 25 MOHM TH Würth Elektronik	160,504	-	RFQ	Datasheet	WE-SI	Radial, Vertical (Open)	Bulk	Active	Toroidal	Iron Powder	48 µH	±20%	8.1 A	3A	Shielded	25mOhm Max	-	13.6MHz	-	-40°C ~ 105°C	10 kHz	-	Through Hole	-	1.181" Dia x 0.472" W (30.00mm x 12.00mm)	-
744373965068 FIXED IND 6.8UH 9.5A 0.0116OHM Würth Elektronik	115,598	-	RFQ	Datasheet	WE-LHMI	2-SMD	Tape & Reel (TR)	Active	Molded	Iron Powder	6.8 µH	±20%	9.5 A	28.9A	Shielded	11.6mOhm Max	-	11.6MHz	-	-40°C ~ 125°C	100 kHz	-	Surface Mount	1365	0.551" L x 0.504" W (14.00mm x 12.80mm)	0.256" (6.50mm)
DRA124-150-R FIXED IND 15UH 3.1A 44 MOHM SMD Eaton - Electronics Division	196,478	-	RFQ	Datasheet	DRA	Nonstandard	Tape & Reel (TR)	Active	Wirewound	-	15 µH	±20%	3.1 A	5.31A	Shielded	44mOhm	-	-	AEC-Q200	-40°C ~ 165°C	100 kHz	-	Surface Mount	-	0.492" L x 0.492" W (12.50mm x 12.50mm)	0.177" (4.50mm)
FIT44-1 FIXED IND 18.85UH 2.8A 44.8 MOHM Triad Magnetics	135,594	-	RFQ	Datasheet	FIT	Radial, Vertical (Open)	Bulk	Active	Toroidal	Iron Powder	18.85 µH	-	2.8 A	-	Unshielded	44.8mOhm Max	-	-	-	-40°C ~ 85°C	10 kHz	-	Through Hole	-	0.625" L x 0.350" W (15.88mm x 8.89mm)	0.700" (17.78mm)
2120-H-RC FIXED IND 470UH 1.6A 280 MOHM TH Bourns Inc.	188,540	-	RFQ	Datasheet	2100	Radial, Horizontal (Open)	Bulk	Active	Toroidal	-	470 µH	±15%	1.6 A	-	Unshielded	280mOhm Max	-	-	-	-55°C ~ 105°C	1 kHz	-	Through Hole	-	0.860" Dia (21.84mm)	0.450" (11.43mm)
ETQ-P4LR68XFC FIXED IND 680NH 21A 1.58MOHM SMD Panasonic Electronic Components	135,915	-	RFQ	Datasheet	PCC-M1040L (MC)	2-SMD, J-Lead	Tape & Reel (TR)	Not For New Designs	Drum Core, Wirewound	Metal Composite	680 nH	±20%	21 A	-	Shielded	1.58mOhm	-	-	-	-	100 kHz	-	Surface Mount	-	0.453" L x 0.394" W (11.50mm x 10.00mm)	0.157" (4.00mm)
DRA127-2R2-R FIXED IND 2.2UH 12.52A 4MOHM SMD Eaton - Electronics Division	113,957	-	RFQ	Datasheet	DRA	Nonstandard	Tape & Reel (TR)	Active	Wirewound	-	2.2 µH	±20%	12.52 A	25.5A	Shielded	4mOhm	-	-	AEC-Q200	-40°C ~ 165°C	100 kHz	-	Surface Mount	-	0.492" L x 0.492" W (12.50mm x 12.50mm)	0.315" (8.00mm)
1536Z FIXED IND 1MH 1A 550 MOHM TH Hammond Manufacturing	162,041	-	RFQ	Datasheet	1536	Axial	Bulk	Active	Drum Core, Wirewound	Iron Powder	1 mH	±20%	1 A	-	Unshielded	550mOhm	-	-	-	-	1 kHz	-	Through Hole	-	0.500" Dia x 1.030" L (12.70mm x 26.16mm)	-

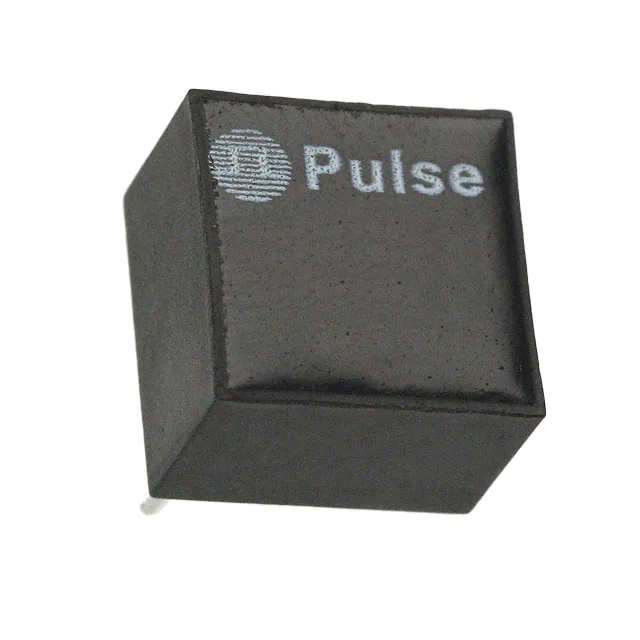

PE-53822NL FIXED IND 54UH 1A 200 MOHM TH Pulse Electronics	168,334	-	RFQ	Datasheet	-	Radial, Vertical - Corner Terminals	Tube	Active	Toroidal	-	54 µH	±20%	1 A	-	Shielded	200mOhm	-	-	-	-40°C ~ 130°C	-	-	Through Hole	-	0.495" L x 0.495" W (12.57mm x 12.57mm)	0.375" (9.52mm)
7441501 FIXED IND 12UH 14.5A 8 MOHM TH Würth Elektronik	155,544	-	RFQ	Datasheet	WE-SI	Radial	Bulk	Active	Toroidal	Iron Powder	12 µH	±20%	14.5 A	6.9A	Unshielded	8mOhm Max	-	44.6MHz	-	-40°C ~ 105°C	10 kHz	-	Through Hole	-	1.122" Dia x 0.571" W (28.50mm x 14.50mm)	-
1210R-683J FIXED IND 68UH 144MA 9 OHM SMD Delevan	172,717	-	RFQ	Datasheet	1210R	1210 (3225 Metric)	Tape & Reel (TR)	Active	-	Ferrite	68 µH	±5%	144 mA	-	Unshielded	9Ohm Max	30 @ 2.5MHz	10MHz	-	-55°C ~ 125°C	2.5 MHz	-	Surface Mount	1210	0.128" L x 0.095" W (3.25mm x 2.42mm)	0.101" (2.57mm)
PM2110-821K-RC FIXED IND 820UH 2A 221 MOHM SMD Bourns Inc.	196,956	-	RFQ	Datasheet	PM2110	Nonstandard	Bulk	Active	Toroidal	Iron	820 µH	±10%	2 A	-	Unshielded	221mOhm Max	-	-	-	-55°C ~ 105°C	1 kHz	-	Surface Mount	-	1.201" L x 1.000" W (30.50mm x 25.40mm)	0.600" (15.24mm)
PM2110-391K-RC FIXED IND 390UH 3.1A 98 MOHM SMD Bourns Inc.	166,625	-	RFQ	Datasheet	PM2110	Nonstandard	Bulk	Active	Toroidal	Iron	390 µH	±10%	3.1 A	-	Unshielded	98mOhm Max	-	-	-	-55°C ~ 105°C	1 kHz	-	Surface Mount	-	1.201" L x 1.000" W (30.50mm x 25.40mm)	0.600" (15.24mm)
PM2110-120K-RC FIXED IND 12UH 11.3A 7 MOHM SMD Bourns Inc.	142,258	-	RFQ	Datasheet	PM2110	Nonstandard	Bulk	Active	Toroidal	Iron	12 µH	±10%	11.3 A	-	Unshielded	7mOhm Max	-	-	-	-55°C ~ 105°C	1 kHz	-	Surface Mount	-	1.201" L x 1.000" W (30.50mm x 25.40mm)	0.570" (14.48mm)
HCV1206-2R0-R FIXED IND 2UH 12A 6 MOHM SMD Eaton - Electronics Division	111,417	-	RFQ	Datasheet	HCV1206	Nonstandard	Tape & Reel (TR)	Active	Drum Core, Wirewound	Ferrite	2 µH	±10%	12 A	16A	Unshielded	6mOhm	-	-	-	-55°C ~ 125°C	100 kHz	-	Surface Mount	-	0.480" L x 0.386" W (12.20mm x 9.80mm)	0.201" (5.10mm)
DRA127-331-R FIXED IND 330UH 1.011A 612 MOHM Eaton - Electronics Division	130,310	-	RFQ	Datasheet	DRA	Nonstandard	Tape & Reel (TR)	Active	Wirewound	-	330 µH	±20%	1.011 A	1.93A	Shielded	612mOhm	-	-	AEC-Q200	-40°C ~ 165°C	100 kHz	-	Surface Mount	-	0.492" L x 0.492" W (12.50mm x 12.50mm)	0.315" (8.00mm)

Total 147749 Record«Prev 1... 1818 1819 1820 182118221823 1824 1825...7388 Next»
