Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | RoHs | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
.jpg)
|
B82422H1103J000FIXED IND 10UH 500MA 460MOHM SMD |
150,033 |
|
Datasheet |
 |
SIMID | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±5% | 500 mA | - | Unshielded | 460mOhm Max | 12 @ 2.52MHz | 30MHz | AEC-Q200 | -55°C ~ 150°C | 2.52 MHz | - | Surface Mount | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.094" (2.40mm) |
|
74479032FIXED IND 470NH 200MA 600MOHM SM |
146,997 |
|
Datasheet |
|
WE-MI | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Multilayer | Nickel Zinc Ferrite (NiZn) | 470 nH | ±10% | 200 mA | - | Unshielded | 600mOhm Max | 25 @ 25MHz | 140MHz | - | -55°C ~ 125°C | 25 MHz | - | Surface Mount | 0805 | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.057" (1.45mm) |
|
IFSC1008ABER220M01FIXED IND 22UH 460MA 1.05OHM SMD |
184,884 |
|
Datasheet |
|
IFSC-1008AB | Nonstandard | Tape & Reel (TR) | Active | - | - | 22 µH | ±20% | 460 mA | 500mA | Shielded | 1.05Ohm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.047" (1.20mm) |
|

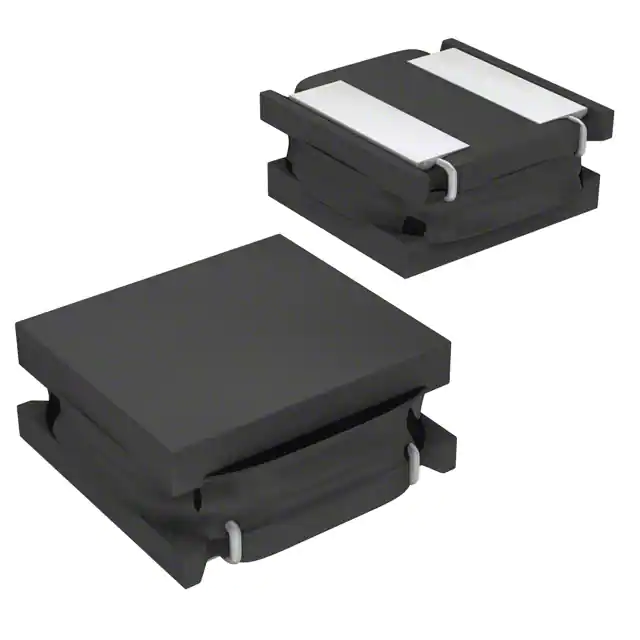

IFSC1111ABER4R7M01FIXED IND 4.7UH 1.4A 156MOHM SMD |
183,427 |
|
Datasheet |
|
IFSC-1111AB | Nonstandard | Tape & Reel (TR) | Active | - | - | 4.7 µH | ±20% | 1.4 A | 1.2A | Shielded | 156mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.114" L x 0.114" W (2.90mm x 2.90mm) | 0.051" (1.30mm) |
.jpg)
|
DFE322512F-3R3M=P2FIXED IND 3.3UH 2A 108 MOHM SMD |
162,484 |
|
Datasheet |
|
DFE322512F | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 3.3 µH | ±20% | 2 A | 2.6A | Shielded | 108mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.047" (1.20mm) |
|
MGAH06032R2M-100603 INDUCTOR 2.2UH 7A |
162,139 |
|
Datasheet |
|
MGAH0603 | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal Composite | 2.2 µH | ±20% | 7 A | 10A | Shielded | 17.5mOhm Max | - | - | - | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.276" L x 0.260" W (7.00mm x 6.60mm) | 0.122" (3.10mm) |
|
LQW15CNR18J1ZDFIXED IND 180NH 560MA 0.312OHM |
123,242 |
|
Datasheet |
|
LQW15 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 180 nH | ±5% | 560 mA | - | Unshielded | 312mOhm Max | - | 1GHz | AEC-Q200 | -40°C ~ 125°C | 100 MHz | - | Surface Mount | - | 0.039" L x 0.024" W (1.00mm x 0.60mm) | 0.024" (0.60mm) |
|
|
DFE322512F-1R0M=P2FIXED IND 1UH 3.8A 32 MOHM SMD |
129,793 |
|
Datasheet |
|
DFE322512F | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 1 µH | ±20% | 3.8 A | 4.8A | Shielded | 32mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.047" (1.20mm) |
|
SRN6045TA-330MFIXED IND 33UH 1.8A 145 MOHM SMD |
179,242 |
|
Datasheet |
|
SRN6045TA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 33 µH | ±20% | 1.8 A | 2.5A | Shielded | 145mOhm | 15 @ 1MHz | 13MHz | AEC-Q200 | -55°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.177" (4.50mm) |
|
VLS3012HBX-100MFIXED IND 10UH 1.48A 415MOHM SMD |
106,827 |
|
Datasheet |
|
VLS-HBX | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 10 µH | ±20% | 1.48 A | 1.7A | Shielded | 415mOhm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.047" (1.20mm) |
|
|
DFE322512F-1R5M=P2FIXED IND 1.5UH 3A 48 MOHM SMD |
196,415 |
|
Datasheet |
|
DFE322512F | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 1.5 µH | ±20% | 3 A | 3.9A | Shielded | 48mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.047" (1.20mm) |
|
|
B82422H1153J000FIXED IND 15UH 390MA 720MOHM SMD |
161,589 |
|
Datasheet |
|
SIMID | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 15 µH | ±5% | 390 mA | - | Unshielded | 720mOhm Max | 12 @ 2.52MHz | 26MHz | AEC-Q200 | -55°C ~ 150°C | 2.52 MHz | - | Surface Mount | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.094" (2.40mm) |
|
|
DFE322512F-R68M=P2FIXED IND |
118,702 |
|
Datasheet |
|
DFE18SBN | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Wirewound | Metal | 680 nH | ±20% | 4.4 A | 6.1A | Shielded | 26mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.047" (1.20mm) |
|
|
SRN6045TA-2R2YFIXED IND 2.2UH 6A 15 MOHM SMD |
108,744 |
|
Datasheet |
|
SRN6045TA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2.2 µH | ±30% | 6 A | 9.5A | Shielded | 15mOhm | 15 @ 1MHz | 55MHz | AEC-Q200 | -55°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.177" (4.50mm) |
|
TFM252012ALVA3R3MTAAFIXED IND 3.3UH 2A 140 MOHM SMD |
187,614 |
|
Datasheet |
|
TFM-ALVA | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Thin Film | Metal | 3.3 µH | ±20% | 2 A | 2.1A | Shielded | 140mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 1 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.047" (1.20mm) |
|
SDR0403-3R3MLFIXED IND 3.3UH 2.15A 58MOHM SMD |
111,836 |
|
Datasheet |
|
SDR0403 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 3.3 µH | ±20% | 2.15 A | 3A | Unshielded | 58mOhm Max | 28 @ 7.96MHz | 65MHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.177" L x 0.157" W (4.50mm x 4.00mm) | 0.138" (3.50mm) |
|
|
SRN6045TA-820MFIXED IND 82UH 980MA 365MOHM SMD |
196,342 |
|
Datasheet |
|
SRN6045TA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 82 µH | ±20% | 980 mA | 1.5A | Shielded | 365mOhm | 15 @ 1MHz | 9MHz | AEC-Q200 | -55°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.177" (4.50mm) |
|
|
DFE322512F-2R2M=P2FIXED IND 2.2UH 2.6A 66MOHM SMD |
146,199 |
|
Datasheet |
|
DFE322512F | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 2.2 µH | ±20% | 2.6 A | 3.4A | Shielded | 66mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.047" (1.20mm) |
|
|
MGAH0603330M-100603 INDUCTOR 33UH 2A |
141,971 |
|
Datasheet |
|
MGAH0603 | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal Composite | 33 µH | ±20% | 2 A | 2.5A | Shielded | 257mOhm Max | - | - | - | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.276" L x 0.260" W (7.00mm x 6.60mm) | 0.122" (3.10mm) |
|

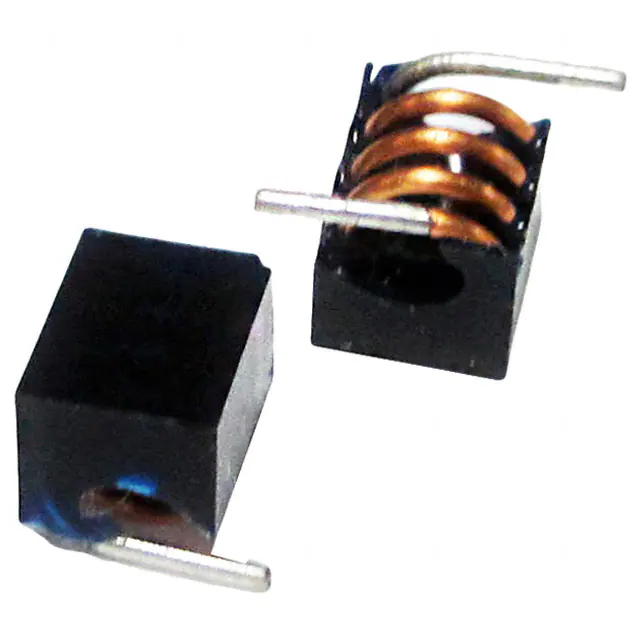

AIAC-1812-R10J-TFIXED IND 100NH 2.5A 10 MOHM SMD |
171,257 |
|
Datasheet |
|
AIAC-1812 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Air | 100 nH | ±5% | 2.5 A | - | Unshielded | 10mOhm Max | 100 @ 150MHz | 1.2GHz | - | -40°C ~ 125°C | 150 MHz | - | Surface Mount | - | 0.185" L x 0.138" W (4.70mm x 3.50mm) | 0.146" (3.70mm) |
