Fixed Inductors

Mfr. Part #	Availability	Price	Quantity	Datasheet	Series	Package/Case	Packaging	Product Status	Type	Material - Core	Inductance	Tolerance	Current Rating (Amps)	Current - Saturation (Isat)	Shielding	DC Resistance (DCR)	Q @ Freq	Frequency - Self Resonant	Ratings	Operating Temperature	Inductance Frequency - Test	Features	Mounting Type	Supplier Device Package	Size / Dimension	Height - Seated (Max)
1536D FIXED IND 3.35UH 20A 10 MOHM TH Hammond Manufacturing	153,821	-	RFQ	Datasheet	1536	Axial	Bulk	Active	Drum Core, Wirewound	Iron Powder	3.35 µH	±20%	20 A	-	Unshielded	10mOhm	-	45MHz	-	-	7.9 MHz	-	Through Hole	-	0.530" Dia x 1.310" L (13.46mm x 33.27mm)	-
744136 FIXED IND 346UH 3.8A 140 MOHM TH Würth Elektronik	187,043	-	RFQ	Datasheet	WE-SI	Radial, Vertical (Open)	Bulk	Active	Toroidal	Ferrite	346 µH	±20%	3.8 A	1.5A	Unshielded	140mOhm Max	-	3.3MHz	-	-40°C ~ 105°C	10 kHz	-	Through Hole	-	1.220" Dia x 0.591" W (31.00mm x 15.00mm)	-
IHLP6767GZERR47M8A FIXED IND 470NH 65A 0.95MOHM SMD Vishay Dale	173,751	-	RFQ	Datasheet	IHLP-6767GZ-8A	Nonstandard	Tape & Reel (TR)	Active	Molded	-	470 nH	±20%	65 A	76A	Shielded	0.95mOhm Max	-	52.3MHz	AEC-Q200	-55°C ~ 180°C	100 kHz	-	Surface Mount	-	0.675" L x 0.675" W (17.15mm x 17.15mm)	0.276" (7.00mm)
2222-V-RC FIXED IND 680UH 2.1A 230 MOHM TH Bourns Inc.	107,626	-	RFQ	Datasheet	2200	Radial, Vertical (Open)	Bulk	Active	Toroidal	Iron Powder	680 µH	±15%	2.1 A	-	Shielded	230mOhm Max	-	-	-	-55°C ~ 105°C	1 kHz	-	Through Hole	-	0.950" Dia x 0.550" W (24.13mm x 13.97mm)	-
744137 FIXED IND 630UH 3.1A 175 MOHM TH Würth Elektronik	116,881	-	RFQ	Datasheet	WE-SI	Radial, Vertical (Open)	Bulk	Active	Toroidal	Ferrite	630 µH	±20%	3.1 A	1A	Unshielded	175mOhm Max	-	1.5MHz	-	-40°C ~ 105°C	10 kHz	-	Through Hole	-	1.220" Dia x 0.591" W (31.00mm x 15.00mm)	-
HC1-1R0-R FIXED IND 1UH 28.01A 1.23MOHM SM Eaton - Electronics Division	161,525	-	RFQ	Datasheet	HC1	Nonstandard	Tape & Reel (TR)	Active	Drum Core, Wirewound	Ferrite	1 µH	±15%	28.01 A	25.4A	Unshielded	1.23mOhm Max	-	-	-	-40°C ~ 125°C	300 kHz	-	Surface Mount	-	0.512" L x 0.512" W (13.00mm x 13.00mm)	0.394" (10.00mm)
S1812R-222K FIXED IND 2.2UH 658MA 460MOHM SM Delevan	156,981	-	RFQ	Datasheet	S1812R	1812 (4532 Metric)	Tape & Reel (TR)	Active	-	Ferrite	2.2 µH	±10%	658 mA	-	Shielded	460mOhm Max	40 @ 7.9MHz	90MHz	-	-55°C ~ 125°C	7.9 MHz	-	Surface Mount	1812	0.177" L x 0.126" W (4.50mm x 3.20mm)	0.134" (3.40mm)
CTX10-2-52-R FIXED IND 10UH 4.7A 18.3 MOHM TH Eaton - Electronics Division	100,332	-	RFQ	Datasheet	CTX	Radial, Vertical (Open)	Bulk	Active	Toroidal	Iron Powder	10 µH	±20%	4.7 A	4.5A	Unshielded	18.3mOhm Max	-	-	-	-40°C ~ 75°C	100 kHz	-	Through Hole	-	0.500" Dia x 0.307" W (12.70mm x 7.80mm)	-
SH50S-3.0-47 FIXED IND 47UH 3A 50 MOHM SMD Amgis, LLC	130,716	-	RFQ	Datasheet	SH50	Nonstandard	Tape & Reel (TR)	Active	Toroidal	Iron Powder	47 µH	±20%	3 A	-	Unshielded	50mOhm Max	-	-	-	-40°C ~ 125°C	10 kHz	-	Surface Mount	-	0.701" L x 0.669" W (17.80mm x 17.00mm)	0.451" (11.45mm)
4590R-273K FIXED IND 27UH 5.15A 25 MOHM TH Delevan	152,586	-	RFQ	Datasheet	4590R	Axial	Bulk	Active	Drum Core, Wirewound	Ferrite	27 µH	±10%	5.15 A	3.2A	Unshielded	25mOhm Max	-	-	-	-55°C ~ 125°C	1 kHz	-	Through Hole	-	0.455" Dia x 0.900" L (11.55mm x 22.86mm)	-
4590R-334K FIXED IND 330UH 1.61A 257MOHM TH Delevan	170,783	-	RFQ	Datasheet	4590R	Axial	Bulk	Active	Drum Core, Wirewound	Ferrite	330 µH	±10%	1.61 A	950mA	Unshielded	257mOhm Max	-	-	-	-55°C ~ 125°C	1 kHz	-	Through Hole	-	0.455" Dia x 0.900" L (11.55mm x 22.86mm)	-
4590R-563K FIXED IND 56UH 3.93A 43 MOHM TH Delevan	196,153	-	RFQ	Datasheet	4590R	Axial	Bulk	Active	Drum Core, Wirewound	Ferrite	56 µH	±10%	3.93 A	2.3A	Unshielded	43mOhm Max	-	-	-	-55°C ~ 125°C	1 kHz	-	Through Hole	-	0.455" Dia x 0.900" L (11.55mm x 22.86mm)	-
744118 FIXED IND 600UH 2.2A 330 MOHM TH Würth Elektronik	168,417	-	RFQ	Datasheet	WE-SI	Radial, Vertical (Open)	Bulk	Active	Toroidal	Ferrite	600 µH	±20%	2.2 A	1.1A	Unshielded	330mOhm Max	-	1.3MHz	-	-40°C ~ 105°C	10 kHz	-	Through Hole	-	1.181" Dia x 0.551" W (30.00mm x 14.00mm)	-
CTX100-1-52LP-R FIXED IND 100UH 2.5A 106 MOHM TH Eaton - Electronics Division	153,625	-	RFQ	Datasheet	CTX	Radial, Horizontal (Open)	Bulk	Active	Toroidal	Iron Powder	100 µH	±20%	2.5 A	2.4A	Unshielded	106mOhm Max	-	-	-	-40°C ~ 75°C	100 kHz	-	Through Hole	-	0.610" Dia (15.50mm)	0.488" (12.40mm)
7443782012100 FIXED IND 10UH 20.6A 5 MOHM TH Würth Elektronik	162,873	-	RFQ	Datasheet	WE-HCFT	Nonstandard	Tray	Active	Drum Core, Wirewound	Manganese Zinc Ferrite (MnZn)	10 µH	±20%	20.6 A	20.6A	Shielded	5mOhm Max	-	17MHz	AEC-Q200	-40°C ~ 125°C	100 kHz	-	Through Hole	-	0.866" L x 0.669" W (22.00mm x 17.00mm)	0.531" (13.50mm)

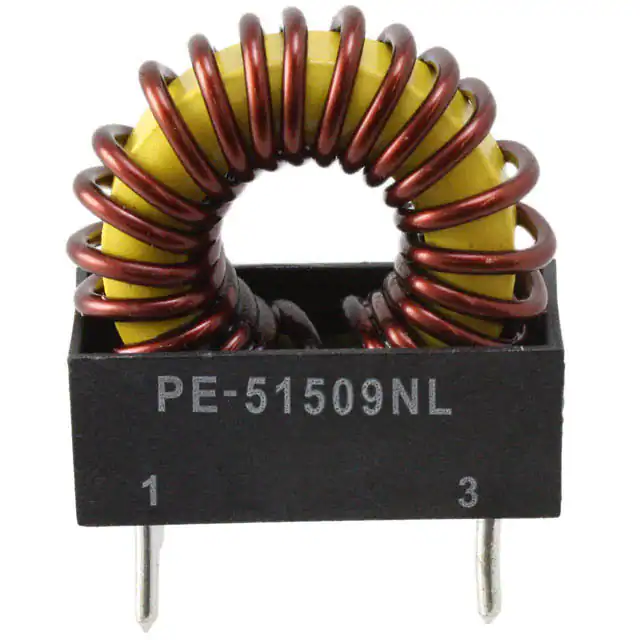

PE-51509NL FIXED IND 14UH 10A 9 MOHM TH Pulse Electronics	153,490	-	RFQ	Datasheet	-	Radial, Vertical, 4 Leads (Open)	Tray	Active	Toroidal	-	14 µH	-	10 A	-	Unshielded	9mOhm Max	-	-	-	-40°C ~ 130°C	50 kHz	-	Through Hole	-	1.200" L x 0.600" W (30.48mm x 15.24mm)	1.200" (30.48mm)
5731-RC FIXED IND 40UH 4A 25 MOHM TH Bourns Inc.	178,834	-	RFQ	Datasheet	5700	Radial, Vertical (Open)	Bulk	Active	Toroidal	Iron Powder	40 µH	±15%	4 A	-	Unshielded	25mOhm Max	-	-	-	-55°C ~ 105°C	1 kHz	-	Through Hole	-	0.850" Dia x 0.360" W (21.59mm x 9.14mm)	-
S14100032 FIXED IND 150UH 10A 21 MOHM TH Würth Elektronik	133,697	-	RFQ	Datasheet	WE-LCB	Radial, Horizontal (Open)	Tray	Active	Toroidal	Iron Powder	150 µH	±20%	10 A	-	Unshielded	21mOhm Max	-	-	-	-40°C ~ 125°C	100 kHz	-	Through Hole	-	1.516" L x 1.496" W (38.50mm x 38.00mm)	0.709" (18.00mm)
B82559B5472A019 FIXED IND 4.7UH 25.1A 2.25 MOHM EPCOS - TDK Electronics	131,985	-	RFQ	Datasheet	ERU19 - Flat Wire Inductor	Nonstandard, 3 Lead	Tape & Reel (TR)	Active	Drum Core, Wirewound	Ferrite	4.7 µH	±10%	25.1 A	25.5A	Shielded	2.25mOhm	-	-	AEC-Q200	-40°C ~ 150°C	100 kHz	-	Surface Mount	-	0.783" L x 0.728" W (19.90mm x 18.50mm)	0.417" (10.60mm)
IHLP7575GZER1R5M5A FIXED IND 1.5UH 48A 1.62 MOHM HI Vishay Dale	158,833	-	RFQ	Datasheet	IHLP-7575GZ-5A	Nonstandard	Tape & Reel (TR)	Active	Molded	-	1.5 µH	±20%	48 A	63A	Shielded	1.62mOhm Max	-	23MHz	AEC-Q200	-55°C ~ 155°C	100 kHz	-	Surface Mount	-	0.752" L x 0.750" W (19.10mm x 19.05mm)	0.276" (7.00mm)

Total 147749 Record«Prev 1... 2108 2109 2110 211121122113 2114 2115...7388 Next»
