Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | RoHs | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
-,80mm.jpg)
|

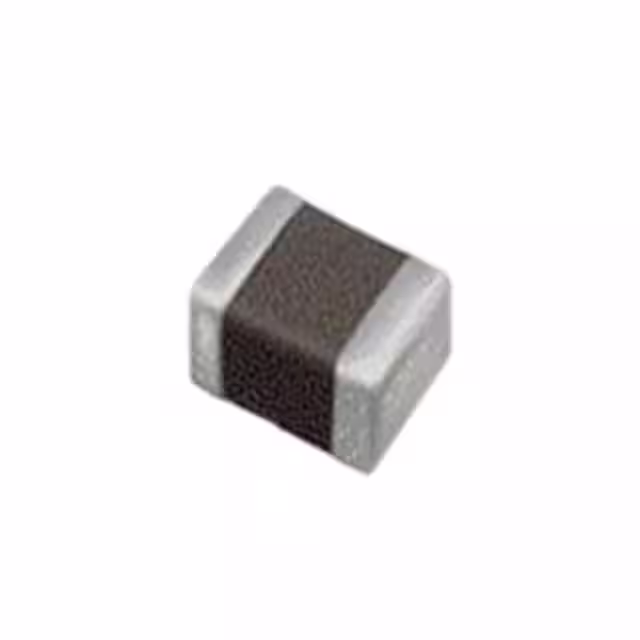

CIGW160808XMR47MLCFIXED IND 470NH 3A 43 MOHM SMD Samsung Electro-Mechanics |
131,295 |
|
Datasheet |
 |
CIGW | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 470 nH | ±20% | 3 A | - | Shielded | 43mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.031" (0.80mm) |
|
CIGW404020KM1R0MLFFIXED IND 1UH 7.9A 0.0155 OHM SM Samsung Electro-Mechanics |
188,807 |
|
- |
|
CIGW | 1515 (4040 Metric) | Tape & Reel (TR) | Active | Wirewound | Metal Composite | 1 µH | ±20% | 9.3 A | 7.9A | Shielded | 15.5mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1515 | 0.161" L x 0.150" W (4.10mm x 3.80mm) | 0.047" (1.20mm) |
|
|
CIGW404020KMR47MLFFIXED IND 0.47UH 12.8A .0069 OHM Samsung Electro-Mechanics |
120,398 |
|
Datasheet |
|
CIGW | 1515 (4040 Metric) | Tape & Reel (TR) | Active | Wirewound | Metal Composite | 470 nH | ±20% | 12.7 A | 12.8A | Shielded | 6.9mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1515 | 0.161" L x 0.150" W (4.10mm x 3.80mm) | 0.047" (1.20mm) |
|
|
CIGW404020KMR68MLFFIXED IND 0.68UH 10.1A .0084 OHM Samsung Electro-Mechanics |
135,570 |
|
- |
|
CIGW | 1515 (4040 Metric) | Tape & Reel (TR) | Active | Wirewound | Metal Composite | 680 nH | ±20% | 10.8 A | 10.1A | Shielded | 8.4mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1515 | 0.161" L x 0.150" W (4.10mm x 3.80mm) | 0.047" (1.20mm) |
|
|
CIGW404020KM1R2MLFFIXED IND 1.2UH 7.7A 0.0165 OHM Samsung Electro-Mechanics |
116,658 |
|
- |
|
CIGW | 1515 (4040 Metric) | Tape & Reel (TR) | Active | Wirewound | Metal Composite | 1.2 µH | ±20% | 8.5 A | 7.7A | Shielded | 16.5mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1515 | 0.161" L x 0.150" W (4.10mm x 3.80mm) | 0.047" (1.20mm) |
-2,00x1,60x,80mm.jpg)
|
CIGT2016R6MH100MNEFIXED IND 10UH 450MA 1.4 OHM SMD Samsung Electro-Mechanics |
163,264 |
|
- |
|
CIGT | 0806 (2016 Metric) | Tape & Reel (TR) | Active | Thin Film | Metal Composite | 10 µH | ±20% | 450 mA | 600mA | Shielded | 1.4Ohm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 0806 (2016 Metric) | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.026" (0.65mm) |
-4,1x3,8x1,20mm.jpg)
|

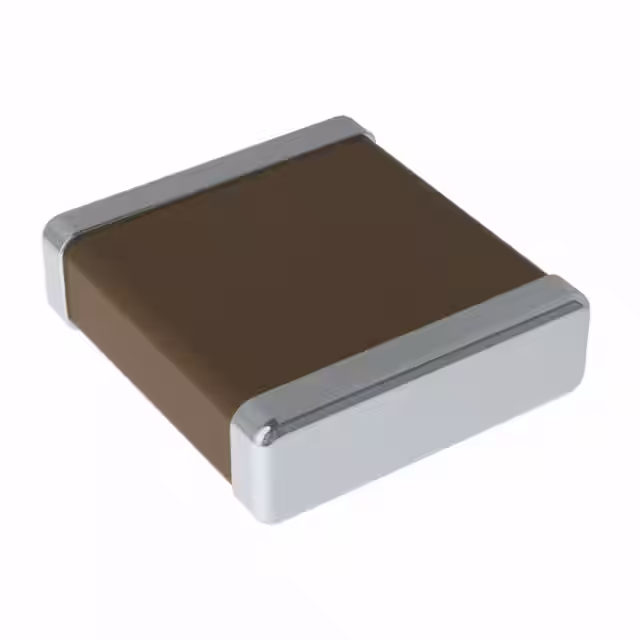

CIGW404012GM1R0MLEFIXED IND 1UH 4.8A 25 MOHM SMD Samsung Electro-Mechanics |
100,888 |
|
- |
|
CIGW | 1616 (4040 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 1 µH | ±20% | 4.8 A | 6A | Shielded | 25mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1616 | 0.161" L x 0.150" W (4.10mm x 3.80mm) | 0.047" (1.20mm) |
|
CIGW404012GM2R2MLEFIXED IND 2.2UH SMD Samsung Electro-Mechanics |
174,090 |
|
- |
|
CIGW | - | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 2.2 µH | ±20% | - | - | Shielded | - | - | - | - | - | 1 MHz | - | Surface Mount | 1515 (4040 Metric) | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.047" (1.20mm) |
|
|
CIGW404012GM4R7MLEFIXED IND 4.7UH SMD Samsung Electro-Mechanics |
167,786 |
|
- |
|
CIGW | - | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 4.7 µH | ±20% | - | - | Shielded | - | - | - | - | - | 1 MHz | - | Surface Mount | 1515 (4040 Metric) | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.047" (1.20mm) |
|
|
CIGW404012GMR47MLEFIXED IND 470NH 6A 17 MOHM SMD Samsung Electro-Mechanics |
116,660 |
|
Datasheet |
|
CIGW | 1616 (4040 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 470 nH | ±20% | 6 A | 9.4A | Shielded | 17mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1616 | 0.161" L x 0.150" W (4.10mm x 3.80mm) | 0.047" (1.20mm) |
