Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | RoHs | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
104CDMCCDS-R36MCFIXED IND 360NH 32A 1.2MOHM SMD Sumida America Components Inc. |
114,285 |
|
Datasheet |
 |
104CDMC/DS | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 360 nH | ±20% | 32 A | 52A | Shielded | 1.2mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | SMD | 0.453" L x 0.394" W (11.50mm x 10.00mm) | 0.157" (4.00mm) |
|

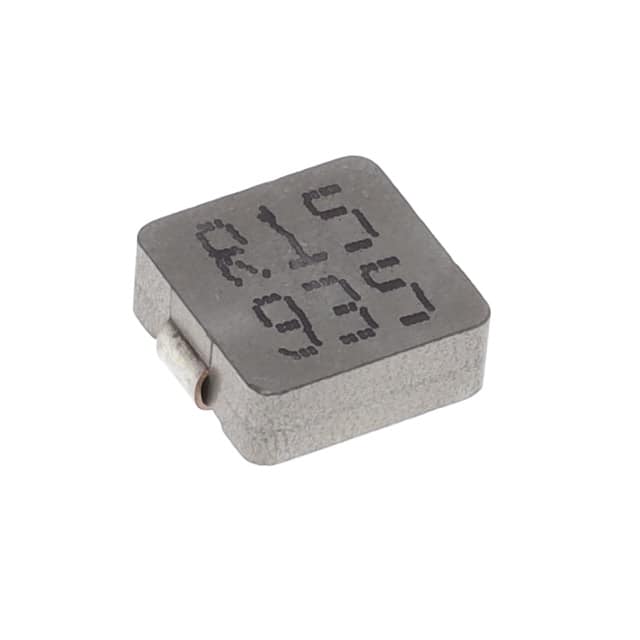

104CDMCCDS-R15MCFIXED IND 150NH 43A 0.65MOHM SMD Sumida America Components Inc. |
198,225 |
|
Datasheet |
|
104CDMC/DS | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 150 nH | ±20% | 43 A | 71A | Shielded | 0.65mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | SMD | 0.453" L x 0.394" W (11.50mm x 10.00mm) | 0.157" (4.00mm) |
|
CDRH50D28BT150NP-470MCFIXED IND 47UH 760MA 430MOHM SMD Sumida America Components Inc. |
169,908 |
|
Datasheet |
|
CDRH50D28B/T150 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 47 µH | ±20% | 760 mA | 780mA | Shielded | 430mOhm | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.209" L x 0.197" W (5.30mm x 5.00mm) | 0.118" (3.00mm) |
|

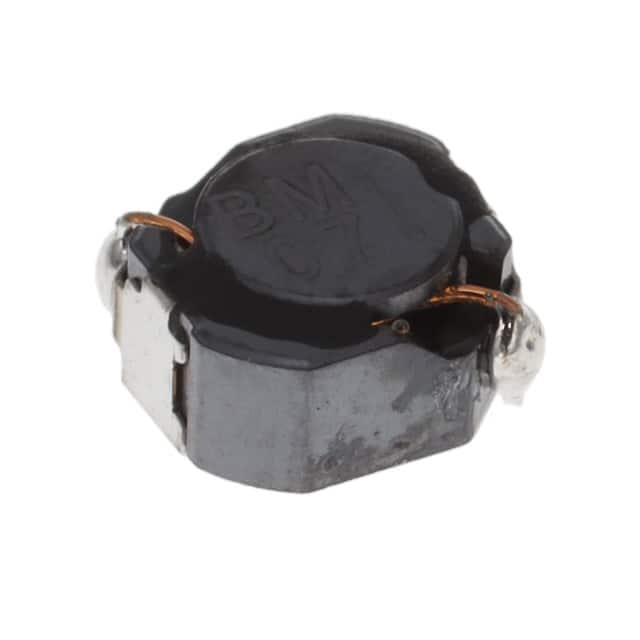

CDRH50D28BT150NP-1R5NCFIXED IND 1.5UH 3.4A 20MOHM SMD Sumida America Components Inc. |
110,018 |
|
Datasheet |
|
CDRH50D28B/T150 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 1.5 µH | ±30% | 3.4 A | 5.5A | Shielded | 20mOhm | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.209" L x 0.197" W (5.30mm x 5.00mm) | 0.118" (3.00mm) |
|

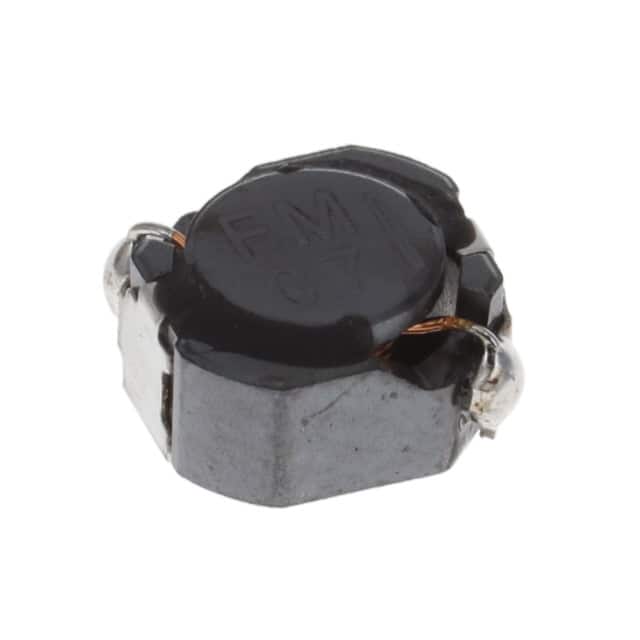

CDRH50D28BT150NP-6R8NCFIXED IND 6.8UH 1.92A 75MOHM SMD Sumida America Components Inc. |
152,793 |
|
Datasheet |
|
CDRH50D28B/T150 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 6.8 µH | ±30% | 1.92 A | 2A | Shielded | 75mOhm | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.209" L x 0.197" W (5.30mm x 5.00mm) | 0.118" (3.00mm) |
|

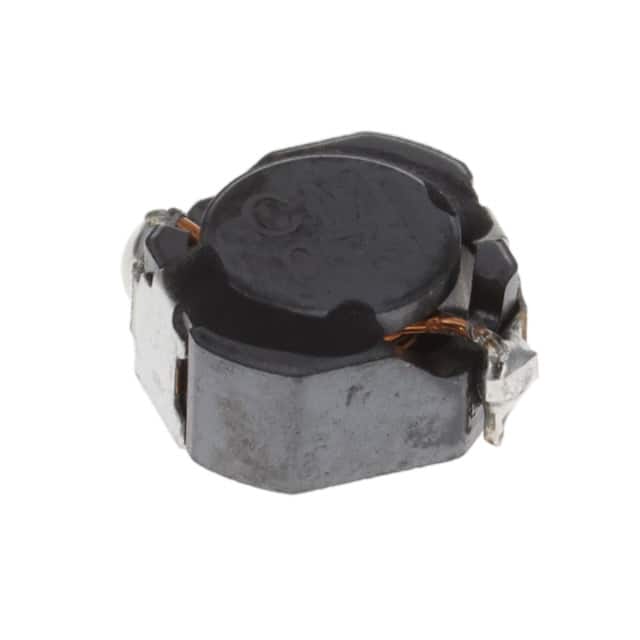

CDRH50D28BT150NP-2R2NCFIXED IND 2.2UH 3.2A 26MOHM SMD Sumida America Components Inc. |
153,053 |
|
Datasheet |
|
CDRH50D28B/T150 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 2.2 µH | ±30% | 3.2 A | 3.5A | Shielded | 26mOhm | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.209" L x 0.197" W (5.30mm x 5.00mm) | 0.118" (3.00mm) |
|

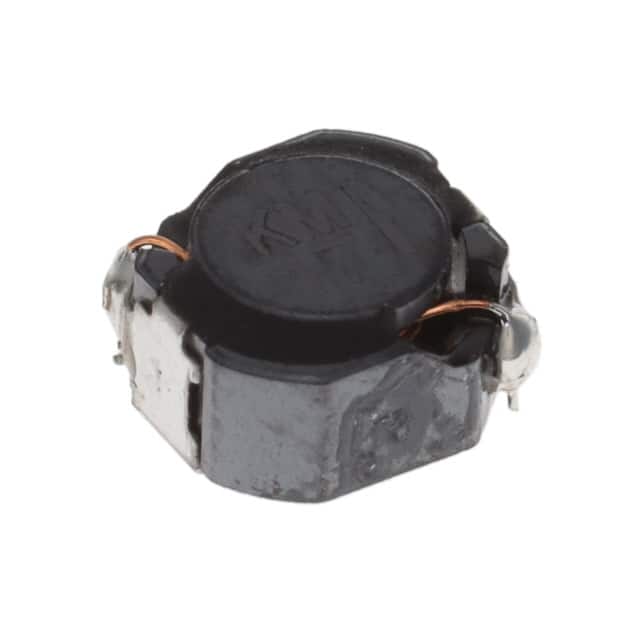

CDRH50D28BT150NP-330MCFIXED IND 33UH 900MA 280MOHM SMD Sumida America Components Inc. |
118,812 |
|
Datasheet |
|
CDRH50D28B/T150 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 33 µH | ±20% | 900 mA | 930mA | Shielded | 280mOhm | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.209" L x 0.197" W (5.30mm x 5.00mm) | 0.118" (3.00mm) |
|
CDRH103RNP-100NC-BFIXED IND 10UH 2.8A 59 MOHM SMD Sumida America Components Inc. |
134,158 |
|
Datasheet |
|
CDRH103R | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 10 µH | ±30% | 2.8 A | 3.18A | Shielded | 59mOhm Max | - | - | - | -40°C ~ 100°C | 100 kHz | - | Surface Mount | - | 0.402" L x 0.394" W (10.20mm x 10.00mm) | 0.122" (3.10mm) |
|
CDRH8D28HPNP-4R7NCFIXED IND 4.7UH 3.6A 40 MOHM SMD Sumida America Components Inc. |
167,941 |
|
Datasheet |
|
CDRH8D28/HP | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 4.7 µH | ±30% | 3.6 A | 4.5A | Shielded | 40mOhm Max | - | - | - | -40°C ~ 100°C | 100 kHz | - | Surface Mount | - | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.118" (3.00mm) |
|
CDRR75NP-331MCFIXED IND 330UH 450MA 1.05OHM SM Sumida America Components Inc. |
120,253 |
|
Datasheet |
|
CDRR | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 330 µH | ±20% | 450 mA | 250mA | Shielded | 1.05Ohm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.272" L x 0.272" W (6.90mm x 6.90mm) | 0.189" (4.80mm) |
