Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | RoHs | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
L08053R3CEWTRFIXED IND 3.3NH 750MA 110MOHM SM |
132,619 |
|
Datasheet |
 |
Accu-L® | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Thin Film | Non-Magnetic | 3.3 nH | ±0.2nH | 750 mA | - | Unshielded | 110mOhm Max | 38 @ 450MHz | 10GHz | - | -55°C ~ 125°C | 450 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.083" L x 0.059" W (2.11mm x 1.50mm) | 0.041" (1.04mm) |
|
74406043101FIXED IND 100UH 620MA 600MOHM SM |
122,109 |
|
Datasheet |
|
WE-LQFS | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 100 µH | ±20% | 620 mA | 370mA | Shielded | 600mOhm Max | - | 11MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 4828 | 0.189" L x 0.189" W (4.80mm x 4.80mm) | 0.118" (3.00mm) |
|
PA4340.472ANLTFIXED IND 4.7UH 5.5A 44 MOHM SMD |
112,690 |
|
Datasheet |
|
PA4340.XXXANLT | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 4.7 µH | ±20% | 5.5 A | 5.3A | Shielded | 44mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.224" L x 0.205" W (5.70mm x 5.20mm) | 0.118" (3.00mm) |
|
ETQ-P3M2R2KVNFIXED IND 2.2UH 7.9A 15.95 MOHM |
197,126 |
|
Datasheet |
|
PCC-M0630M-LP | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 2.2 µH | ±20% | 7.9 A | 12.8A | Shielded | 15.95mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.252" L x 0.236" W (6.40mm x 6.00mm) | 0.118" (3.00mm) |
|

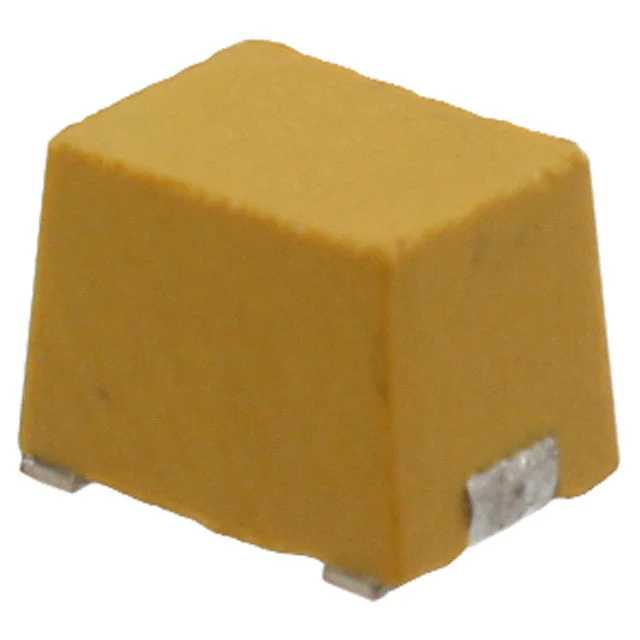

IMC1812ER100KFIXED IND 10UH 250MA 1.6 OHM SMD |
147,554 |
|
Datasheet |
|
IMC-1812 | 1812 (4532 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 10 µH | ±10% | 250 mA | - | Unshielded | 1.6Ohm Max | 50 @ 2.52MHz | 20MHz | - | -55°C ~ 125°C | 2.52 MHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
|
SRU8043-330YFIXED IND 33UH 1.7A 100 MOHM SMD |
146,396 |
|
Datasheet |
|
SRU8043 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 33 µH | ±30% | 1.7 A | 1.4A | Shielded | 100mOhm | 21 @ 2.52MHz | 11MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.181" (4.60mm) |
|
104CDMCCDS-150MCFIXED IND 15UH 6.3A 45 MOHM SMD |
189,319 |
|
Datasheet |
|
104CDMC/DS | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 15 µH | ±20% | 6.3 A | 7.2A | Shielded | 45mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | SMD | 0.453" L x 0.394" W (11.50mm x 10.00mm) | 0.157" (4.00mm) |
|
DR1040-220-RFIXED IND 22UH 2.5A 73 MOHM SMD |
107,402 |
|
Datasheet |
|
DR1040 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 22 µH | ±30% | 2.5 A | 2.9A | Shielded | 73mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.413" L x 0.406" W (10.50mm x 10.30mm) | 0.157" (4.00mm) |
|
|
PA4340.102ANLTFIXED IND 1UH 9A 12 MOHM SMD |
169,059 |
|
Datasheet |
|
PA4340.XXXANLT | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 1 µH | ±20% | 9 A | 8.5A | Shielded | 12mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.224" L x 0.205" W (5.70mm x 5.20mm) | 0.118" (3.00mm) |
|
|
ETQ-P3M6R8KVNFIXED IND 6.8UH 4.5A 50.16 MOHM |
123,084 |
|
Datasheet |
|
PCC-M0630M-LP | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 6.8 µH | ±20% | 4.5 A | 8.1A | Shielded | 50.16mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.252" L x 0.236" W (6.40mm x 6.00mm) | 0.118" (3.00mm) |
|
104CDMCCDS-6R8MCFIXED IND 6.8UH 8.5A 25MOHM SMD |
108,247 |
|
Datasheet |
|
104CDMC/DS | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 6.8 µH | ±20% | 8.5 A | 12.5A | Shielded | 25mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | SMD | 0.453" L x 0.394" W (11.50mm x 10.00mm) | 0.157" (4.00mm) |
|
|
74406043100FIXED IND 10UH 1.77A 86 MOHM SMD |
171,984 |
|
Datasheet |
|
WE-LQFS | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 1.77 A | 1.22A | Shielded | 86mOhm Max | - | 45MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 4828 | 0.189" L x 0.189" W (4.80mm x 4.80mm) | 0.118" (3.00mm) |
|
SRP4020CC-2R2MIND SMD 2.2UH 4A |
135,174 |
|
Datasheet |
|
SRP4020CC | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Carbonyl Powder | 2.2 µH | ±20% | 4 A | 6A | Shielded | 61mOhm Max | - | 45MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.175" L x 0.160" W (4.45mm x 4.06mm) | 0.079" (2.00mm) |
|
CDRH8D38NP-150NCFIXED IND 15UH 2.5A 67 MOHM SMD |
159,922 |
|
Datasheet |
|
CDRH8D38 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 15 µH | ±30% | 2.5 A | 2.75A | Shielded | 67mOhm Max | - | - | - | -40°C ~ 100°C | 100 kHz | - | Surface Mount | - | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.157" (4.00mm) |
|

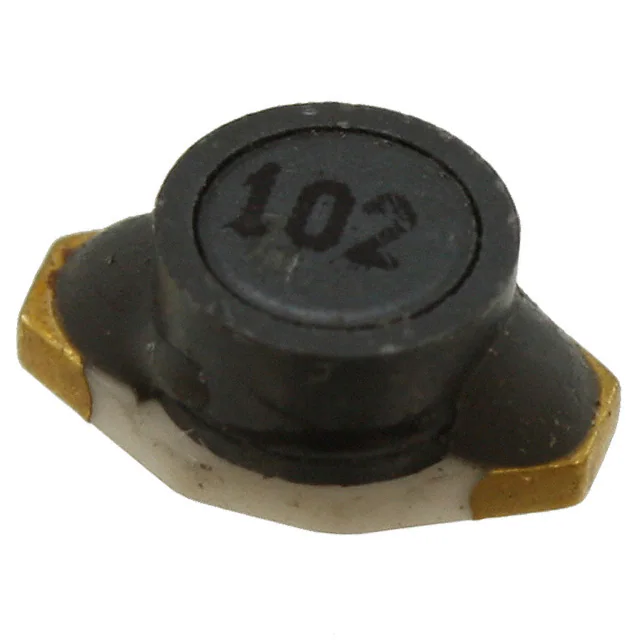

SRE6603-103MFIXED IND 10MH 20MA 32.8 OHM SMD |
194,086 |
|
Datasheet |
|
SRE6603 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 mH | ±20% | 20 mA | 17mA | Shielded | 32.8Ohm Max | 50 @ 100kHz | 800kHz | - | -25°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.260" L x 0.175" W (6.60mm x 4.45mm) | 0.115" (2.92mm) |
|
IHLP1212BZERR88M11FIXED IND 880NH 5.5A 22 MOHM SMD |
190,662 |
|
Datasheet |
|
IHLP-1212BZ-11 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 880 nH | ±20% | 5.5 A | 4.5A | Shielded | 22mOhm Max | - | 85MHz | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.144" L x 0.118" W (3.65mm x 3.00mm) | 0.079" (2.00mm) |
|
7447732110FIXED IND 10UH 800MA 300MOHM SMD |
171,050 |
|
Datasheet |
|
WE-PD2 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 10 µH | ±20% | 800 mA | 1.23A | Unshielded | 300mOhm Max | - | 45MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 3521 | 0.138" L x 0.118" W (3.50mm x 3.00mm) | 0.094" (2.40mm) |
|
|
CDRH8D38NP-100NCFIXED IND 10UH 3.2A 48 MOHM SMD |
183,267 |
|
Datasheet |
|
CDRH8D38 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 10 µH | ±30% | 3.2 A | 3A | Shielded | 48mOhm Max | - | - | - | -40°C ~ 100°C | 100 kHz | - | Surface Mount | - | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.157" (4.00mm) |
|
BMRF001010401R0MD1FIXED IND 1UH 20A 3.1 MOHM SMD |
103,184 |
|
Datasheet |
|
BMRF | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 1 µH | ±20% | 20 A | 26A | Shielded | 3.1mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.457" L x 0.398" W (11.60mm x 10.10mm) | 0.157" (4.00mm) |
|
CR75NP-100KCFIXED IND 10UH 2.3A 70 MOHM SMD |
166,122 |
|
Datasheet |
|
CR75 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±10% | 2.3 A | - | Unshielded | 70mOhm Max | - | 28MHz | - | -40°C ~ 100°C | 2.52 MHz | - | Surface Mount | - | 0.307" L x 0.276" W (7.80mm x 7.00mm) | 0.217" (5.50mm) |
