Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | RoHs | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LCXND5050YAL2R2NMGFIXED IND 2.2UH 3.7A 28.6MOHM SM Taiyo Yuden |
158,626 |
|
Datasheet |
 |
LCXN | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 2.2 µH | ±30% | 3.7 A | 5A | Unshielded | 22mOhm | - | 42MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.193" L x 0.193" W (4.90mm x 4.90mm) | 0.161" (4.10mm) |
|
LCXHF6060YEL1R5NMRFIXED IND 1.5UH 3.4A 19MOHM SMD Taiyo Yuden |
143,628 |
|
Datasheet |
|
LCXH | 2424 (6060 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 1.5 µH | ±30% | 3.4 A | 10A | Unshielded | 19mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 2424 | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.177" (4.50mm) |
|
LCXHF6060YEL101MMRFIXED IND 100UH 550MA 600MOHM SM Taiyo Yuden |
165,558 |
|
Datasheet |
|
LCXH | 2424 (6060 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 100 µH | ±20% | 550 mA | 1.05A | Unshielded | 600mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 2424 | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.177" (4.50mm) |
|
LCXND5050YAL100MMGFIXED IND 10UH 2.1A 72.8MOHM SMD Taiyo Yuden |
196,906 |
|
Datasheet |
|
LCXN | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 10 µH | ±20% | 2.1 A | 2.3A | Unshielded | 56mOhm | - | 18MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.193" L x 0.193" W (4.90mm x 4.90mm) | 0.161" (4.10mm) |
|

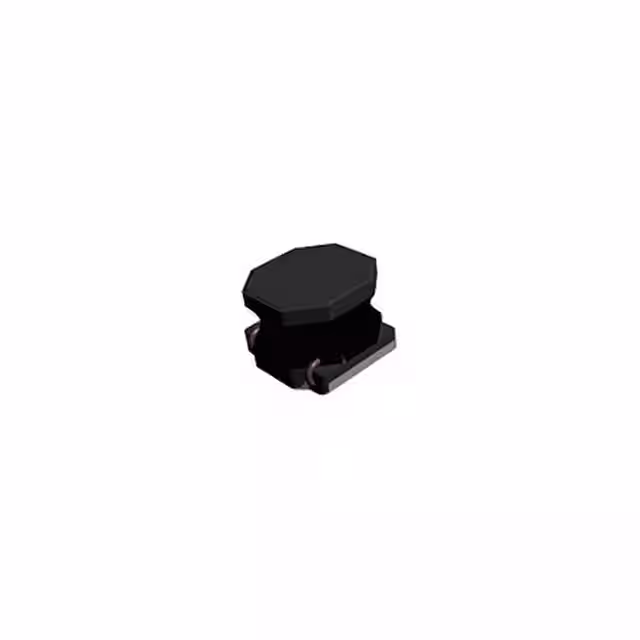

LCXHF6060YEL2R2NMRFIXED IND 2.2UH 3A 23 MOHM SMD Taiyo Yuden |
187,855 |
|
Datasheet |
|
LCXH | 2424 (6060 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 2.2 µH | ±30% | 3 A | 8.5A | Unshielded | 23mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 2424 | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.177" (4.50mm) |
|
LCXND5050WDL2R2NMGFIXED IND 2.2UH 3.1A 34.8MOHM SM Taiyo Yuden |
180,204 |
|
Datasheet |
|
LCXN | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 2.2 µH | ±30% | 3.1 A | 4.1A | Unshielded | 29mOhm | - | 51MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.193" L x 0.193" W (4.90mm x 4.90mm) | 0.094" (2.40mm) |
|
LCXND5050WEL1R0NMGFIXED IND 1UH 4.4A 19.2 MOHM SMD Taiyo Yuden |
150,270 |
|
Datasheet |
|
LCXN | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 1 µH | ±30% | 4.4 A | 5.8A | Unshielded | 16mOhm | - | 85MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.193" L x 0.193" W (4.90mm x 4.90mm) | 0.098" (2.50mm) |
|
LCXND5050WDL100MMGFIXED IND 10UH 1.2A 150 MOHM SMD Taiyo Yuden |
110,737 |
|
Datasheet |
|
LCXN | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 10 µH | ±20% | 1.2 A | 1.7A | Unshielded | 125mOhm | - | 21MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.193" L x 0.193" W (4.90mm x 4.90mm) | 0.094" (2.40mm) |
|

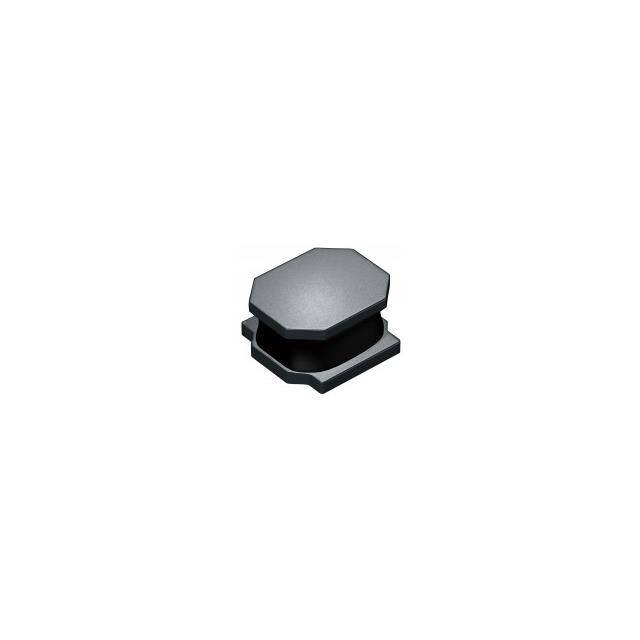

LCXND5050WEL1R5NMGFIXED IND 1.5UH 3.6A 26.4MOHM SM Taiyo Yuden |
102,876 |
|
Datasheet |
|
LCXN | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 1.5 µH | ±30% | 3.6 A | 5.2A | Unshielded | 22mOhm | - | 67MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.193" L x 0.193" W (4.90mm x 4.90mm) | 0.098" (2.50mm) |
|
LCXND5050WDL150MMGFIXED IND 15UH 1A 204 MOHM SMD Taiyo Yuden |
182,171 |
|
Datasheet |
|
LCXN | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 15 µH | ±20% | 1 A | 1.4A | Unshielded | 170mOhm | - | 18MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.193" L x 0.193" W (4.90mm x 4.90mm) | 0.094" (2.40mm) |
