Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | RoHs | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
NR6028T680MFIXED IND 68UH 770MA 546MOHM SMD Taiyo Yuden |
190,534 |
|
Datasheet |
 |
NR | Nonstandard | Tape & Reel (TR) | Not For New Designs | Drum Core, Wirewound | Ferrite | 68 µH | ±20% | 770 mA | 760mA | Shielded | 546mOhm Max | - | 5MHz | - | -25°C ~ 120°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.110" (2.80mm) |
|
NRS6028T2R2NMGJFIXED IND 2.2UH 3.7A 26 MOHM SMD Taiyo Yuden |
171,861 |
|
- |
|
NR, S Type | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2.2 µH | ±30% | 3.7 A | 4.2A | Shielded | 26mOhm Max | - | 68MHz | - | -25°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.110" (2.80mm) |
|
|
NRS6028T4R7MMGKFIXED IND 4.7UH 3A 40.3 MOHM SMD Taiyo Yuden |
158,466 |
|
- |
|
NR, S Type | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 4.7 µH | ±20% | 3 A | 2.7A | Shielded | 40.3mOhm Max | - | 39MHz | - | -25°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.110" (2.80mm) |
|
|
NRS3015T1R0NNGHVFIXED IND 1UH 2.1A 36 MOHM SMD Taiyo Yuden |
183,568 |
|
Datasheet |
|
NR, S Type | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1 µH | ±30% | 2.1 A | 2.1A | Shielded | 36mOhm Max | - | 100MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.059" (1.50mm) |
|
|
NRS6028T150MMGJFIXED IND 15UH 1.8A 123.5MOHM SM Taiyo Yuden |
165,151 |
|
- |
|
NR, S Type | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 15 µH | ±20% | 1.8 A | 1.6A | Shielded | 123.5mOhm Max | - | 17MHz | - | -25°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.110" (2.80mm) |
|

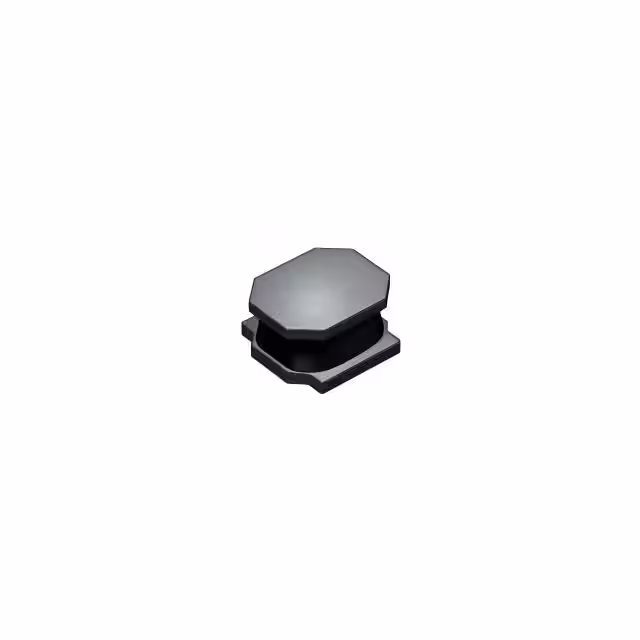

LSXND6060WHL4R7MMGFIXED IND 4.7UH 3A 40.3 MOHM SMD Taiyo Yuden |
161,565 |
|
- |
|
LSXN | 2424 (6060 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 4.7 µH | ±20% | 3 A | 2.7A | Shielded | 40.3mOhm Max | - | 39MHz | - | -25°C ~ 125°C | 100 kHz | - | Surface Mount | 2424 | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.110" (2.80mm) |
|
NRS6045T470MMGKFIXED IND 47UH 1.15A 274.3 MOHM Taiyo Yuden |
111,028 |
|
- |
|
NR, S Type | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 47 µH | ±20% | 1.15 A | 1.4A | Shielded | 274.3mOhm Max | - | 5MHz | - | -25°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.177" (4.50mm) |
|
MEKK2016H1R0MFIXED IND 1UH 3.5A 48 MOHM SMD Taiyo Yuden |
143,402 |
|
Datasheet |
|
MCOIL™, ME | 0806 (2016 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 1 µH | ±20% | 3.5 A | 4A | Shielded | 48mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 0806 (2016 Metric) | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.039" (1.00mm) |
|
|
NRS6045T6R3MMGKFIXED IND 6.3UH 3A 46.8 MOHM SMD Taiyo Yuden |
156,751 |
|
- |
|
NR, S Type | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 6.3 µH | ±20% | 3 A | 3.6A | Shielded | 46.8mOhm Max | - | 15MHz | - | -25°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.177" (4.50mm) |
|

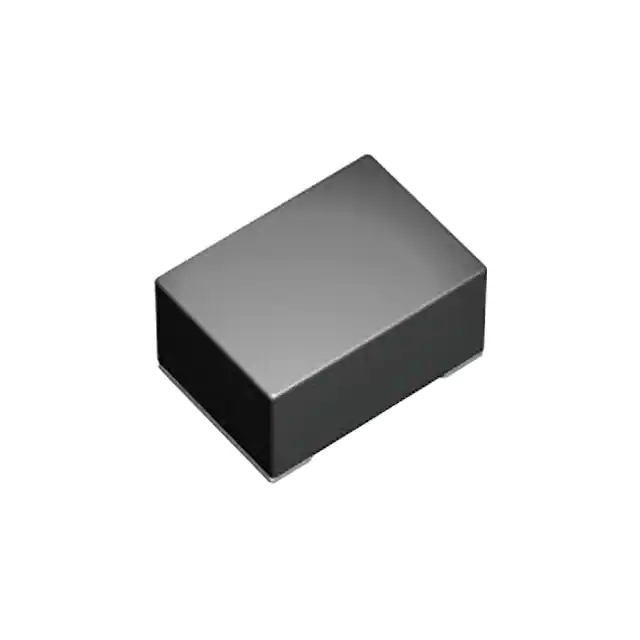

MEKK2016H2R2MFIXED IND 2.2UH 2.3A 100MOHM SMD Taiyo Yuden |
134,272 |
|
Datasheet |
|
MCOIL™, ME | 0806 (2016 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 2.2 µH | ±20% | 2.3 A | 2.3A | Shielded | 100mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 0806 (2016 Metric) | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.039" (1.00mm) |
