Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | RoHs | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SLF10145T-150M2R2-PFFIXED IND 15UH 2.2A 56.6MOHM SMD |
113,200 |
|
Datasheet |
 |
SLF | Nonstandard | Tape & Reel (TR) | Last Time Buy | Drum Core, Wirewound | Ferrite | 15 µH | ±20% | 2.2 A | 2.4A | Shielded | 56.6mOhm Max | - | - | - | -40°C ~ 105°C | 1 kHz | - | Surface Mount | - | 0.398" L x 0.398" W (10.10mm x 10.10mm) | 0.189" (4.80mm) |
|
DR1040-330-RFIXED IND 33UH 2.2A 93 MOHM SMD |
155,518 |
|
Datasheet |
|
DR1040 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 33 µH | ±30% | 2.2 A | 2.45A | Shielded | 93mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.413" L x 0.406" W (10.50mm x 10.30mm) | 0.157" (4.00mm) |
|
CDPH4D19FNP-6R8MCFIXED IND 6.8UH 3.02A 50MOHM SMD |
137,987 |
|
Datasheet |
|
CDPH4D19F | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 6.8 µH | ±20% | 3.02 A | 1A | Shielded | 50mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.193" L x 0.193" W (4.90mm x 4.90mm) | 0.079" (2.00mm) |
|
ETQ-P4M330KVCFIXED IND 33UH 4.2A 93.06MOHM SM |
123,384 |
|
Datasheet |
|
PCC-M1040M-LP | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 33 µH | ±20% | 4.2 A | 5.6A | Shielded | 93.06mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.421" L x 0.394" W (10.70mm x 10.00mm) | 0.157" (4.00mm) |
.jpg)
|
74479787210AFIXED IND 1UH 1.7A 55 MOHM SMD |
102,960 |
|
Datasheet |
|
WE-PMI | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Multilayer | - | 1 µH | ±20% | 1.7 A | 1A | Shielded | 55mOhm | 15 @ 1MHz | 90MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.102" L x 0.083" W (2.60mm x 2.10mm) | 0.075" (1.90mm) |
.jpg)
|
74479775233FIXED IND 3.3UH 1A 200 MOHM SMD |
144,649 |
|
Datasheet |
|
WE-PMI | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Multilayer | - | 3.3 µH | ±20% | 1 A | 280mA | Unshielded | 200mOhm | 25 @ 1MHz | 30MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 0805 | 0.079" L x 0.047" W (2.00mm x 1.20mm) | 0.039" (1.00mm) |
|
|
74479887268AFIXED IND 6.8UH 950MA 250MOHM SM |
114,365 |
|
Datasheet |
|
WE-PMI | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Multilayer | - | 6.8 µH | ±20% | 950 mA | 300mA | Shielded | 250mOhm | 25 @ 1MHz | 30MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.039" (1.00mm) |
|
|
ETQ-P4M150KVCFIXED IND 15UH 6.3A 40.7MOHM SMD |
137,878 |
|
Datasheet |
|
PCC-M1040M-LP | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 15 µH | ±20% | 6.3 A | 9.2A | Shielded | 40.7mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.421" L x 0.394" W (10.70mm x 10.00mm) | 0.157" (4.00mm) |
|

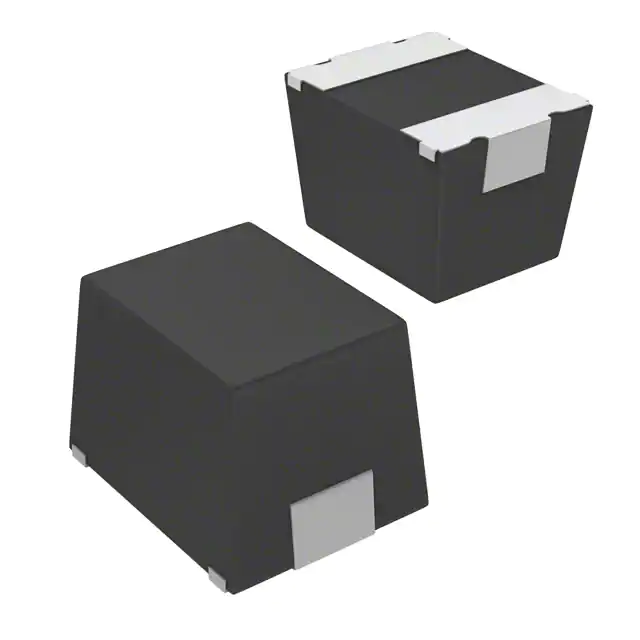

ISC1210ER101KFIXED IND 100UH 80MA 12 OHM SMD |
146,293 |
|
Datasheet |
|
ISC-1210 | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 100 µH | ±10% | 80 mA | - | Shielded | 12Ohm Max | 30 @ 796kHz | 6MHz | - | -55°C ~ 125°C | 796 kHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.49mm) | 0.095" (2.41mm) |
|
DR125-101-RFIXED IND 100UH 1.78A 170MOHM SM |
117,831 |
|
Datasheet |
|
DR | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 100 µH | ±20% | 1.78 A | 2.2A | Shielded | 170mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.236" (6.00mm) |
|
IHLP1212BZEV3R3M5AFIXED IND 3.3UH 3.26A 96.79MOHM |
150,279 |
|
Datasheet |
|
IHLP | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 3.3 µH | ±20% | 3.26 A | 2.52A | Shielded | 96.79mOhm Max | - | 40MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.140" L x 0.130" W (3.56mm x 3.30mm) | 0.079" (2.00mm) |
|
|
IHLP1212BZEV1R0M5AFIXED IND 1UH 5.73A 30.17MOHM SM |
197,899 |
|
Datasheet |
|
IHLP | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 1 µH | ±20% | 5.73 A | 3.64A | Shielded | 30.17mOhm Max | - | 81MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.140" L x 0.130" W (3.56mm x 3.30mm) | 0.079" (2.00mm) |
|
IHLP2020CZER150M8AFIXED IND 15UH 2.4A 208MOHM SMD |
138,658 |
|
Datasheet |
|
IHLP-2020CZ-8A | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 15 µH | ±20% | 2.4 A | 1.6A | Shielded | 208mOhm Max | - | 14.1MHz | AEC-Q200 | -55°C ~ 180°C | 100 kHz | - | Surface Mount | - | 0.204" L x 0.204" W (5.18mm x 5.18mm) | 0.118" (3.00mm) |
|
74479777310AWE-PMI POWER MULTILAYER INDUCTOR |
199,594 |
|
Datasheet |
|
WE-PMI | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Multilayer | - | 10 µH | ±20% | 900 mA | 120mA | Shielded | 375mOhm Max | 20 @ 1MHz | 35MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 0805 | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.055" (1.40mm) |
|
|
DR125-221-RFIXED IND 220UH 1.19A 384MOHM SM |
181,993 |
|
Datasheet |
|
DR | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 220 µH | ±20% | 1.19 A | 1.51A | Shielded | 384mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.236" (6.00mm) |
|
|
DR125-6R8-RFIXED IND 6.8UH 6.64A 12.3 MOHM |
111,182 |
|
Datasheet |
|
DR | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 6.8 µH | ±20% | 6.64 A | 8.68A | Shielded | 12.3mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.236" (6.00mm) |
|
|
DR125-150-RFIXED IND 15UH 4.27A 29.8MOHM SM |
109,932 |
|
Datasheet |
|
DR | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 15 µH | ±20% | 4.27 A | 5.69A | Shielded | 29.8mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.236" (6.00mm) |
|

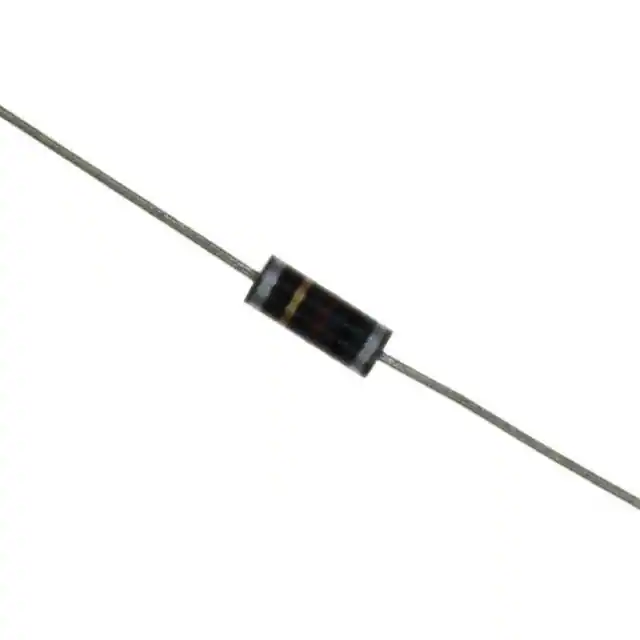

9230-44-RCFIXED IND 10UH 180MA 3.7 OHM TH |
116,118 |
|
Datasheet |
|
9230 | Axial | Bulk | Active | Molded | Ferrite | 10 µH | ±10% | 180 mA | - | Unshielded | 3.7Ohm Max | 55 @ 7.9MHz | 50MHz | - | -55°C ~ 125°C | 7.9 MHz | - | Through Hole | - | 0.095" Dia x 0.250" L (2.41mm x 6.35mm) | - |
|
PA4341.152ANLTFIXED IND 1.5UH 10A 12.1MOHM SMD |
150,793 |
|
Datasheet |
|
PA4341.XXXANLT | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 1.5 µH | ±20% | 10 A | 14A | Shielded | 12.1mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.280" L x 0.260" W (7.10mm x 6.60mm) | 0.118" (3.00mm) |
|
|
PA4341.103ANLTFIXED IND 10UH 4A 68 MOHM SMD |
105,609 |
|
Datasheet |
|
PA4341.XXXANLT | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 10 µH | ±20% | 4 A | 5.5A | Shielded | 68mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.280" L x 0.260" W (7.10mm x 6.60mm) | 0.118" (3.00mm) |
