Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | RoHs | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
1.5mm.jpg)
|
74438335100FIXED IND 10UH 850MA 513MOHM SMD |
106,490 |
|
Datasheet |
 |
WE-MAPI | 1212 (3030 Metric) | Tape & Reel (TR) | Active | Molded | Metal Composite | 10 µH | ±20% | 850 mA | 2A | Shielded | 513mOhm Max | - | 21MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 3015 | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.059" (1.50mm) |
|
IHLP1616ABERR10M01FIXED IND 100NH 11.5A 6 MOHM SMD |
131,058 |
|
Datasheet |
|
IHLP-1616AB-01 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 100 nH | ±20% | 11.5 A | 25A | Shielded | 6mOhm Max | - | 277MHz | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.175" L x 0.160" W (4.45mm x 4.06mm) | 0.047" (1.20mm) |
|
74404063101FIXED IND 100UH 700MA 500MOHM SM |
135,821 |
|
Datasheet |
|
WE-LQS | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 100 µH | ±20% | 700 mA | 710mA | Shielded | 500mOhm | - | 8.8MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 6028 | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.110" (2.80mm) |
|
74404054470FIXED IND 47UH 1A 272 MOHM SMD |
185,928 |
|
Datasheet |
|
WE-LQS | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 47 µH | ±20% | 1 A | 1.2A | Shielded | 272mOhm | - | 10MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 5040 | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.157" (4.00mm) |
|

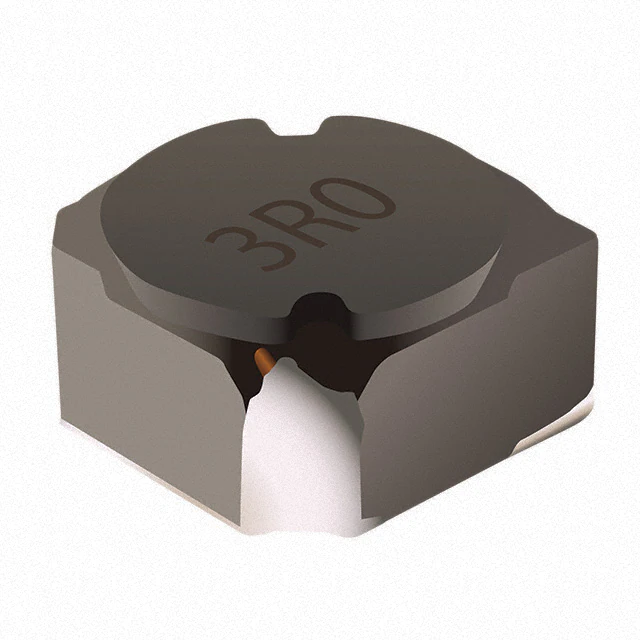

SRR6040A-330MFIXED IND 33UH 1.1A 120 MOHM SMD |
122,176 |
|
Datasheet |
|
SRR6040A | Nonstandard, Corner Terminals | Tape & Reel (TR) | Active | - | Ferrite | 33 µH | ±20% | 1.1 A | 1.02A | Shielded | 120mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 10 kHz | - | Surface Mount | - | 0.264" L x 0.264" W (6.70mm x 6.70mm) | 0.157" (4.00mm) |
|
74404064180FIXED IND 18UH 1.85A 81 MOHM SMD |
153,099 |
|
Datasheet |
|
WE-LQS | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 18 µH | ±20% | 2.2 A | 2.7A | Shielded | 81mOhm | - | 16MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 6045 | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.177" (4.50mm) |
1mm.jpg)
|
744383230033FIXED IND 330NH 3.4A 38 MOHM SMD |
198,967 |
|
Datasheet |
|
WE-MAPI | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Molded | Metal Composite | 330 nH | ±30% | 3.4 A | 6.2A | Shielded | 38mOhm Max | - | 180MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 2510 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.039" (1.00mm) |
|
|
74404064470FIXED IND 47UH 1.2A 200 MOHM SMD |
135,535 |
|
Datasheet |
|
WE-LQS | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 47 µH | ±20% | 1.4 A | 1.6A | Shielded | 200mOhm | - | 6.4MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 6045 | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.177" (4.50mm) |
|
78438324047WE-MAIA SMT POWER INDUCTOR 4.7 U |
180,779 |
|
Datasheet |
|
WE-MAIA | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Molded | Iron Alloy | 4.7 µH | ±20% | 1 A | 2.1A | Shielded | 345mOhm Max | - | 35MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 1008 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.047" (1.20mm) |
|
|
74438323015FIXED IND 1.5UH 1.8A 110MOHM SMD |
197,285 |
|
Datasheet |
|
WE-MAPI | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Molded | Metal Composite | 1.5 µH | ±20% | 1.8 A | 3.5A | Shielded | 110mOhm Max | - | 65MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 2510 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.039" (1.00mm) |
1mm.jpg)
|
74438333022FIXED IND 2.2UH 1.4A 172MOHM SMD |
144,087 |
|
Datasheet |
|
WE-MAPI | 1212 (3030 Metric) | Tape & Reel (TR) | Active | Molded | Metal Composite | 2.2 µH | ±20% | 1.4 A | 3.9A | Shielded | 172mOhm Max | - | 50MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 3010 | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.039" (1.00mm) |
|
|
74404054010FIXED IND 1UH 4.9A 12 MOHM SMD |
128,580 |
|
Datasheet |
|
WE-LQS | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1 µH | ±30% | 4.9 A | 8A | Shielded | 12mOhm | - | 187MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 5040 | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.157" (4.00mm) |
|
|
74404054022FIXED IND 2.2UH 3.8A 19 MOHM SMD |
110,643 |
|
Datasheet |
|
WE-LQS | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2.2 µH | ±30% | 3.8 A | 5.3A | Shielded | 19mOhm | - | 77MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 5040 | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.157" (4.00mm) |
|
|
74404054047FIXED IND 4.7UH 3A 30 MOHM SMD |
167,475 |
|
Datasheet |
|
WE-LQS | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 4.7 µH | ±30% | 3 A | 3.8A | Shielded | 30mOhm | - | 43MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 5040 | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.157" (4.00mm) |
|
|
74438335033FIXED IND 3.3UH 1.7A 131MOHM SMD |
105,442 |
|
Datasheet |
|
WE-MAPI | 1212 (3030 Metric) | Tape & Reel (TR) | Active | Molded | Metal Composite | 3.3 µH | ±20% | 1.7 A | 3.2A | Shielded | 131mOhm Max | - | 35MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 3015 | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.059" (1.50mm) |
|
|
74404064068FIXED IND 6.8UH 3A 31 MOHM SMD |
124,789 |
|
Datasheet |
|
WE-LQS | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 6.8 µH | ±20% | 3.2 A | 4.3A | Shielded | 31mOhm | - | 27MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 6045 | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.177" (4.50mm) |
|
|
74404054680FIXED IND 68UH 800MA 400MOHM SMD |
107,620 |
|
Datasheet |
|
WE-LQS | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 68 µH | ±20% | 800 mA | 990mA | Shielded | 400mOhm | - | 8.7MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 5040 | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.157" (4.00mm) |
|
|
74404064330FIXED IND 33UH 1.45A 137MOHM SMD |
163,732 |
|
Datasheet |
|
WE-LQS | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 33 µH | ±20% | 1.8 A | 2A | Shielded | 137mOhm | - | 12MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 6045 | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.177" (4.50mm) |
|
|
74404064680FIXED IND 68UH 1A 289 MOHM SMD |
195,800 |
|
Datasheet |
|
WE-LQS | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 68 µH | ±20% | 1.2 A | 1.4A | Shielded | 289mOhm | - | 7.6MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 6045 | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.177" (4.50mm) |
|
|
74404064220FIXED IND 22UH 1.8A 89 MOHM SMD |
187,801 |
|
Datasheet |
|
WE-LQS | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 22 µH | ±20% | 2.1 A | 2.5A | Shielded | 89mOhm | - | 15MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 6045 | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.177" (4.50mm) |
