Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | RoHs | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PA4990.331HLTFIXED IND 330NH 32A 0.125MOHM SM |
129,884 |
|
Datasheet |
 |
PA4990 | Nonstandard | Tape & Reel (TR) | Active | - | - | 330 nH | ±15% | 32 A | 40A | Shielded | 0.125mOhm | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.394" L x 0.236" W (10.00mm x 6.00mm) | 0.472" (12.00mm) |
|
IHLP1616BZERR10M51FIXED IND 0.1 UH 17.3 A 4.2 MOHM |
133,227 |
|
Datasheet |
|
IHLP-1616BZ-51 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 100 nH | ±20% | 17.3 A | 19A | Shielded | 4.2mOhm Max | - | 320MHz | - | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.175" L x 0.160" W (4.45mm x 4.06mm) | 0.079" (2.00mm) |
|
SRR1280-120MFIXED IND 12UH 5.6A 28 MOHM SMD |
176,484 |
|
Datasheet |
|
SRR1280 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 12 µH | ±20% | 5.6 A | 6.6A | Shielded | 28mOhm Max | 26 @ 2.52MHz | 15MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.315" (8.00mm) |
|
|
IHLP1616BZER4R7M5AFIXED IND 4.7UH 3.2 A 110 MOHM H |
182,739 |
|
Datasheet |
|
IHLP-1616BZ-5A | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 4.7 µH | ±20% | 3.2 A | 1.8A | Shielded | 110mOhm Max | - | 28MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.175" L x 0.160" W (4.45mm x 4.06mm) | 0.079" (2.00mm) |
|
SRR1240-221KFIXED IND 220UH 920MA 660MOHM SM |
184,241 |
|
Datasheet |
|
SRR1240 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 220 µH | ±10% | 920 mA | 900mA | Shielded | 660mOhm Max | 12 @ 796kHz | 6.6MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.177" (4.50mm) |
|
DFE32CAH3R3MR0LFIXED IND 3.3UH 3.3A |
172,986 |
|
Datasheet |
|
DFE32CAH_R0 | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Wirewound | Metal | 3.3 µH | ±20% | 2.3 A | 3.3A | Shielded | 67mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 1 MHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.079" (2.00mm) |
|
|
DFE32CAH1R5MR0LFIXED IND 1.5UH 4.8A |
112,206 |
|
Datasheet |
|
DFE32CAH_R0 | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Wirewound | Metal | 1.5 µH | ±20% | 3.5 A | 4.8A | Shielded | 30mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 1 MHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.079" (2.00mm) |
|
|
IHLP1616BZER1R0M5AFIXED IND 1UH 6.2 A 27.4 MOHM HI |
142,076 |
|
Datasheet |
|
IHLP-1616BZ-5A | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 1 µH | ±20% | 6.2 A | 4.8A | Shielded | 27.4mOhm Max | - | 63MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.175" L x 0.160" W (4.45mm x 4.06mm) | 0.079" (2.00mm) |
|
|
SRR1240-331KFIXED IND 330UH 750MA 950MOHM SM |
173,761 |
|
Datasheet |
|
SRR1240 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 330 µH | ±10% | 750 mA | 750mA | Shielded | 950mOhm Max | 12 @ 796kHz | 5.5MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.177" (4.50mm) |
|
|
DFE32CAH2R2MR0LFIXED IND 2.2UH 4A |
142,577 |
|
Datasheet |
|
DFE32CAH_R0 | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Wirewound | Metal | 2.2 µH | ±20% | 2.9 A | 4A | Shielded | 43mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 1 MHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.079" (2.00mm) |
|
|
SRR1240-4R7MFIXED IND 4.7UH 6A 18 MOHM SMD |
191,604 |
|
Datasheet |
|
SRR1240 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 4.7 µH | ±20% | 6 A | 5.6A | Shielded | 18mOhm Max | 16 @ 7.96MHz | 33MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.177" (4.50mm) |
|
|
SRR1240-680MFIXED IND 68UH 1.5A 200 MOHM SMD |
130,287 |
|
Datasheet |
|
SRR1240 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 68 µH | ±20% | 1.5 A | 1.5A | Shielded | 200mOhm Max | 19 @ 2.52MHz | 11MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.177" (4.50mm) |
|
|
SRR1280-4R7YFIXED IND 4.7UH 8.2A 15.5MOHM SM |
176,624 |
|
Datasheet |
|
SRR1280 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 4.7 µH | ±30% | 8.2 A | 8.8A | Shielded | 15.5mOhm Max | 22 @ 7.96MHz | 30MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.315" (8.00mm) |
|
|
SRR1280-820MFIXED IND 82UH 2.3A 130 MOHM SMD |
192,256 |
|
Datasheet |
|
SRR1280 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 82 µH | ±20% | 2.3 A | 2.2A | Shielded | 130mOhm Max | 20 @ 796kHz | 5MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.315" (8.00mm) |
|
PA4342.472NLTFIXED IND 4.7UH 10A 15.5MOHM SMD |
131,407 |
|
Datasheet |
|
PA4342.XXXNLT | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 4.7 µH | ±20% | 10 A | 17A | Shielded | 15.5mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.453" L x 0.406" W (11.50mm x 10.30mm) | 0.157" (4.00mm) |
|
P0751.153NLTFIXED IND 15UH 3A 55 MOHM SMD |
180,268 |
|
Datasheet |
|
P0751NL | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 15 µH | ±20% | 3 A | 3A | Unshielded | 55mOhm Max | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.510" L x 0.370" W (12.95mm x 9.40mm) | 0.215" (5.46mm) |
|

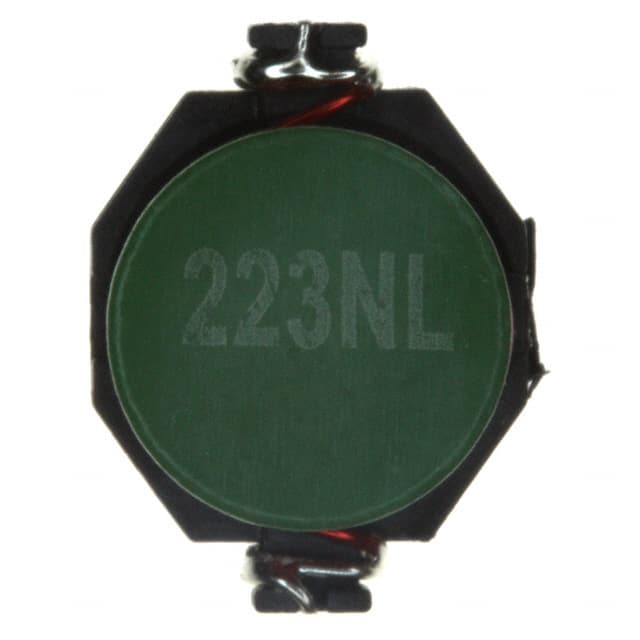

P0751.223NLTFIXED IND 22UH 2.6A 114 MOHM SMD |
107,118 |
|
Datasheet |
|
P0751NL | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 22 µH | ±20% | 2.6 A | 2.6A | Unshielded | 114mOhm Max | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.510" L x 0.370" W (12.95mm x 9.40mm) | 0.215" (5.46mm) |
|
|
IHLP1616BZERR47M5AFIXED IND 0.47UH 9.3 A 13.1 MOHM |
194,787 |
|
Datasheet |
|
IHLP-1616BZ-5A | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 470 nH | ±20% | 9.3 A | 6.9A | Shielded | 13.1mOhm Max | - | 103MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.175" L x 0.160" W (4.45mm x 4.06mm) | 0.079" (2.00mm) |
|
|
IHLP1616BZER2R2M5AFIXED IND 2.2UH 3.8 A 65 MOHM HI |
152,581 |
|
Datasheet |
|
IHLP-1616BZ-5A | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 2.2 µH | ±20% | 3.8 A | 4A | Shielded | 65mOhm Max | - | 37MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.175" L x 0.160" W (4.45mm x 4.06mm) | 0.079" (2.00mm) |
|
|
PA4342.153NLTFIXED IND 15UH 6.25A 45 MOHM SMD |
178,544 |
|
Datasheet |
|
PA4342.XXXNLT | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 15 µH | ±20% | 6.25 A | 10A | Shielded | 45mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.453" L x 0.406" W (11.50mm x 10.30mm) | 0.157" (4.00mm) |
