Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | RoHs | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
WL05JT18NFIXED IND 18NH 600MA 200MOHM SMD Viking Tech |
187,913 |
|
Datasheet |
 |
WL | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 18 nH | ±5% | 600 mA | - | Unshielded | 200mOhm Max | 50 @ 500MHz | 3.3GHz | AEC-Q200 | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0805 | 0.090" L x 0.068" W (2.29mm x 1.73mm) | 0.060" (1.52mm) |
|
|
WL05JT8N2FIXED IND 8.2NH 600MA 120MOHM SM Viking Tech |
128,624 |
|
Datasheet |
|
WL | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 8.2 nH | ±5% | 600 mA | - | Unshielded | 120mOhm Max | 50 @ 1GHz | 4.7GHz | AEC-Q200 | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0805 | 0.090" L x 0.068" W (2.29mm x 1.73mm) | 0.060" (1.52mm) |
|
|
WL02GT8N7FIXED IND 8.7NH 480MA 200MOHM SM Viking Tech |
140,320 |
|
Datasheet |
|
WL | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 8.7 nH | ±2% | 480 mA | - | Unshielded | 200mOhm Max | 18 @ 250MHz | 4.1GHz | AEC-Q200 | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0402 | 0.050" L x 0.030" W (1.27mm x 0.76mm) | 0.024" (0.61mm) |
|

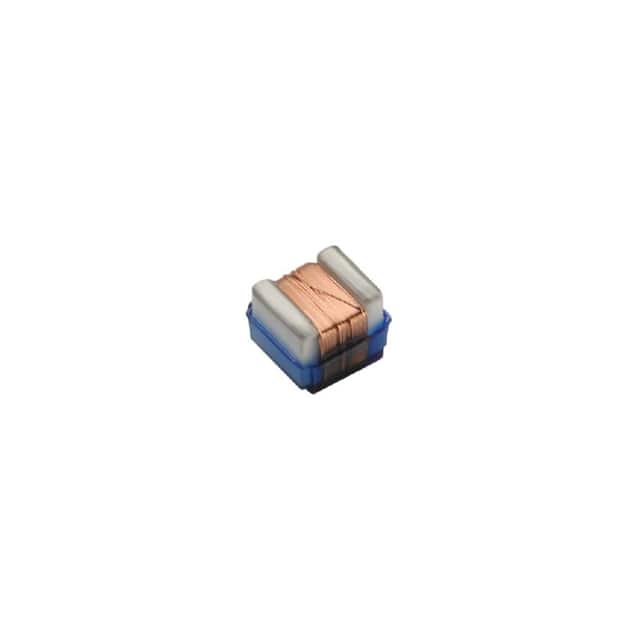

WL02JT22NFIXED IND 22NH 400MA 300MOHM SMD Viking Tech |
145,320 |
|
Datasheet |
|
WL | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 22 nH | ±5% | 400 mA | - | Unshielded | 300mOhm Max | 25 @ 250MHz | 2.8GHz | AEC-Q200 | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0402 | 0.050" L x 0.030" W (1.27mm x 0.76mm) | 0.024" (0.61mm) |
|
|
WL02JT7N5FIXED IND 7.5NH 680MA 104MOHM SM Viking Tech |
105,639 |
|
Datasheet |
|
WL | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 7.5 nH | ±5% | 680 mA | - | Unshielded | 104mOhm Max | 22 @ 250MHz | 4.8GHz | AEC-Q200 | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0402 | 0.050" L x 0.030" W (1.27mm x 0.76mm) | 0.024" (0.61mm) |
|
|
WL02GT18NFIXED IND 18NH 420MA 230MOHM SMD Viking Tech |
192,239 |
|
Datasheet |
|
WL | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 18 nH | ±2% | 420 mA | - | Unshielded | 230mOhm Max | 25 @ 250MHz | 3.1GHz | AEC-Q200 | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0402 | 0.050" L x 0.030" W (1.27mm x 0.76mm) | 0.024" (0.61mm) |
|
|
WL02JT15NFIXED IND 15NH 560MA 172MOHM SMD Viking Tech |
144,275 |
|
Datasheet |
|
WL | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 15 nH | ±5% | 560 mA | - | Unshielded | 172mOhm Max | 24 @ 250MHz | 3.28GHz | AEC-Q200 | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0402 | 0.050" L x 0.030" W (1.27mm x 0.76mm) | 0.024" (0.61mm) |
|
|
WL02JT5N6FIXED IND 5.6NH 760MA 83MOHM SMD Viking Tech |
144,660 |
|
Datasheet |
|
WL | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 5.6 nH | ±5% | 760 mA | - | Unshielded | 83mOhm Max | 20 @ 250MHz | 4.8GHz | AEC-Q200 | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0402 | 0.050" L x 0.030" W (1.27mm x 0.76mm) | 0.024" (0.61mm) |
|

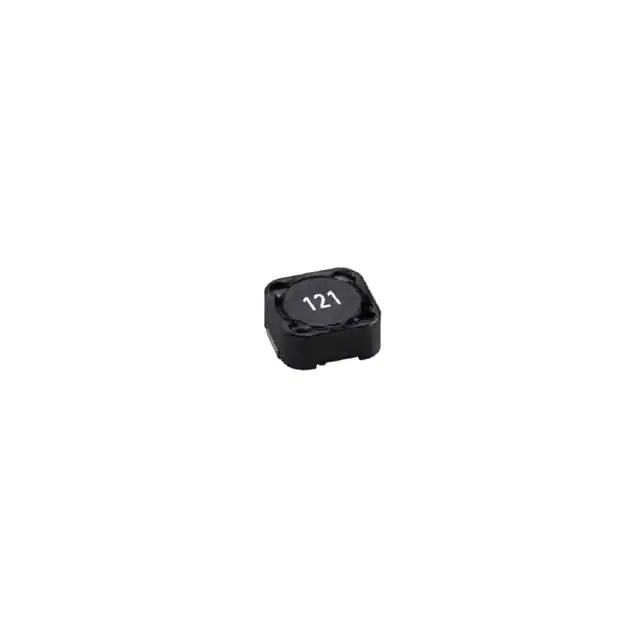

PCS127MT101FIXED IND 100UH 1.7A 220MOHM SMD Viking Tech |
158,427 |
|
Datasheet |
|
PCS | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 100 µH | ±20% | 1.7 A | - | Shielded | 220mOhm Max | - | - | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.315" (8.00mm) |
|
PSDB5D28NT4R7FIXED IND 4.7UH 2A 29 MOHM SMD Viking Tech |
183,008 |
|
Datasheet |
|
PSDB | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 4.7 µH | ±30% | 2 A | - | Shielded | 29mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.248" L x 0.244" W (6.30mm x 6.20mm) | 0.118" (3.00mm) |
