Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | RoHs | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
784774047FIXED IND 4.7UH 3A 71 MOHM SMD Würth Elektronik |
113,847 |
|
Datasheet |
 |
WE-PD2A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 4.7 µH | ±20% | 3 A | 5.5A | Unshielded | 71mOhm Max | - | 33MHz | AEC-Q200 | -40°C ~ 125°C | 10 kHz | - | Surface Mount | 5848 | 0.228" L x 0.205" W (5.80mm x 5.20mm) | 0.191" (4.85mm) |
|

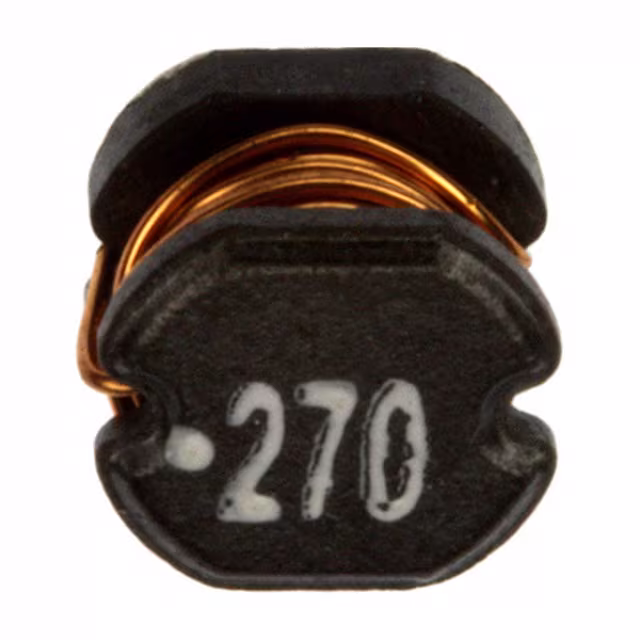

744774127FIXED IND 27UH 1.19A 200MOHM SMD Würth Elektronik |
158,521 |
|
Datasheet |
|
WE-PD2 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 27 µH | ±20% | 1.19 A | 1.4A | Unshielded | 200mOhm Max | - | 15MHz | - | -40°C ~ 125°C | 10 kHz | - | Surface Mount | - | 0.228" L x 0.205" W (5.80mm x 5.20mm) | 0.191" (4.85mm) |
|
744774182FIXED IND 82UH 600MA 600MOHM SMD Würth Elektronik |
135,662 |
|
Datasheet |
|
WE-PD2 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 82 µH | ±10% | 600 mA | 720mA | Unshielded | 600mOhm Max | - | 8MHz | - | -40°C ~ 125°C | 10 kHz | - | Surface Mount | - | 0.228" L x 0.205" W (5.80mm x 5.20mm) | 0.191" (4.85mm) |
|
|
744774156FIXED IND 56UH 770MA 420MOHM SMD Würth Elektronik |
139,726 |
|
Datasheet |
|
WE-PD2 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 56 µH | ±10% | 770 mA | 900mA | Unshielded | 420mOhm Max | - | 10MHz | - | -40°C ~ 125°C | 10 kHz | - | Surface Mount | - | 0.228" L x 0.205" W (5.80mm x 5.20mm) | 0.191" (4.85mm) |
|

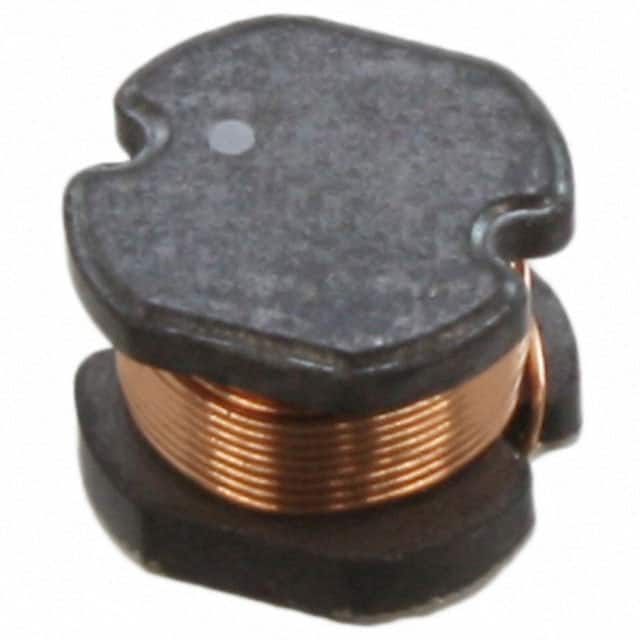

744774215FIXED IND 150UH 460MA 1.1OHM SMD Würth Elektronik |
144,184 |
|
Datasheet |
|
WE-PD2 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 150 µH | ±10% | 460 mA | 540mA | Unshielded | 1.1Ohm Max | - | 6.5MHz | - | -40°C ~ 125°C | 10 kHz | - | Surface Mount | - | 0.228" L x 0.205" W (5.80mm x 5.20mm) | 0.191" (4.85mm) |
|
744306025FIXED IND 250NH 25A 0.00026OHM Würth Elektronik |
153,835 |
|
Datasheet |
|
WE-HCM | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Manganese Zinc Ferrite (MnZn) | 250 nH | ±20% | 25 A | 32.3A | Shielded | 0.26mOhm | - | 38MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 1052 | 0.413" L x 0.406" W (10.50mm x 10.30mm) | 0.217" (5.50mm) |
|
744308020FIXED IND 200NH 25A 0.00037OHM Würth Elektronik |
127,558 |
|
Datasheet |
|
WE-HCM | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Manganese Zinc Ferrite (MnZn) | 200 nH | ±20% | 25 A | 50.4A | Shielded | 0.37mOhm | - | 45MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 1070 | 0.398" L x 0.276" W (10.10mm x 7.00mm) | 0.276" (7.00mm) |
|
744307012FIXED IND 120NH 26A 0.00029OHM Würth Elektronik |
164,854 |
|
Datasheet |
|
WE-HCM | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Manganese Zinc Ferrite (MnZn) | 120 nH | ±20% | 26 A | 48.5A | Shielded | 0.29mOhm | - | 400MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 7070 | 0.276" L x 0.276" W (7.00mm x 7.00mm) | 0.295" (7.50mm) |
|
744301033FIXED IND 330NH 38A 0.00032OHM Würth Elektronik |
128,047 |
|
Datasheet |
|
WE-HCM | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Manganese Zinc Ferrite (MnZn) | 330 nH | ±20% | 38 A | 48.9A | Shielded | 0.32mOhm | - | 115MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 1190 | 0.445" L x 0.433" W (11.30mm x 11.00mm) | 0.370" (9.40mm) |
|
7687480332WE-TI HV RADIAL LEADED WIRE WOUN Würth Elektronik |
187,462 |
|
Datasheet |
|
WE-TI HV | Radial, Vertical Cylinder | Tray | Active | Wirewound | - | 3.3 mH | ±5% | 350 mA | 500mA | Unshielded | 4Ohm Max | - | 750kHz | - | -40°C ~ 125°C | 10 kHz | - | Through Hole | Radial, Vertical Cylinder | 0.413" Dia (10.50mm) | 0.571" (14.50mm) |
