Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | RoHs | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
784771100FIXED IND 10UH 5A 26.5 MOHM SMD Würth Elektronik |
196,743 |
|
Datasheet |
 |
WE-PDA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Nickel Zinc Ferrite (NiZn) | 10 µH | ±20% | 5 A | 5.25A | Shielded | 26.5mOhm Max | - | 22.3MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 1260 | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.248" (6.30mm) |
|

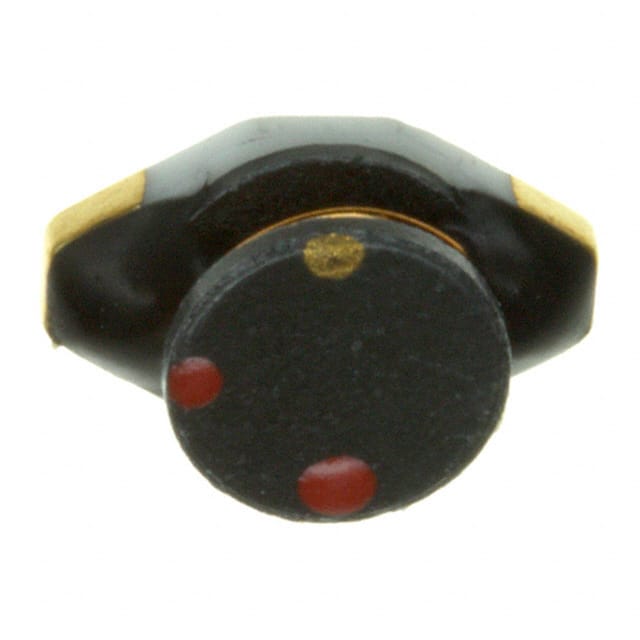

74455022FIXED IND 2.2UH 2.4A 70 MOHM SMD Würth Elektronik |
171,490 |
|
Datasheet |
|
WE-PD4 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2.2 µH | ±20% | 2.4 A | 2.3A | Unshielded | 70mOhm Max | - | 50MHz | - | -40°C ~ 100°C | 100 kHz | - | Surface Mount | - | 0.260" L x 0.175" W (6.60mm x 4.45mm) | 0.115" (2.92mm) |
|

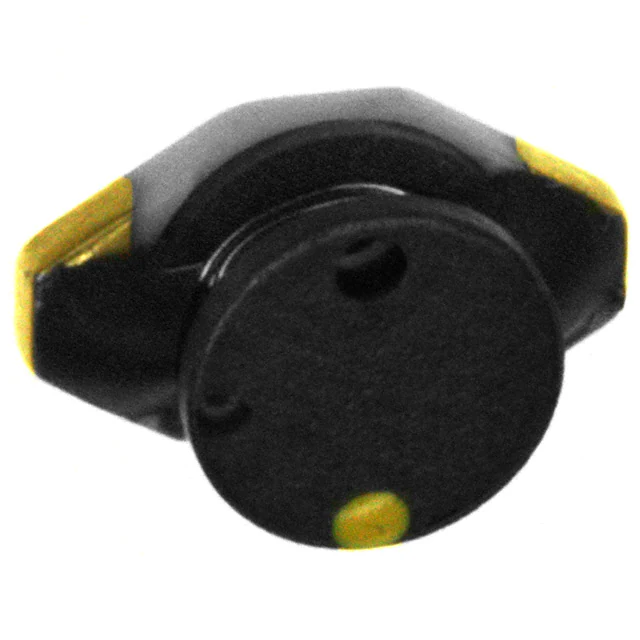

74455147FIXED IND 47UH 500MA 640MOHM SMD Würth Elektronik |
167,222 |
|
Datasheet |
|
WE-PD4 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 47 µH | ±20% | 500 mA | 500mA | Unshielded | 640mOhm Max | - | 12MHz | - | -40°C ~ 100°C | 100 kHz | - | Surface Mount | - | 0.260" L x 0.175" W (6.60mm x 4.45mm) | 0.115" (2.92mm) |
|

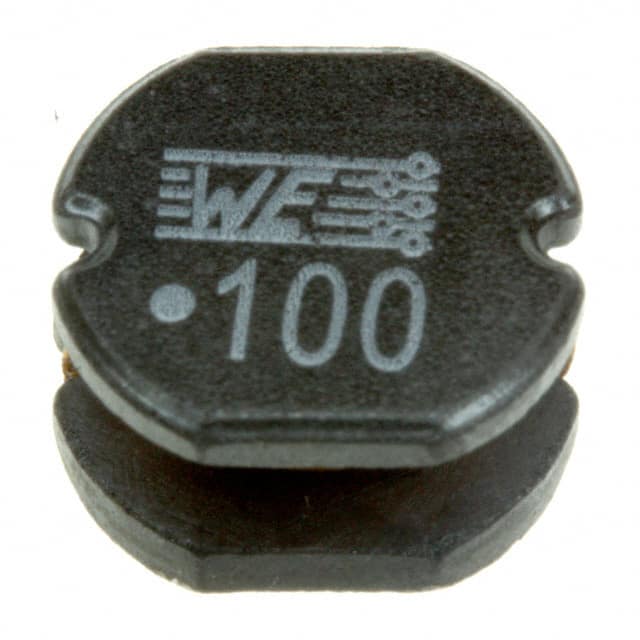

74477610FIXED IND 10UH 2.98A 60 MOHM SMD Würth Elektronik |
121,639 |
|
Datasheet |
|
WE-PD2 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 2.98 A | 3.24A | Unshielded | 60mOhm Max | - | 24MHz | - | -40°C ~ 125°C | 10 kHz | - | Surface Mount | - | 0.394" L x 0.354" W (10.00mm x 9.00mm) | 0.232" (5.90mm) |
|
|
784771047FIXED IND 4.7UH 6.2A 17.5MOHM SM Würth Elektronik |
106,529 |
|
Datasheet |
|
WE-PDA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Nickel Zinc Ferrite (NiZn) | 4.7 µH | ±20% | 6.2 A | 8A | Shielded | 17.5mOhm Max | - | 49.8MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 1260 | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.248" (6.30mm) |
|
744776233FIXED IND 330UH 520MA 1.15OHM SM Würth Elektronik |
167,731 |
|
Datasheet |
|
WE-PD2 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 330 µH | ±10% | 520 mA | 590mA | Unshielded | 1.15Ohm Max | - | 4.1MHz | - | -40°C ~ 125°C | 10 kHz | - | Surface Mount | - | 0.394" L x 0.354" W (10.00mm x 9.00mm) | 0.232" (5.90mm) |
|

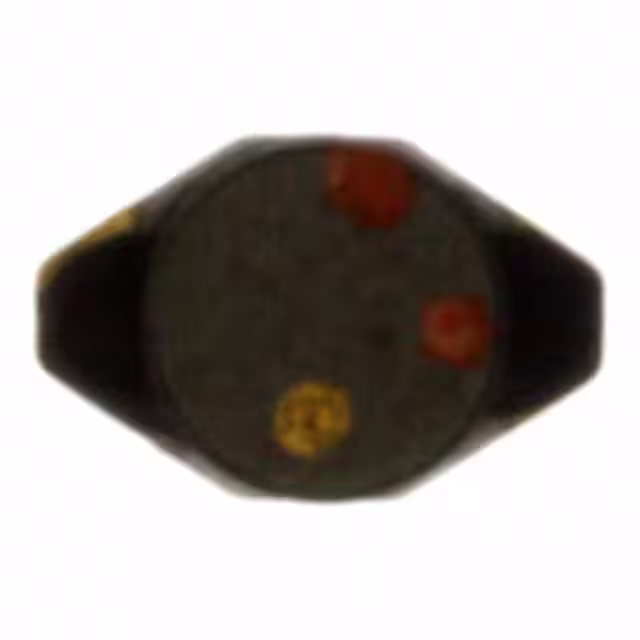

74455033FIXED IND 3.3UH 2A 80 MOHM SMD Würth Elektronik |
119,065 |
|
Datasheet |
|
WE-PD4 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 3.3 µH | ±20% | 2 A | 2A | Unshielded | 80mOhm Max | - | 39MHz | - | -40°C ~ 100°C | 100 kHz | - | Surface Mount | - | 0.260" L x 0.175" W (6.60mm x 4.45mm) | 0.115" (2.92mm) |
|
74455015FIXED IND 1.5UH 2.8A 50 MOHM SMD Würth Elektronik |
192,136 |
|
Datasheet |
|
WE-PD4 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1.5 µH | ±20% | 2.8 A | 2.6A | Unshielded | 50mOhm Max | - | 62MHz | - | -40°C ~ 100°C | 100 kHz | - | Surface Mount | - | 0.260" L x 0.175" W (6.60mm x 4.45mm) | 0.115" (2.92mm) |
|

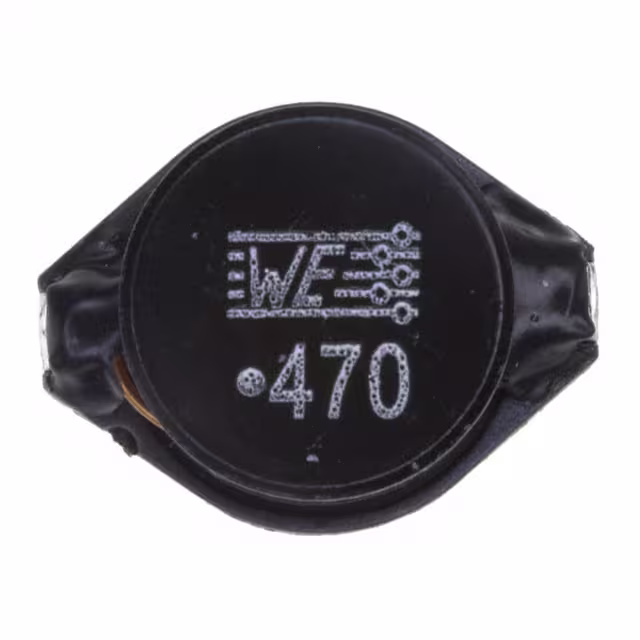

74458147FIXED IND 47UH 2.6A 86 MOHM SMD Würth Elektronik |
103,482 |
|
Datasheet |
|
WE-PD4 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 47 µH | ±20% | 2.6 A | 4.5A | Unshielded | 86mOhm Max | - | 8.4MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.730" L x 0.600" W (18.54mm x 15.24mm) | 0.280" (7.11mm) |
|
78438367033WE-MAIA SMT POWER INDUCTOR Würth Elektronik |
194,580 |
|
Datasheet |
|
WE-MAIA | Nonstandard | Tape & Reel (TR) | Active | - | Iron Alloy | 3.3 µH | ±20% | 6.2 A | 7.3A | Shielded | 23mOhm Max | - | 22MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.213" L x 0.213" W (5.40mm x 5.40mm) | 0.122" (3.10mm) |
