Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | RoHs | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

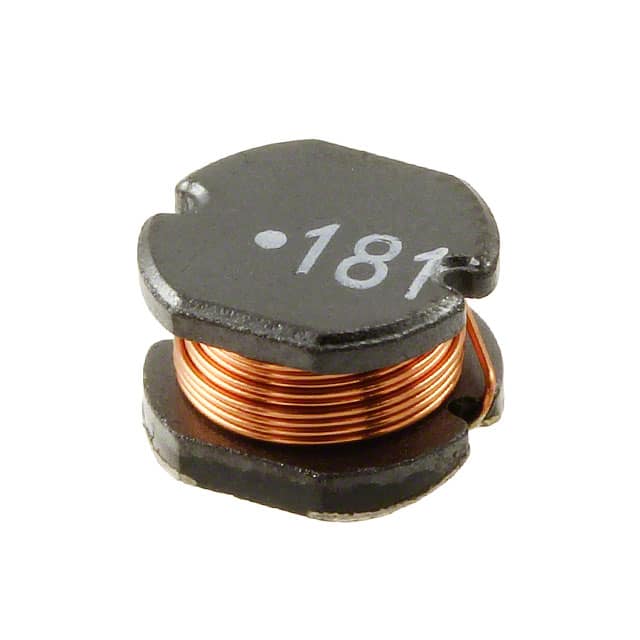

744775218FIXED IND 180UH 550MA 710MOHM SM Würth Elektronik |
197,403 |
|
Datasheet |
 |
WE-PD2 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 180 µH | ±10% | 550 mA | 570mA | Unshielded | 710mOhm Max | - | 5.8MHz | - | -40°C ~ 125°C | 10 kHz | - | Surface Mount | - | 0.307" L x 0.276" W (7.80mm x 7.00mm) | 0.217" (5.50mm) |
|
744771003FIXED IND 3.5UH 9.25A 8 MOHM SMD Würth Elektronik |
165,601 |
|
Datasheet |
|
WE-PD | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 3.5 µH | ±20% | 9.25 A | 9A | Shielded | 8mOhm Max | - | 40MHz | AEC-Q200 | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.236" (6.00mm) |
|
784775082FIXED IND 8.2UH 3.2A 29 MOHM SMD Würth Elektronik |
135,795 |
|
Datasheet |
|
WE-PD2A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 8.2 µH | ±20% | 3.2 A | 3.2A | Unshielded | 29mOhm Max | - | 33MHz | AEC-Q200 | -40°C ~ 125°C | 10 kHz | - | Surface Mount | 7850 | 0.307" L x 0.276" W (7.80mm x 7.00mm) | 0.217" (5.50mm) |
|
|
784775168FIXED IND 68UH 990MA 280MOHM SMD Würth Elektronik |
182,176 |
|
Datasheet |
|
WE-PD2A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 68 µH | ±20% | 990 mA | 1.05A | Unshielded | 280mOhm Max | - | 8MHz | AEC-Q200 | -40°C ~ 125°C | 10 kHz | - | Surface Mount | 7850 | 0.307" L x 0.276" W (7.80mm x 7.00mm) | 0.217" (5.50mm) |
|

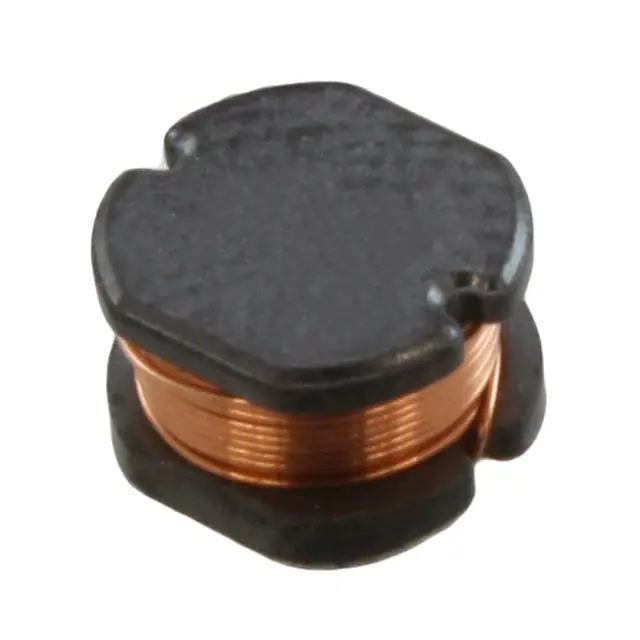

744775233FIXED IND 330UH 430MA 1.26OHM SM Würth Elektronik |
103,493 |
|
Datasheet |
|
WE-PD2 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 330 µH | ±10% | 430 mA | 480mA | Unshielded | 1.26Ohm Max | - | 4.2MHz | - | -40°C ~ 125°C | 10 kHz | - | Surface Mount | - | 0.307" L x 0.276" W (7.80mm x 7.00mm) | 0.217" (5.50mm) |
|
|
784775233FIXED IND 330UH 430MA 1.26OHM SM Würth Elektronik |
170,941 |
|
Datasheet |
|
WE-PD2A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 330 µH | ±20% | 430 mA | 480mA | Unshielded | 1.26Ohm Max | - | 4MHz | AEC-Q200 | -40°C ~ 125°C | 10 kHz | - | Surface Mount | 7850 | 0.307" L x 0.276" W (7.80mm x 7.00mm) | 0.217" (5.50mm) |
|
744775330FIXED IND 3MH 240MA 10 OHM SMD Würth Elektronik |
144,221 |
|
Datasheet |
|
WE-ASI | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 3 mH | ±10% | 240 mA | 120mA | Unshielded | 10Ohm Max | - | 900kHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.315" L x 0.276" W (8.00mm x 7.00mm) | 0.217" (5.50mm) |
|
7447715003FIXED IND 3.3UH 5.9A 13 MOHM SMD Würth Elektronik |
108,282 |
|
Datasheet |
|
WE-PD | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 3.3 µH | ±30% | 5.9 A | 7.1A | Shielded | 13mOhm Max | - | 40MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.177" (4.50mm) |
|
74454115FIXED IND 15UH 1.7A 0.085OHM SMD Würth Elektronik |
156,374 |
|
Datasheet |
|
WE-PD3 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | - | 15 µH | ±20% | 1.7 A | 3A | Shielded | 85mOhm Max | - | 20MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.500" L x 0.394" W (12.70mm x 10.00mm) | 0.205" (5.20mm) |
|

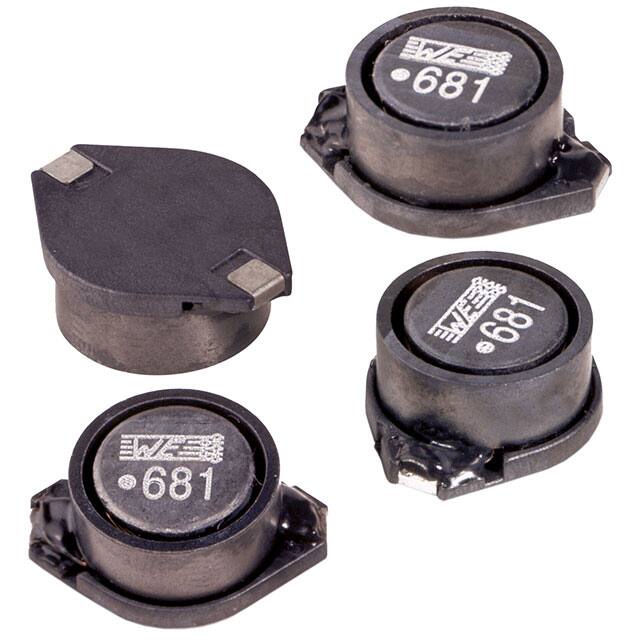

74454133FIXED IND 33UH 1.2A 0.16OHM SMD Würth Elektronik |
154,181 |
|
Datasheet |
|
WE-PD3 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | - | 33 µH | ±15% | 1.2 A | 1.8A | Shielded | 160mOhm Max | - | 12MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.500" L x 0.394" W (12.70mm x 10.00mm) | 0.205" (5.20mm) |
