Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | RoHs | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

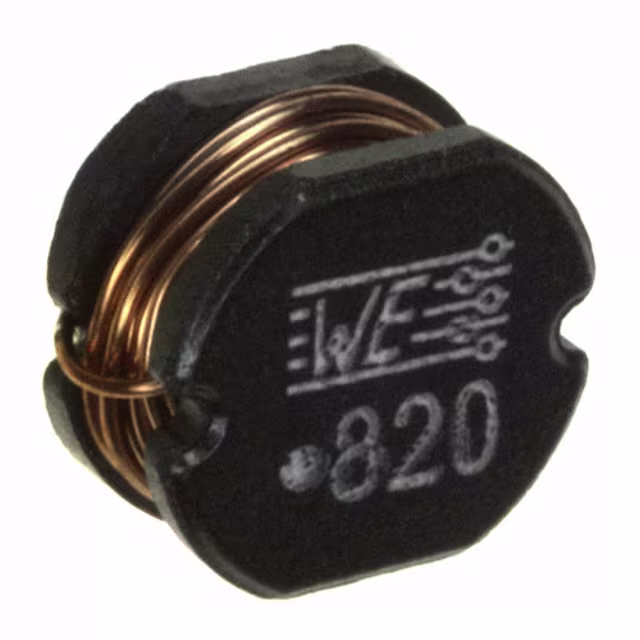

744776182FIXED IND 82UH 1.11A 250MOHM SMD Würth Elektronik |
165,548 |
|
Datasheet |
 |
WE-PD2 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 82 µH | ±10% | 1.11 A | 1.17A | Unshielded | 250mOhm Max | - | 8MHz | - | -40°C ~ 125°C | 10 kHz | - | Surface Mount | - | 0.394" L x 0.354" W (10.00mm x 9.00mm) | 0.232" (5.90mm) |
|
744776256FIXED IND 560UH 390MA 1.9OHM SMD Würth Elektronik |
120,873 |
|
Datasheet |
|
WE-PD2 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 560 µH | ±20% | 390 mA | 470mA | Unshielded | 1.9Ohm Max | - | 3MHz | - | -40°C ~ 125°C | 10 kHz | - | Surface Mount | - | 0.394" L x 0.354" W (10.00mm x 9.00mm) | 0.232" (5.90mm) |
|

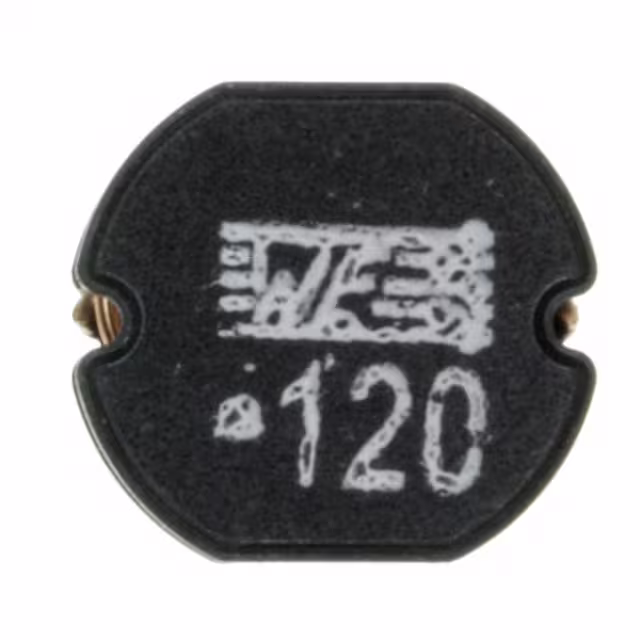

744776112FIXED IND 12UH 2.72A 70 MOHM SMD Würth Elektronik |
107,725 |
|
Datasheet |
|
WE-PD2 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 12 µH | ±20% | 2.72 A | 3.15A | Unshielded | 70mOhm Max | - | 23MHz | - | -40°C ~ 125°C | 10 kHz | - | Surface Mount | - | 0.394" L x 0.354" W (10.00mm x 9.00mm) | 0.232" (5.90mm) |
|
784771022FIXED IND 2.2UH 7.2A 12.5MOHM SM Würth Elektronik |
176,008 |
|
Datasheet |
|
WE-PDA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Nickel Zinc Ferrite (NiZn) | 2.2 µH | ±20% | 7.2 A | 10.5A | Shielded | 12.5mOhm Max | - | 82.7MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 1260 | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.248" (6.30mm) |
|
|
744776239FIXED IND 390UH 490MA 1.3OHM SMD Würth Elektronik |
156,863 |
|
Datasheet |
|
WE-PD2 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 390 µH | ±10% | 490 mA | 540mA | Unshielded | 1.3Ohm Max | - | 3.9MHz | - | -40°C ~ 125°C | 10 kHz | - | Surface Mount | - | 0.394" L x 0.354" W (10.00mm x 9.00mm) | 0.232" (5.90mm) |
|
784776118FIXED IND 18UH 2.36A 90 MOHM SMD Würth Elektronik |
156,289 |
|
Datasheet |
|
WE-PD2A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 18 µH | ±20% | 2.36 A | 2.43A | Unshielded | 90mOhm Max | - | 18MHz | AEC-Q200 | -40°C ~ 125°C | 10 kHz | - | Surface Mount | 1054 | 0.394" L x 0.354" W (10.00mm x 9.00mm) | 0.232" (5.90mm) |
|
|
744776268FIXED IND 680UH 360MA 2.25OHM SM Würth Elektronik |
110,854 |
|
Datasheet |
|
WE-PD2 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 680 µH | ±10% | 360 mA | 430mA | Unshielded | 2.25Ohm Max | - | 2.7MHz | - | -40°C ~ 125°C | 10 kHz | - | Surface Mount | - | 0.394" L x 0.354" W (10.00mm x 9.00mm) | 0.232" (5.90mm) |
|

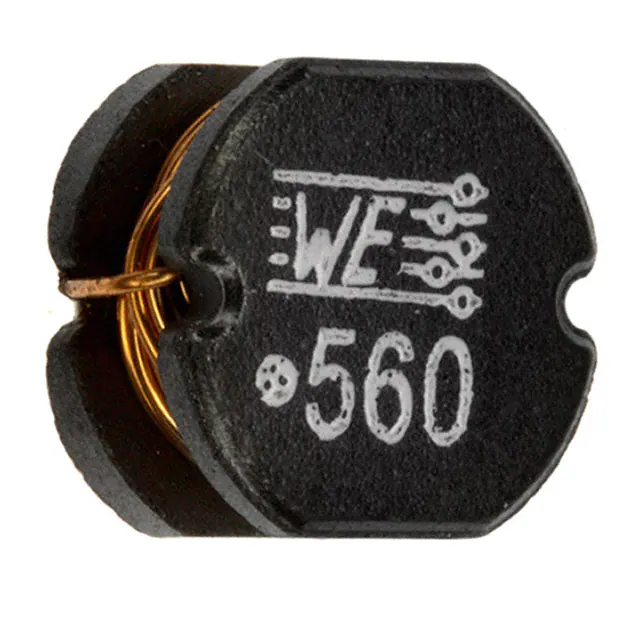

744776156FIXED IND 56UH 1.36A 190MOHM SMD Würth Elektronik |
185,409 |
|
Datasheet |
|
WE-PD2 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 56 µH | ±10% | 1.36 A | 1.53A | Unshielded | 190mOhm Max | - | 10MHz | - | -40°C ~ 125°C | 10 kHz | - | Surface Mount | - | 0.394" L x 0.354" W (10.00mm x 9.00mm) | 0.232" (5.90mm) |
|

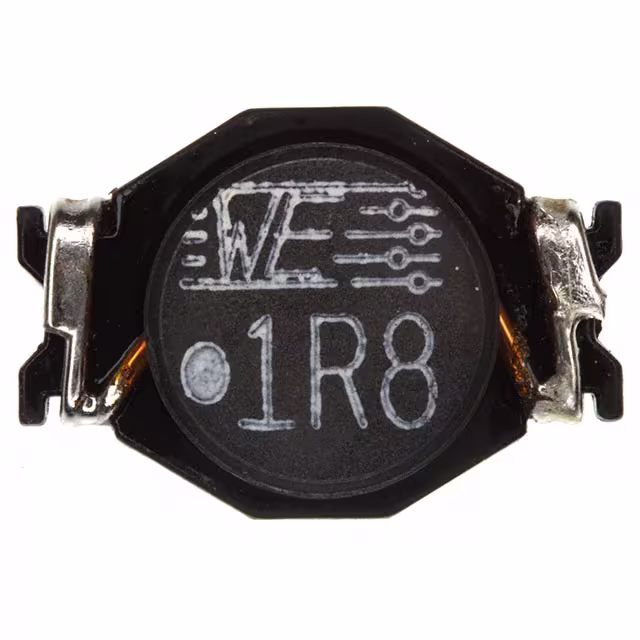

74457018FIXED IND 1.8UH 13A 5 MOHM SMD Würth Elektronik |
194,480 |
|
Datasheet |
|
WE-PD4 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1.8 µH | ±20% | 13 A | 25A | Unshielded | 5mOhm Max | - | 50MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.866" L x 0.591" W (22.00mm x 15.00mm) | 0.307" (7.80mm) |
|
|
784771221FIXED IND 220UH 990MA 348MOHM SM Würth Elektronik |
116,172 |
|
Datasheet |
|
WE-PDA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Nickel Zinc Ferrite (NiZn) | 220 µH | ±20% | 990 mA | 1.1A | Shielded | 348mOhm Max | - | 3.9MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 1260 | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.248" (6.30mm) |
