Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | RoHs | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

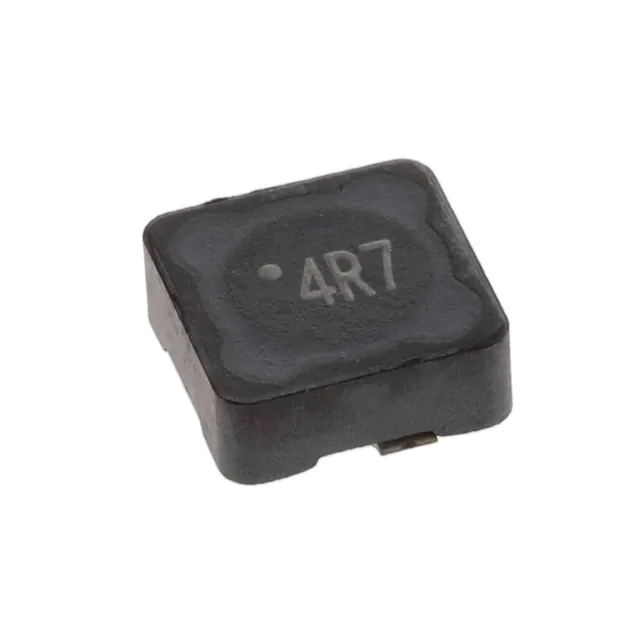

744778004FIXED IND 4.7UH 2.32A 60MOHM SMD Würth Elektronik |
168,937 |
|
Datasheet |
 |
WE-PD | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 4.7 µH | ±20% | 2.32 A | 4.2A | Shielded | 60mOhm Max | - | 45MHz | AEC-Q200 | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.287" L x 0.287" W (7.30mm x 7.30mm) | 0.134" (3.40mm) |
|
784778047FIXED IND 4.7UH 2.4A 79 MOHM SMD Würth Elektronik |
181,798 |
|
Datasheet |
|
WE-PDA | Nonstandard, 4 Lead | Tape & Reel (TR) | Active | Drum Core, Wirewound | Nickel Zinc Ferrite (NiZn) | 4.7 µH | ±20% | 2.4 A | 3.1A | Shielded | 79mOhm Max | - | 52MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 7332 | 0.287" L x 0.287" W (7.30mm x 7.30mm) | 0.138" (3.50mm) |
|
|
784778220FIXED IND 22UH 1.55A 187MOHM SMD Würth Elektronik |
175,824 |
|
Datasheet |
|
WE-PDA | Nonstandard, 4 Lead | Tape & Reel (TR) | Active | Drum Core, Wirewound | Nickel Zinc Ferrite (NiZn) | 22 µH | ±20% | 1.55 A | 1.6A | Shielded | 187mOhm Max | - | 17.2MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 7332 | 0.287" L x 0.287" W (7.30mm x 7.30mm) | 0.138" (3.50mm) |
|
7447789156FIXED IND 56UH 840MA 470MOHM SMD Würth Elektronik |
133,724 |
|
Datasheet |
|
WE-PD Robust | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 56 µH | ±20% | 840 mA | 900mA | Shielded | 470mOhm Max | - | 12.5MHz | AEC-Q200 | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.287" L x 0.287" W (7.30mm x 7.30mm) | 0.138" (3.50mm) |
|
|
7447789182FIXED IND 82UH 690MA 690MOHM SMD Würth Elektronik |
104,589 |
|
Datasheet |
|
WE-PD Robust | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 82 µH | ±20% | 690 mA | 780mA | Shielded | 690mOhm Max | - | 9.8MHz | AEC-Q200 | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.287" L x 0.287" W (7.30mm x 7.30mm) | 0.138" (3.50mm) |
|
7447783022FIXED IND 2.2UH 4.5A 19 MOHM SMD Würth Elektronik |
199,488 |
|
Datasheet |
|
WE-PD Performance | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2.2 µH | ±30% | 4.5 A | 6.5A | Shielded | 19mOhm Max | - | 62MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.291" L x 0.287" W (7.40mm x 7.30mm) | 0.138" (3.50mm) |
|
|
784778102FIXED IND 1MH 230MA 7.2 OHM SMD Würth Elektronik |
183,671 |
|
Datasheet |
|
WE-PDA | Nonstandard, 4 Lead | Tape & Reel (TR) | Active | Drum Core, Wirewound | Nickel Zinc Ferrite (NiZn) | 1 mH | ±20% | 230 mA | 250mA | Shielded | 7.2Ohm Max | - | 2.5MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 7332 | 0.287" L x 0.287" W (7.30mm x 7.30mm) | 0.138" (3.50mm) |
|
|
744778139FIXED IND 39UH 1.03A 320MOHM SMD Würth Elektronik |
182,533 |
|
Datasheet |
|
WE-PD | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 39 µH | ±20% | 1.03 A | 1.1A | Shielded | 320mOhm Max | - | 14MHz | AEC-Q200 | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.287" L x 0.287" W (7.30mm x 7.30mm) | 0.134" (3.40mm) |
|
74437321056FIXED IND 5.6UH 1.7A 0.208OHM SM Würth Elektronik |
118,497 |
|
Datasheet |
|
WE-LHMI | 2-SMD | Tape & Reel (TR) | Active | Molded | Iron Powder | 5.6 µH | ±20% | 1.7 A | 3.65A | Shielded | 208mOhm Max | - | 28MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 4012 | 0.160" L x 0.160" W (4.06mm x 4.06mm) | 0.047" (1.20mm) |
|
|
74437321082FIXED IND 8.2UH 1.3A 0.376OHM SM Würth Elektronik |
150,449 |
|
Datasheet |
|
WE-LHMI | 2-SMD | Tape & Reel (TR) | Active | Molded | Iron Powder | 8.2 µH | ±20% | 1.3 A | 2.85A | Shielded | 376mOhm Max | - | 24MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 4012 | 0.160" L x 0.160" W (4.06mm x 4.06mm) | 0.047" (1.20mm) |
