Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | RoHs | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
74439325068POWER INDUCTOR 4040; 6.8 H; 4.1 Würth Elektronik |
147,233 |
|
Datasheet |
 |
WE-XHMI | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal Composite | 6.8 µH | ±20% | 4.1 A | 4.9A | Shielded | 55mOhm Max | - | 23MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.169" L x 0.169" W (4.30mm x 4.30mm) | 0.161" (4.10mm) |
|
|
744393230011SMT Power Inductor 4020 Würth Elektronik |
183,624 |
|
Datasheet |
|
WE-XHMI | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal Composite | 110 nH | ±20% | 23.7 A | 20.2A | Shielded | 2.44mOhm Max | - | 295MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.169" L x 0.169" W (4.30mm x 4.30mm) | 0.126" (3.20mm) |
|
|
744393240033SMT Power Inductor 4030 Würth Elektronik |
199,678 |
|
Datasheet |
|
WE-XHMI | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal Composite | 330 nH | ±20% | 19.4 A | 9.3A | Shielded | 4mOhm Max | - | 110MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.169" L x 0.169" W (4.30mm x 4.30mm) | 0.126" (3.20mm) |
|
|
744393240056SMT Power Inductor 4030 Würth Elektronik |
147,516 |
|
Datasheet |
|
WE-XHMI | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal Composite | 560 nH | ±20% | 16.4 A | 8.4A | Shielded | 5.63mOhm Max | - | 90MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.169" L x 0.169" W (4.30mm x 4.30mm) | 0.126" (3.20mm) |
|
|
74454233WE-PD3 SMT SHIELDED POWER INDUCT Würth Elektronik |
144,171 |
|
Datasheet |
|
WE-PD3 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 330 µH | ±10% | 350 mA | 600mA | Shielded | 1.2Ohm Max | - | 3.4MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.500" L x 0.394" W (12.70mm x 10.00mm) | 0.205" (5.20mm) |
|

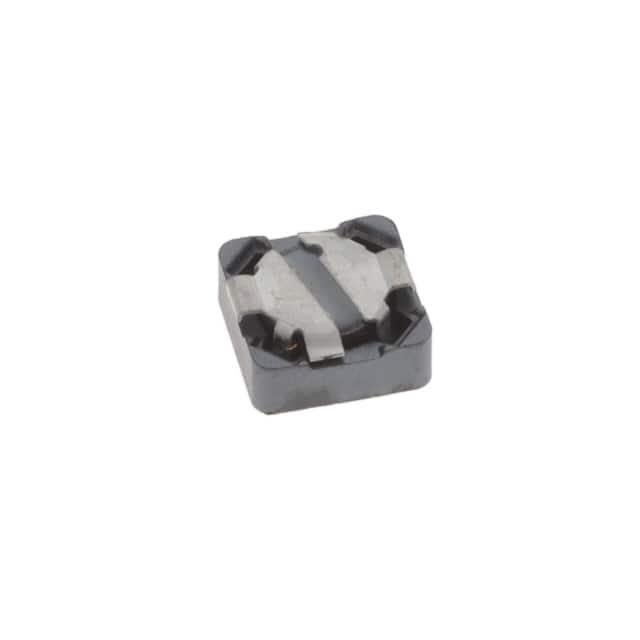

744778239FIXED IND 390UH 300MA 2.94OHM SM Würth Elektronik |
184,660 |
|
Datasheet |
|
WE-PD | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 390 µH | ±20% | 300 mA | 340mA | Shielded | 2.94Ohm Max | - | 4.4MHz | AEC-Q200 | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.287" L x 0.287" W (7.30mm x 7.30mm) | 0.134" (3.40mm) |
|
74477824FIXED IND 470UH 300MA 4.18OHM SM Würth Elektronik |
169,593 |
|
Datasheet |
|
WE-PD | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 470 µH | ±20% | 300 mA | 310mA | Shielded | 4.18Ohm Max | - | 4MHz | AEC-Q200 | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.287" L x 0.287" W (7.30mm x 7.30mm) | 0.134" (3.40mm) |
|
744778118FIXED IND 18UH 1.41A 140MOHM SMD Würth Elektronik |
193,823 |
|
Datasheet |
|
WE-PD | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 18 µH | ±20% | 1.41 A | 1.7A | Shielded | 140mOhm Max | - | 24MHz | AEC-Q200 | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.287" L x 0.287" W (7.30mm x 7.30mm) | 0.134" (3.40mm) |
|
|
744778112FIXED IND 12UH 1.73A 98 MOHM SMD Würth Elektronik |
160,334 |
|
Datasheet |
|
WE-PD | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 12 µH | ±20% | 1.73 A | 2.15A | Shielded | 98mOhm Max | - | 27MHz | AEC-Q200 | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.287" L x 0.287" W (7.30mm x 7.30mm) | 0.134" (3.40mm) |
|
|
7447783101FIXED IND 100UH 820MA 450MOHM SM Würth Elektronik |
120,200 |
|
Datasheet |
|
WE-PD Performance | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 100 µH | ±20% | 820 mA | 1A | Shielded | 450mOhm Max | - | 7.8MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.291" L x 0.287" W (7.40mm x 7.30mm) | 0.138" (3.50mm) |
