Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | RoHs | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
74458268WE-PD4 SMT POWER INDUCTOR 680 UH Würth Elektronik |
173,794 |
|
Datasheet |
 |
WE-PD4 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Metal Composite | 680 µH | ±20% | 720 mA | 1.3A | Shielded | 1.1Ohm Max | - | 1.8MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.728" L x 0.598" W (18.50mm x 15.20mm) | 0.280" (7.10mm) |
|
|
74457006WE-PD4 SMT POWER INDUCTOR 0.47 U Würth Elektronik |
169,461 |
|
Datasheet |
|
WE-PD4 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 470 nH | ±20% | 18 A | 38A | Unshielded | 2mOhm Max | - | 120MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.866" L x 0.591" W (22.00mm x 15.00mm) | 0.307" (7.80mm) |
|
|
74457215WE-PD4 SMT POWER INDUCTOR 150 UH Würth Elektronik |
125,923 |
|
Datasheet |
|
WE-PD4 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Metal Composite | 150 µH | ±10% | 1.5 A | 2.6A | Unshielded | 268mOhm Max | - | 4.1MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.866" L x 0.591" W (22.00mm x 15.00mm) | 0.307" (7.80mm) |
|
|
74438450300022MOLDED POWER INDUCTOR, SMT, 0.22 Würth Elektronik |
175,959 |
|
Datasheet |
|
WE-MXGI | Nonstandard | Tape & Reel (TR) | Active | Molded | Iron | 220 nH | ±30% | 28.1 A | 11.8A | Shielded | 1.7mOhm Max | - | 155MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.213" L x 0.213" W (5.40mm x 5.40mm) | 0.122" (3.10mm) |
|
|
7443845030033MOLDED POWER INDUCTOR, SMT, 3.3 Würth Elektronik |
147,127 |
|
Datasheet |
|
WE-MXGI | Nonstandard | Tape & Reel (TR) | Active | Molded | Iron | 3.3 µH | ±20% | 10 A | 4A | Shielded | 14.8mOhm Max | - | 25MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.213" L x 0.213" W (5.40mm x 5.40mm) | 0.122" (3.10mm) |
|
|
7443845030022MOLDED POWER INDUCTOR, SMT, 2.2 Würth Elektronik |
107,759 |
|
Datasheet |
|
WE-MXGI | Nonstandard | Tape & Reel (TR) | Active | Molded | Iron | 2.2 µH | ±20% | 12.4 A | 5.2A | Shielded | 9.3mOhm Max | - | 35MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.213" L x 0.213" W (5.40mm x 5.40mm) | 0.122" (3.10mm) |
|
|
7443845030100MOLDED POWER INDUCTOR, SMT, 10 H Würth Elektronik |
197,417 |
|
Datasheet |
|
WE-MXGI | Nonstandard | Tape & Reel (TR) | Active | Molded | Iron | 10 µH | ±20% | 5.5 A | 2.5A | Shielded | 47.7mOhm Max | - | 12MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.213" L x 0.213" W (5.40mm x 5.40mm) | 0.122" (3.10mm) |
1mm.jpg)
|

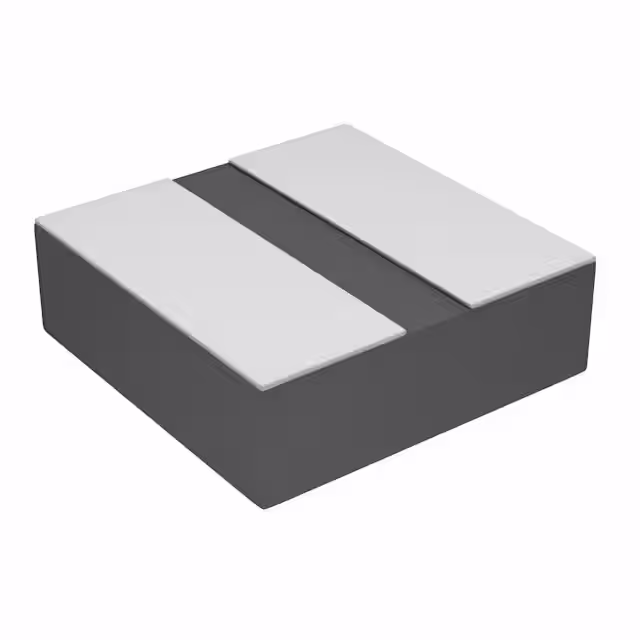

78438333047FIXED IND 4.7UH 900MA 409MOHM SM Würth Elektronik |
151,479 |
|
Datasheet |
|
WE-MAIA | 1212 (3030 Metric) | Tape & Reel (TR) | Active | Molded | Iron Alloy | 4.7 µH | ±30% | 900 mA | 2.4A | Shielded | 409mOhm Max | - | 35MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 3010 | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.039" (1.00mm) |
|
|
7443082010BWE-HCM SMT HIGH CURRENT FLAT WIR Würth Elektronik |
115,514 |
|
Datasheet |
|
WE-HCM | Nonstandard | Tape & Reel (TR) | Active | Molded | Manganese Zinc Ferrite (MnZn) | 100 nH | ±10% | 70 A | 117A | Shielded | 0.114mOhm | - | 90MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.425" L x 0.323" W (10.80mm x 8.20mm) | 0.335" (8.50mm) |
|
|
7443082012BWE-HCM SMT HIGH CURRENT FLAT WIR Würth Elektronik |
123,136 |
|
Datasheet |
|
WE-HCM | Nonstandard | Tape & Reel (TR) | Active | Molded | Manganese Zinc Ferrite (MnZn) | 120 nH | ±10% | 70 A | 100.9A | Shielded | 0.114mOhm | - | 64MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.425" L x 0.323" W (10.80mm x 8.20mm) | 0.335" (8.50mm) |
