Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | RoHs | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
7447649115FIXED IND 15UH 450MA 1.69OHM SMD Würth Elektronik |
116,385 |
|
Datasheet |
 |
WE-GFH | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 15 µH | ±10% | 450 mA | - | Unshielded | 1.69Ohm Max | 30 @ 2.52MHz | 30MHz | - | -40°C ~ 125°C | 2.52 MHz | - | Surface Mount | 3225 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.094" (2.40mm) |
|
7447669156FIXED IND 56UH 400MA 2 OHM SMD Würth Elektronik |
174,231 |
|
Datasheet |
|
WE-GFH | 1812 (4532 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 56 µH | ±10% | 400 mA | - | Unshielded | 2.2Ohm Max | 30 @ 2.52MHz | 11MHz | - | -40°C ~ 125°C | 2.52 MHz | - | Surface Mount | 4532 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
|
|
7447669127FIXED IND 27UH 575MA 890MOHM SMD Würth Elektronik |
187,308 |
|
Datasheet |
|
WE-GFH | 1812 (4532 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 27 µH | ±10% | 575 mA | - | Unshielded | 1.2Ohm Max | 25 @ 2.52MHz | 17MHz | - | -40°C ~ 125°C | 2.52 MHz | - | Surface Mount | 4532 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
|
|
744766903FIXED IND 3.3UH 1.3A 195MOHM SMD Würth Elektronik |
190,763 |
|
Datasheet |
|
WE-GFH | 1812 (4532 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 3.3 µH | ±10% | 1.3 A | - | Unshielded | 220mOhm Max | 15 @ 7.96MHz | 55MHz | - | -40°C ~ 125°C | 7.96 MHz | - | Surface Mount | 4532 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
|
|
7447669112FIXED IND 12UH 810MA 465MOHM SMD Würth Elektronik |
142,200 |
|
Datasheet |
|
WE-GFH | 1812 (4532 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 12 µH | ±10% | 810 mA | - | Unshielded | 600mOhm Max | 25 @ 2.52MHz | 28MHz | - | -40°C ~ 125°C | 2.52 MHz | - | Surface Mount | 4532 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
|
|
744766906FIXED IND 6.8UH 1.025A 290 MOHM Würth Elektronik |
138,716 |
|
Datasheet |
|
WE-GFH | 1812 (4532 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 6.8 µH | ±10% | 1.025 A | - | Unshielded | 300mOhm Max | 15 @ 7.96MHz | 35MHz | - | -40°C ~ 125°C | 7.96 MHz | - | Surface Mount | 4532 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
|
|
744764920FIXED IND 100UH 160MA 10.14 OHM Würth Elektronik |
192,774 |
|
Datasheet |
|
WE-GFH | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 100 µH | ±10% | 160 mA | - | Unshielded | 10.14Ohm Max | 45 @ 796kHz | 10MHz | - | -40°C ~ 125°C | 796 kHz | - | Surface Mount | 3225 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.094" (2.40mm) |
|
744761210AFIXED IND 100NH 400MA 630MOHM SM Würth Elektronik |
102,931 |
|
Datasheet |
|
WE-KI | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 100 nH | ±5% | 400 mA | - | Unshielded | 630mOhm Max | 35 @ 150MHz | 1.4GHz | AEC-Q200 | -40°C ~ 125°C | 150 MHz | - | Surface Mount | 0603 | 0.063" L x 0.041" W (1.60mm x 1.05mm) | 0.049" (1.25mm) |
|
|
7447669118FIXED IND 18UH 700MA 680MOHM SMD Würth Elektronik |
128,181 |
|
Datasheet |
|
WE-GFH | 1812 (4532 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 18 µH | ±10% | 700 mA | - | Unshielded | 800mOhm Max | 25 @ 2.52MHz | 21MHz | - | -40°C ~ 125°C | 2.52 MHz | - | Surface Mount | 4532 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
|

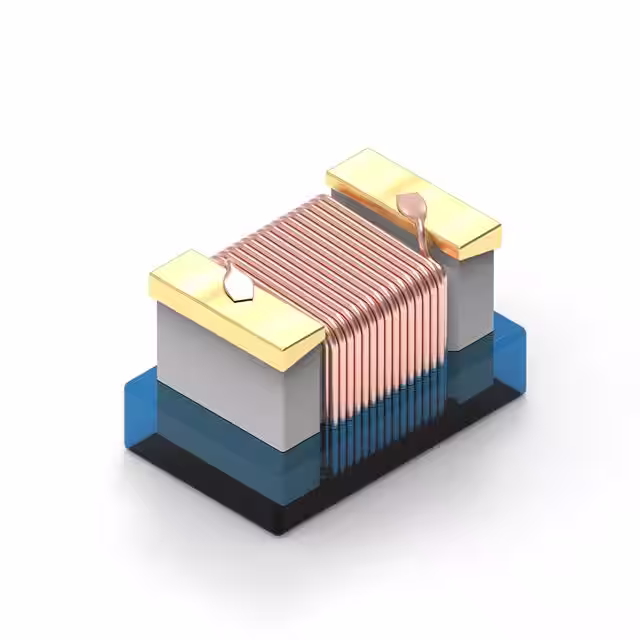

7447602620AWE-KI SMT WIRE WOUND CERAMIC IND Würth Elektronik |
168,683 |
|
Datasheet |
|
WE-KI | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 620 nH | ±5% | 230 mA | - | Unshielded | 1.2Ohm Max | 18 @ 100MHz | 250MHz | AEC-Q200 | -40°C ~ 125°C | 25 MHz | - | Surface Mount | 0805 | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.055" (1.40mm) |
