Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | RoHs | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

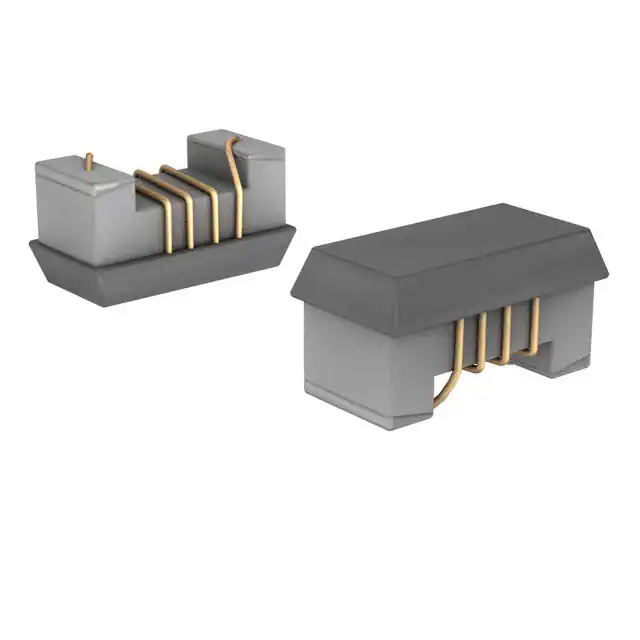

744916125FIXED IND 25NH 700MA 300MOHM SMD Würth Elektronik |
151,208 |
|
Datasheet |
 |
WE-KI HC | 0402 (1006 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 25 nH | ±2% | 700 mA | - | Unshielded | 300mOhm Max | 26 @ 250MHz | 3.15GHz | AEC-Q200 | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0402 (1006 Metric) | 0.043" L x 0.024" W (1.10mm x 0.60mm) | 0.024" (0.60mm) |
|
|
744916126FIXED IND 26NH 700MA 275MOHM SMD Würth Elektronik |
163,555 |
|
Datasheet |
|
WE-KI HC | 0402 (1006 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 26 nH | ±2% | 700 mA | - | Unshielded | 275mOhm Max | 27 @ 250MHz | 3.15GHz | AEC-Q200 | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0402 (1006 Metric) | 0.043" L x 0.024" W (1.10mm x 0.60mm) | 0.024" (0.60mm) |
|
|
744916127FIXED IND 27NH 450MA 330MOHM SMD Würth Elektronik |
164,151 |
|
Datasheet |
|
WE-KI HC | 0402 (1006 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 27 nH | ±2% | 450 mA | - | Unshielded | 330mOhm Max | 27 @ 250MHz | 3.2GHz | AEC-Q200 | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0402 (1006 Metric) | 0.043" L x 0.024" W (1.10mm x 0.60mm) | 0.024" (0.60mm) |
|
|
744916130FIXED IND 30NH 450MA 400MOHM SMD Würth Elektronik |
130,089 |
|
Datasheet |
|
WE-KI HC | 0402 (1006 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 30 nH | ±2% | 450 mA | - | Unshielded | 400mOhm Max | 25 @ 250MHz | 2.9GHz | AEC-Q200 | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0402 (1006 Metric) | 0.043" L x 0.024" W (1.10mm x 0.60mm) | 0.024" (0.60mm) |
|
|
744916136FIXED IND 36NH 480MA 360MOHM SMD Würth Elektronik |
157,992 |
|
Datasheet |
|
WE-KI HC | 0402 (1006 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 36 nH | ±2% | 480 mA | - | Unshielded | 360mOhm Max | 26 @ 250MHz | 2.8GHz | AEC-Q200 | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0402 (1006 Metric) | 0.043" L x 0.024" W (1.10mm x 0.60mm) | 0.024" (0.60mm) |
|
|
744916137FIXED IND 37NH 470MA 480MOHM SMD Würth Elektronik |
199,695 |
|
Datasheet |
|
WE-KI HC | 0402 (1006 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 37 nH | ±2% | 470 mA | - | Unshielded | 480mOhm Max | 26 @ 250MHz | 2.7GHz | AEC-Q200 | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0402 (1006 Metric) | 0.043" L x 0.024" W (1.10mm x 0.60mm) | 0.024" (0.60mm) |
|
|
744916139FIXED IND 39NH SMD Würth Elektronik |
124,496 |
|
Datasheet |
|
WE-KI HC | 0402 (1006 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 39 nH | ±2% | - | - | Unshielded | - | - | - | AEC-Q200 | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0402 (1006 Metric) | 0.043" L x 0.024" W (1.10mm x 0.60mm) | 0.024" (0.60mm) |
|
|
744916140FIXED IND 40NH 450MA 520MOHM SMD Würth Elektronik |
123,396 |
|
Datasheet |
|
WE-KI HC | 0402 (1006 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 40 nH | ±2% | 450 mA | - | Unshielded | 520mOhm Max | 28 @ 250MHz | 2.6GHz | AEC-Q200 | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0402 (1006 Metric) | 0.043" L x 0.024" W (1.10mm x 0.60mm) | 0.024" (0.60mm) |
|
|
744916143FIXED IND 43NH 450MA 520MOHM SMD Würth Elektronik |
143,493 |
|
Datasheet |
|
WE-KI HC | 0402 (1006 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 43 nH | ±2% | 450 mA | - | Unshielded | 520mOhm Max | 26 @ 250MHz | 2.5GHz | AEC-Q200 | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0402 (1006 Metric) | 0.043" L x 0.024" W (1.10mm x 0.60mm) | 0.024" (0.60mm) |
|
|
744916151FIXED IND 51NH 360MA 700MOHM SMD Würth Elektronik |
147,278 |
|
Datasheet |
|
WE-KI HC | 0402 (1006 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 51 nH | ±2% | 360 mA | - | Unshielded | 700mOhm Max | 26 @ 250MHz | 2.3GHz | AEC-Q200 | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0402 (1006 Metric) | 0.043" L x 0.024" W (1.10mm x 0.60mm) | 0.024" (0.60mm) |
