Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | RoHs | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
.jpg)
|
74479887147CFIXED IND 470NH 2.8A 40 MOHM SMD Würth Elektronik |
192,519 |
|
Datasheet |
 |
WE-PMI | 1008 (2520 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | - | 470 nH | ±20% | 2.8 A | 3.1A | Shielded | 40mOhm | 15 @ 1MHz | 90MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.039" (1.00mm) |
|
74404043102AFIXED IND 1MH 160MA 10.342OHM SM Würth Elektronik |
181,611 |
|
Datasheet |
|
WE-LQS | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 1 mH | ±20% | 160 mA | 90mA | Shielded | 10.342Ohm | - | 3MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | SMD | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.098" (2.50mm) |
.jpg)
|
744786121FIXED IND 27NH 600MA 700MOHM SMD Würth Elektronik |
175,450 |
|
Datasheet |
|
WE-MK | 0603 (1608 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Ceramic | 27 nH | ±5% | 600 mA | - | Unshielded | 700mOhm Max | 10 @ 100MHz | 2GHz | - | -40°C ~ 120°C | 100 MHz | - | Surface Mount | 0603 | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.037" (0.95mm) |
|

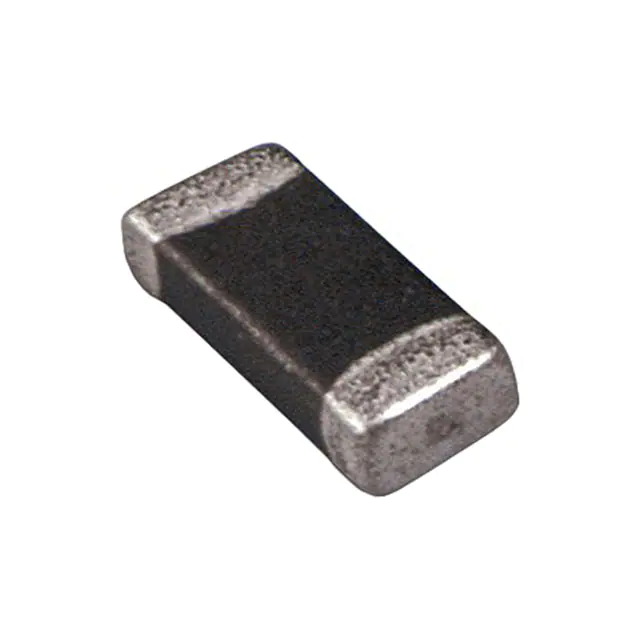

74479157FIXED IND 2.7UH 50MA 600MOHM SMD Würth Elektronik |
139,574 |
|
- |
|
WE-MI | 1206 (3216 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Nickel Zinc Ferrite (NiZn) | 2.7 µH | ±10% | 50 mA | - | Unshielded | 600mOhm Max | 45 @ 10MHz | 52MHz | - | -55°C ~ 125°C | 10 MHz | - | Surface Mount | 1206 | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.051" (1.30mm) |
|
74478611FIXED IND 10NH 600MA 450MOHM SMD Würth Elektronik |
154,225 |
|
Datasheet |
|
WE-MK | 0603 (1608 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Ceramic | 10 nH | ±5% | 600 mA | - | Unshielded | 450mOhm Max | 8 @ 100MHz | 3.7GHz | - | -40°C ~ 120°C | 100 MHz | - | Surface Mount | 0603 | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.037" (0.95mm) |
|
|
74479787222FIXED IND 2.2UH 1.5A 104MOHM SMD Würth Elektronik |
125,639 |
|
- |
|
WE-PMI | 1008 (2520 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Nickel Zinc Ferrite (NiZn) | 2.2 µH | ±20% | 1.5 A | 700mA | Shielded | 104mOhm Max | 15 @ 1MHz | 60MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1008 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.039" (1.00mm) |
|

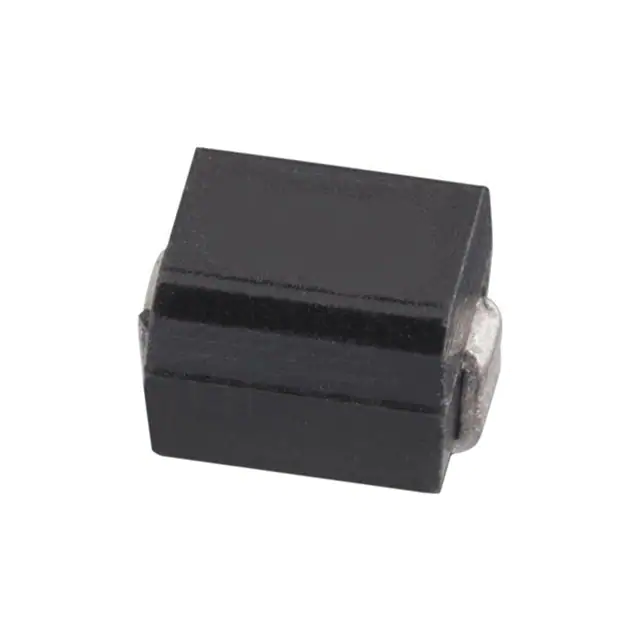

744766082FIXED IND 8.2UH 270MA 1.4OHM SMD Würth Elektronik |
108,032 |
|
Datasheet |
|
WE-GF | 1812 (4532 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 8.2 µH | ±10% | 270 mA | - | Unshielded | 1.4Ohm Max | 50 @ 7.96MHz | 30MHz | - | -40°C ~ 105°C | 7.96 MHz | - | Surface Mount | 4532 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.142" (3.60mm) |
.jpg)
|
74479775222FIXED IND 2.2UH 700MA 230MOHM SM Würth Elektronik |
148,457 |
|
Datasheet |
|
WE-PMI | 0805 (2012 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | - | 2.2 µH | ±20% | 700 mA | 500mA | Shielded | 230mOhm | 10 @ 1MHz | 70MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.039" (1.00mm) |
.jpg)
|
74479763147FIXED IND 470NH 800MA 300MOHM SM Würth Elektronik |
103,213 |
|
- |
|
WE-PMI | 0603 (1608 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | - | 470 nH | ±20% | 800 mA | 200mA | Shielded | 300mOhm | 10 @ 1MHz | 250MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.037" (0.95mm) |
|

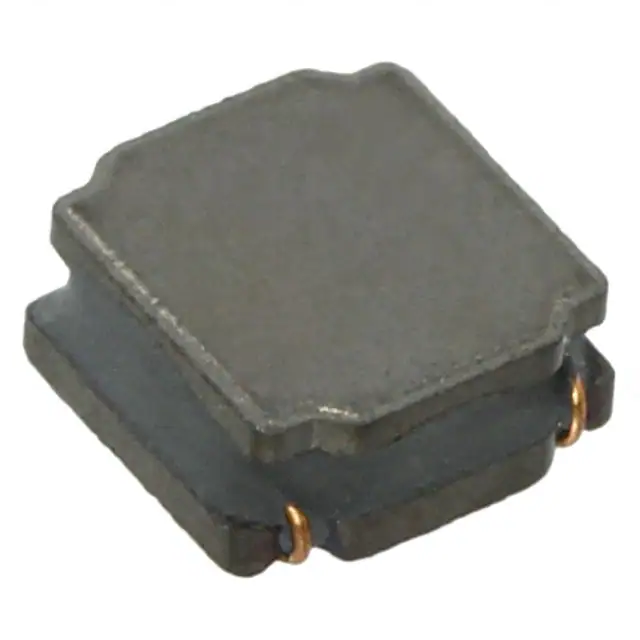

74405020010FIXED IND 1UH 1.65A 90 MOHM SMD Würth Elektronik |
143,847 |
|
Datasheet |
|
WE-LQSH | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1 µH | ±20% | 1.65 A | 3.85A | Shielded | 90mOhm Max | - | 84MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | SMD | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.039" (1.00mm) |
