Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | RoHs | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
744778930WFIXED IND 1MH 180MA 9.44 OHM SMD Würth Elektronik |
146,047 |
|
Datasheet |
 |
WE-PDW | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1 mH | ±20% | 180 mA | 180mA | Shielded | 9.44Ohm Max | - | 2MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.287" L x 0.287" W (7.30mm x 7.30mm) | 0.138" (3.50mm) |
|
|
7447789133WFIXED IND 33UH 1.1A 280 MOHM SMD Würth Elektronik |
108,923 |
|
Datasheet |
|
WE-PDW | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 33 µH | ±20% | 1.1 A | 1.15A | Shielded | 280mOhm Max | - | 15.6MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.287" L x 0.287" W (7.30mm x 7.30mm) | 0.138" (3.50mm) |
|
|
7447779147WFIXED IND 47UH 1A 260 MOHM SMD Würth Elektronik |
106,477 |
|
Datasheet |
|
WE-PDW | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 47 µH | ±20% | 1 A | 1.1A | Shielded | 260mOhm Max | - | 10MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 7345 | 0.287" L x 0.287" W (7.30mm x 7.30mm) | 0.177" (4.50mm) |
|
784777068FIXED IND 6.8UH 2.2A 98 MOHM SMD Würth Elektronik |
109,217 |
|
Datasheet |
|
WE-PDA | Nonstandard, 4 Lead | Tape & Reel (TR) | Active | Drum Core, Wirewound | Nickel Zinc Ferrite (NiZn) | 6.8 µH | ±20% | 2.2 A | 3.2A | Shielded | 98mOhm Max | - | 47.3MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 7345 | 0.287" L x 0.287" W (7.30mm x 7.30mm) | 0.169" (4.30mm) |
1.2mm.jpg)
|

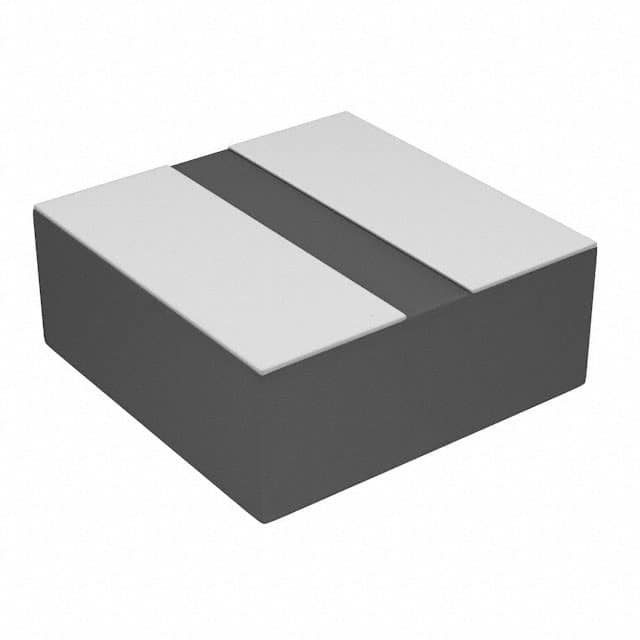

78438334010FIXED IND 1UH 2.75A 50.5MOHM SMD Würth Elektronik |
137,596 |
|
Datasheet |
|
WE-MAIA | 1212 (3030 Metric) | Tape & Reel (TR) | Active | Molded | Iron Alloy | 1 µH | ±30% | 2.75 A | 6.6A | Shielded | 50.5mOhm Max | - | 80MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 3012 | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.047" (1.20mm) |
|
|
78438334068FIXED IND 6.8UH 880MA 423.4 MOHM Würth Elektronik |
187,292 |
|
Datasheet |
|
WE-MAIA | 1212 (3030 Metric) | Tape & Reel (TR) | Active | Molded | Iron Alloy | 6.8 µH | ±30% | 880 mA | 2.7A | Shielded | 423.4mOhm Max | - | 25MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 3012 | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.047" (1.20mm) |
|
74279408ENTSTR-DROSSEL Würth Elektronik |
155,509 |
|
- |
|
WE-ZB | Vertical, 2 PC Pin | Bulk | Active | - | Ferrite | 100 µH | ±35% | 500 mA | - | Unshielded | 170mOhm Max | - | - | - | -40°C ~ 85°C | 10 kHz | - | Through Hole | Radial | 0.315" L x 0.138" W (8.00mm x 3.50mm) | 0.374" (9.50mm) |
|

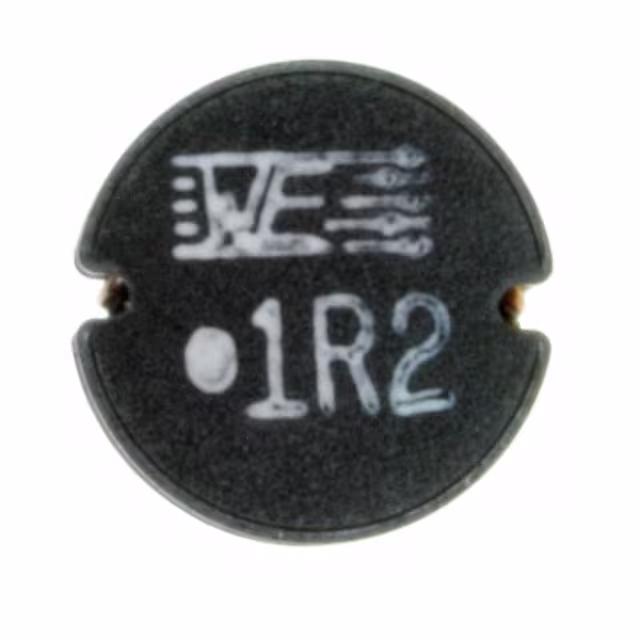

744776012AFIXED IND 1.2UH 5.5A 20 MOHM SMD Würth Elektronik |
153,251 |
|
Datasheet |
|
WE-PD2 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1.2 µH | ±20% | 5.5 A | - | Unshielded | 20mOhm Max | - | 130MHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.374" L x 0.374" W (9.50mm x 9.50mm) | 0.228" (5.80mm) |
|

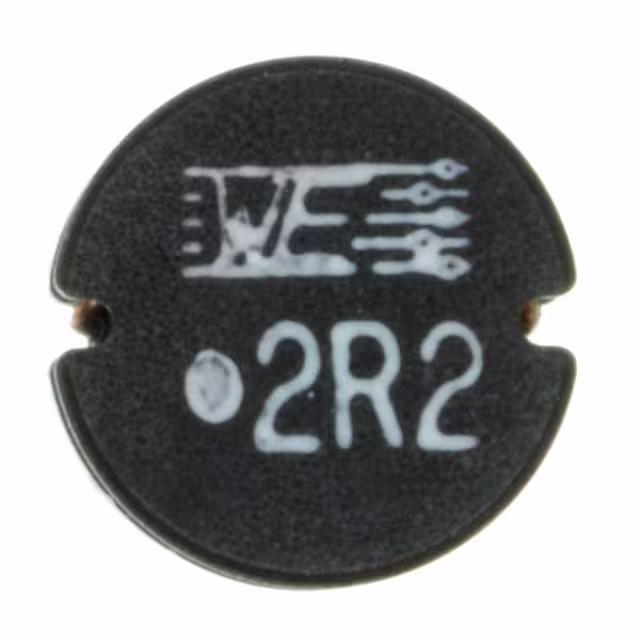

744776022AFIXED IND 2.2UH 5.4A 20 MOHM SMD Würth Elektronik |
131,805 |
|
Datasheet |
|
WE-PD2 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2.2 µH | ±20% | 5.4 A | - | Unshielded | 20mOhm Max | 35 @ 7.96MHz | 68MHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.374" L x 0.374" W (9.50mm x 9.50mm) | 0.228" (5.80mm) |
|

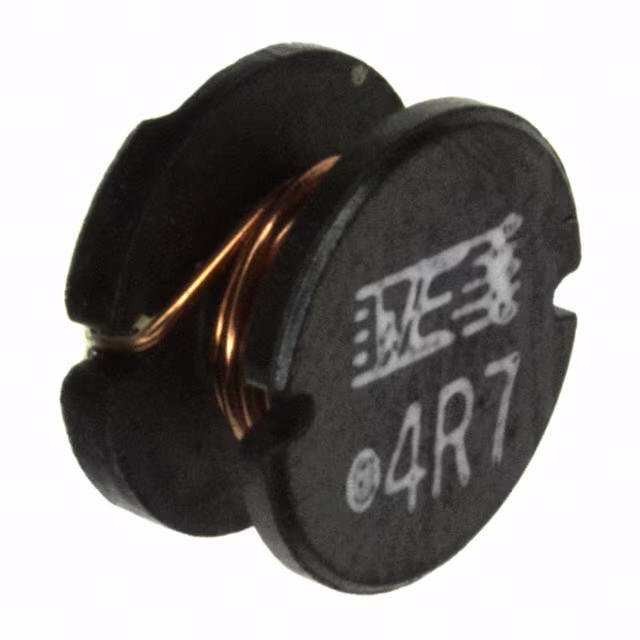

744776047AFIXED IND 4.7UH 4A 40 MOHM SMD Würth Elektronik |
199,274 |
|
Datasheet |
|
WE-PD2 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 4.7 µH | ±20% | 4 A | - | Unshielded | 40mOhm Max | 33 @ 7.96MHz | 40MHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.374" L x 0.374" W (9.50mm x 9.50mm) | 0.228" (5.80mm) |
