Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | RoHs | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
7447798241FIXED IND 24UH 4.5A 39.5MOHM SMD Würth Elektronik |
194,954 |
|
Datasheet |
 |
WE-PDF | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Nickel Zinc Ferrite (NiZn) | 24 µH | ±20% | 4.5 A | 3.25A | Shielded | 39.5mOhm Max | - | 16MHz | - | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.402" L x 0.402" W (10.20mm x 10.20mm) | 0.252" (6.40mm) |
|

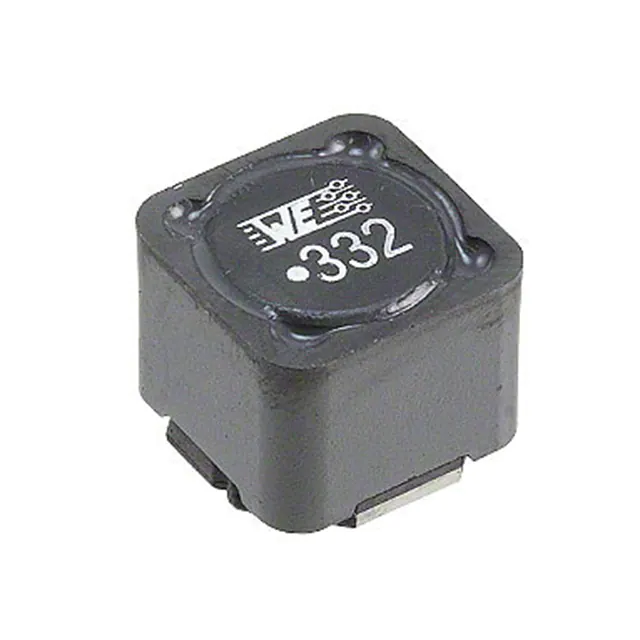

7687709332FIXED IND 3.3MH 370MA 5.2OHM SMD Würth Elektronik |
140,982 |
|
Datasheet |
|
WE-PD HV | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 3.3 mH | ±20% | 370 mA | 520mA | Shielded | 5.2Ohm Max | - | 600kHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.413" (10.50mm) |
|
74459215FIXED IND 150UH 1.3A 0.293OHM SM Würth Elektronik |
195,635 |
|
Datasheet |
|
WE-PD3 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | - | 150 µH | ±20% | 1.3 A | 2.1A | Shielded | 293mOhm Max | - | 4.6MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.730" L x 0.600" W (18.54mm x 15.24mm) | 0.300" (7.62mm) |
|

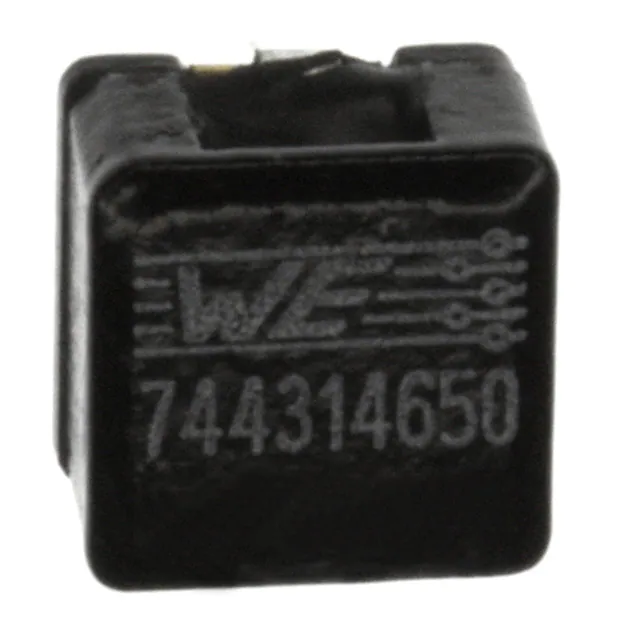

744314650FIXED IND 6.5UH 6A 21.5 MOHM SMD Würth Elektronik |
128,830 |
|
Datasheet |
|
WE-HCI | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 6.5 µH | ±20% | 6 A | 6A | Shielded | 21.5mOhm | - | 50MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | 7050 | 0.276" L x 0.272" W (7.00mm x 6.90mm) | 0.197" (5.00mm) |
|
744311150FIXED IND 1.5UH 11A 6.6 MOHM SMD Würth Elektronik |
125,223 |
|
Datasheet |
|
WE-HCI | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 1.5 µH | ±20% | 11 A | 14A | Shielded | 6.6mOhm | - | 72MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | 7040 | 0.276" L x 0.272" W (7.00mm x 6.90mm) | 0.157" (4.00mm) |
|
|
744311068FIXED IND 680NH 17A 3.1 MOHM SMD Würth Elektronik |
139,627 |
|
Datasheet |
|
WE-HCI | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 680 nH | ±20% | 17 A | 20A | Shielded | 3.1mOhm | - | 105MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | 7040 | 0.276" L x 0.272" W (7.00mm x 6.90mm) | 0.157" (4.00mm) |
|

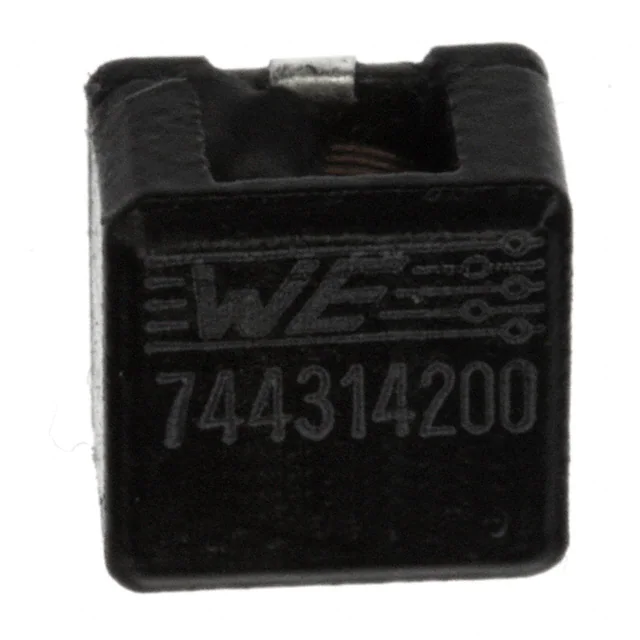

744314200FIXED IND 2UH 11.5A 5.85MOHM SMD Würth Elektronik |
193,453 |
|
Datasheet |
|
WE-HCI | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 2 µH | ±20% | 11.5 A | 9A | Shielded | 5.85mOhm | - | 68MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | 7050 | 0.276" L x 0.272" W (7.00mm x 6.90mm) | 0.197" (5.00mm) |
|
744314850FIXED IND 8.5UH 4A 32.5 MOHM SMD Würth Elektronik |
199,861 |
|
Datasheet |
|
WE-HCI | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 8.5 µH | ±20% | 4 A | 4.5A | Shielded | 32.5mOhm | - | 44MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | 7050 | 0.276" L x 0.272" W (7.00mm x 6.90mm) | 0.197" (5.00mm) |
|

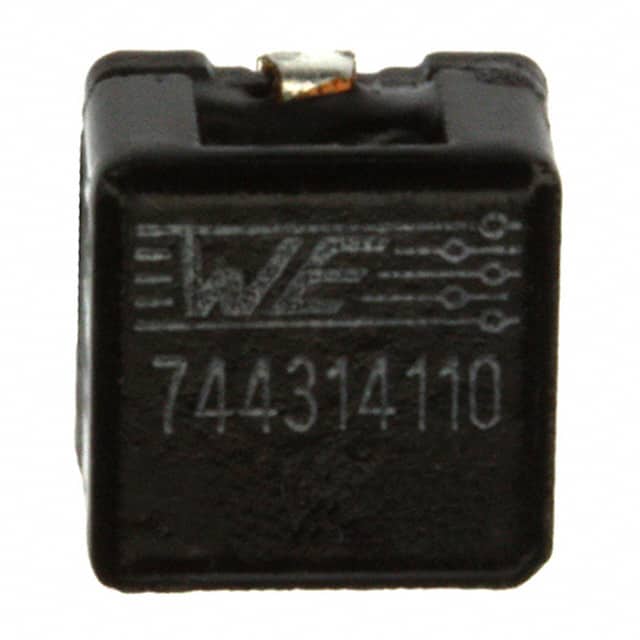

744314110FIXED IND 1.1UH 15A 3.15MOHM SMD Würth Elektronik |
118,944 |
|
Datasheet |
|
WE-HCI | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 1.1 µH | ±20% | 15 A | 13A | Shielded | 3.15mOhm | - | 135MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | 7050 | 0.276" L x 0.272" W (7.00mm x 6.90mm) | 0.197" (5.00mm) |
|
|
744311330FIXED IND 3.3UH 6.5A 17.2MOHM SM Würth Elektronik |
195,142 |
|
Datasheet |
|
WE-HCI | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 3.3 µH | ±20% | 6.5 A | 11A | Shielded | 17.2mOhm | - | 43MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | 7040 | 0.276" L x 0.272" W (7.00mm x 6.90mm) | 0.157" (4.00mm) |
