Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | RoHs | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
FP0505R1-R100-RFIXED IND 100NH 30A 0.38MOHM SMD |
160,929 |
|
Datasheet |
 |
FP0505R | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 100 nH | ±10% | 30 A | 24A | Unshielded | 0.38mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.189" (4.80mm) |
|
DRA74-102-RFIXED IND 1MH 260MA 4.19 OHM SMD |
120,754 |
|
Datasheet |
|
DRA | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 1 mH | ±20% | 260 mA | 292mA | Shielded | 4.19Ohm | - | - | AEC-Q200 | -40°C ~ 165°C | 100 kHz | - | Surface Mount | - | 0.299" L x 0.299" W (7.60mm x 7.60mm) | 0.171" (4.35mm) |
|

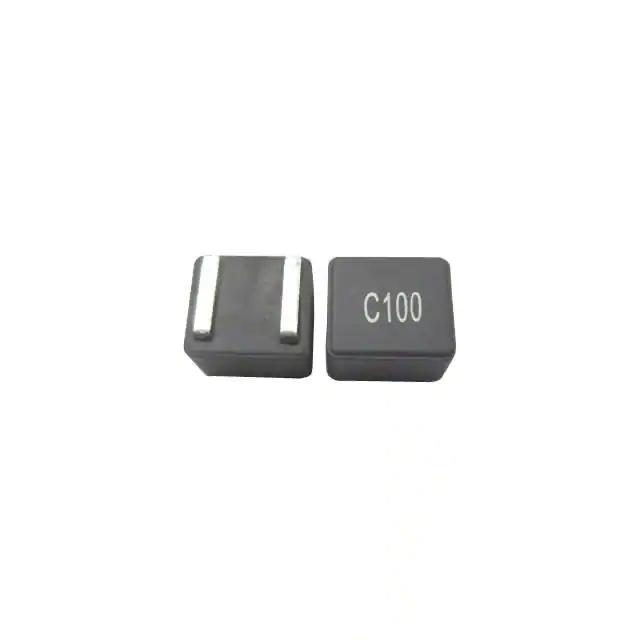

AFSI000909084R7M05INDUCTOR POWER |
120,986 |
|
Datasheet |
|
AFSI | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 4.7 µH | ±20% | 15 A | 17.5A | Shielded | 8.5mOhm Max | - | - | AEC-Q200 | -50°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.366" L x 0.354" W (9.30mm x 9.00mm) | 0.335" (8.50mm) |
|

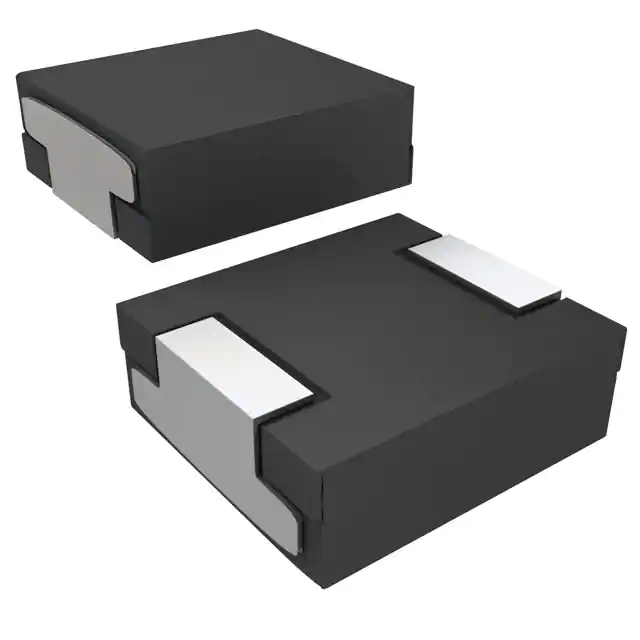

IHLP4040DZERR56M01FIXED IND 560NH 27.5A 1.95 MOHM |
142,665 |
|
Datasheet |
|
IHLP-4040DZ-01 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 560 nH | ±20% | 27.5 A | 49A | Shielded | 1.95mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | 4040 | 0.425" L x 0.400" W (10.80mm x 10.16mm) | 0.157" (4.00mm) |
|
PCMB063T-2R2MSFIXED IND 2.2UH 8A 20 MOHM SMD |
150,370 |
|
Datasheet |
|
PCMB | Nonstandard | Tape & Reel (TR) | Active | - | - | 2.2 µH | ±20% | 8 A | 14A | Unshielded | 20mOhm Max | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.274" L x 0.260" W (6.95mm x 6.60mm) | 0.110" (2.80mm) |
|
ETQ-P4M330YFNFIXED IND 33UH 2.5A 189.2MOHM SM |
123,854 |
|
Datasheet |
|
PCC-M0645M | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 33 µH | ±20% | 2.5 A | 4.1A | Shielded | 189.2mOhm Max | - | - | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.256" L x 0.236" W (6.50mm x 6.00mm) | 0.177" (4.50mm) |
|
IHLP3232DZERR82M01FIXED IND 820NH 19A 4.42MOHM SMD |
168,162 |
|
Datasheet |
|
IHLP-3232DZ-01 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 820 nH | ±20% | 19 A | 24.2A | Shielded | 4.42mOhm Max | - | 53MHz | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.340" L x 0.322" W (8.64mm x 8.18mm) | 0.157" (4.00mm) |
|
|
IHLP3232DZER4R7M01FIXED IND 4.7UH 7.25A 32MOHM SMD |
169,244 |
|
Datasheet |
|
IHLP-3232DZ-01 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 4.7 µH | ±20% | 7.25 A | 15A | Shielded | 32mOhm Max | - | 20MHz | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.340" L x 0.322" W (8.64mm x 8.18mm) | 0.157" (4.00mm) |
|
5800-222-RCFIXED IND 2.2MH 170MA 5.3 OHM TH |
141,737 |
|
Datasheet |
|
5800 | Axial | Tray | Active | Drum Core, Wirewound | Ferrite | 2.2 mH | ±10% | 170 mA | 240mA | Unshielded | 5.3Ohm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.275" Dia x 0.700" L (6.99mm x 17.78mm) | - |
|
|
PCMB063T-R10MSFIXED IND 100NH 32.5A 1.7MOHM SM |
100,951 |
|
Datasheet |
|
PCMB | Nonstandard | Tape & Reel (TR) | Active | - | - | 100 nH | ±20% | 32.5 A | 60A | Unshielded | 1.7mOhm Max | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.274" L x 0.260" W (6.95mm x 6.60mm) | 0.110" (2.80mm) |
|
|
5800-4R7-RCFIXED IND 4.7UH 3.1A 16 MOHM TH |
179,546 |
|
Datasheet |
|
5800 | Axial | Tray | Active | Drum Core, Wirewound | Ferrite | 4.7 µH | ±10% | 3.1 A | 5.4A | Unshielded | 16mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.275" Dia x 0.700" L (6.99mm x 17.78mm) | - |
|
|
5800-100-RCFIXED IND 10UH 2.1A 32 MOHM TH |
194,875 |
|
Datasheet |
|
5800 | Axial | Tray | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±10% | 2.1 A | 3.6A | Unshielded | 32mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.275" Dia x 0.700" L (6.99mm x 17.78mm) | - |
|
|
5800-103-RCFIXED IND 10MH 76MA 24 OHM TH |
135,734 |
|
Datasheet |
|
5800 | Axial | Tray | Active | Drum Core, Wirewound | Ferrite | 10 mH | ±10% | 76 mA | 110mA | Unshielded | 24Ohm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.275" Dia x 0.700" L (6.99mm x 17.78mm) | - |
|
SRP1038A-5R6MFIXED IND 5.6UH 9A 19.3 MOHM SMD |
194,051 |
|
Datasheet |
|
SRP1038A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Carbonyl Powder | 5.6 µH | ±20% | 9 A | 14A | Shielded | 19.3mOhm Max | 20 @ 100kHz | 15MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.433" L x 0.394" W (11.00mm x 10.00mm) | 0.157" (4.00mm) |
|
|
PCMB063T-1R5MSFIXED IND 1.5UH 9A 15 MOHM SMD |
163,047 |
|
Datasheet |
|
PCMB | Nonstandard | Tape & Reel (TR) | Active | - | - | 1.5 µH | ±20% | 9 A | 18A | Unshielded | 15mOhm Max | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.274" L x 0.260" W (6.95mm x 6.60mm) | 0.110" (2.80mm) |
|
B82464A4104K000FIXED IND 100UH 1.03A 280MOHM SM |
133,085 |
|
Datasheet |
|
B82464A4 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 100 µH | ±10% | 1.03 A | 1.2A | Unshielded | 280mOhm Max | - | 100kHz | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.409" L x 0.409" W (10.40mm x 10.40mm) | 0.189" (4.80mm) |
|
IHLP4040DZER1R8M11FIXED IND 1.8UH 17A 5 MOHM SMD |
176,285 |
|
Datasheet |
|
IHLP-4040DZ-11 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 1.8 µH | ±20% | 17 A | 16A | Shielded | 5mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | 4040 | 0.425" L x 0.400" W (10.80mm x 10.16mm) | 0.157" (4.00mm) |
|
|
IHLP3232DZER6R8M11FIXED IND 6.8UH 7A 33.4 MOHM SMD |
182,169 |
|
Datasheet |
|
IHLP-3232DZ-11 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 6.8 µH | ±20% | 7 A | 6.7A | Shielded | 33.4mOhm Max | - | 13MHz | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.340" L x 0.322" W (8.64mm x 8.18mm) | 0.157" (4.00mm) |
|
B82442T1334K050FIXED IND 330UH 280MA 3.29OHM SM |
181,991 |
|
Datasheet |
|
SIMID | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 330 µH | ±10% | 280 mA | 430mA | Unshielded | 3.29Ohm Max | 20 @ 796kHz | 3.4MHz | AEC-Q200 | - | 796 kHz | - | Surface Mount | 2220 (5650 Metric) | 0.220" L x 0.197" W (5.60mm x 5.00mm) | 0.209" (5.30mm) |
|
|
ETQ-P5M101YGKFIXED IND 100UH 2.1A 333MOHM SMD |
163,446 |
|
Datasheet |
|
PCC-M0850M | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 100 µH | ±20% | 2.1 A | 3A | Shielded | 333mOhm Max | - | - | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.335" L x 0.315" W (8.50mm x 8.00mm) | 0.197" (5.00mm) |
