Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | RoHs | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CDRH104RNP-101NCFIXED IND 100UH 1.25A 304MOHM SM |
179,910 |
|
Datasheet |
 |
CDRH104R | Nonstandard | Tape & Reel (TR) | Active | - | - | 100 µH | ±30% | 1.25 A | 1.35A | Shielded | 304mOhm Max | - | - | - | -40°C ~ 100°C | 100 kHz | - | Surface Mount | - | 0.402" L x 0.394" W (10.20mm x 10.00mm) | 0.157" (4.00mm) |
|
IHLM2525CZER1R0M01FIXED IND 1UH 11A 10 MOHM SMD |
145,500 |
|
Datasheet |
|
IHLM-2525CZ-01 | Nonstandard | Tape & Reel (TR) | Active | - | - | 1 µH | ±20% | 11 A | 22A | Shielded | 10mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.270" L x 0.255" W (6.86mm x 6.47mm) | 0.118" (3.00mm) |
|
SPM7054VC-470M-DFIXED IND 47UH 2.6A 0.186OHM SMD |
187,771 |
|
Datasheet |
|
SPM-VC-D | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 47 µH | ±20% | 2.6 A | 5.3A | Shielded | 186mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | 7054 | 0.295" L x 0.276" W (7.50mm x 7.00mm) | 0.213" (5.40mm) |
|
ASPIAIG-F6050-4R7M-TFIXED IND 4.7UH 8.5A 18.4MOHM SM |
102,352 |
|
Datasheet |
|
ASPIAIG-F | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 4.7 µH | ±20% | 8.5 A | 8A | Shielded | 18.4mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 6050 | 0.283" L x 0.272" W (7.20mm x 6.90mm) | 0.189" (4.80mm) |
|
P0250.104NLTFIXED IND 100UH 1.8A 190MOHM SMD |
148,452 |
|
Datasheet |
|
P0250NL | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 100 µH | ±15% | 1.8 A | 3A | Unshielded | 190mOhm Max | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.733" L x 0.596" W (18.62mm x 15.14mm) | 0.290" (7.36mm) |
|
DRA74-3R3-RFIXED IND 3.3UH 4.16A 16MOHM SMD |
135,202 |
|
Datasheet |
|
DRA | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 3.3 µH | ±20% | 4.16 A | 5.41A | Shielded | 16mOhm | - | - | AEC-Q200 | -40°C ~ 165°C | 100 kHz | - | Surface Mount | - | 0.299" L x 0.299" W (7.60mm x 7.60mm) | 0.171" (4.35mm) |
|
B82462G4102M000FIXED IND 1UH 3.4A 16 MOHM SMD |
130,653 |
|
Datasheet |
|
B82462G4 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1 µH | ±20% | 3.4 A | 4.4A | Shielded | 16mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.248" L x 0.248" W (6.30mm x 6.30mm) | 0.118" (3.00mm) |
|
FP1007R3-R12-RFIXED IND 115NH 61A 0.29MOHM SMD |
147,661 |
|
Datasheet |
|
FLAT-PAC, FP1007 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 115 nH | ±10% | 61 A | 94A | Unshielded | 0.29mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.402" L x 0.307" W (10.20mm x 7.80mm) | 0.295" (7.50mm) |
|
|
CDRH104RNP-2R5NCFIXED IND 2.5UH 6.1A 10.5MOHM SM |
146,347 |
|
Datasheet |
|
CDRH104R | Nonstandard | Tape & Reel (TR) | Active | - | - | 2.5 µH | ±30% | 6.1 A | 7.5A | Shielded | 10.5mOhm Max | - | - | - | -40°C ~ 100°C | 100 kHz | - | Surface Mount | - | 0.402" L x 0.394" W (10.20mm x 10.00mm) | 0.157" (4.00mm) |
|
|
P0250.333NLTFIXED IND 33UH 3A 66 MOHM SMD |
188,751 |
|
Datasheet |
|
P0250NL | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 33 µH | ±15% | 3 A | 5.5A | Unshielded | 66mOhm Max | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.733" L x 0.596" W (18.62mm x 15.14mm) | 0.290" (7.36mm) |
|
SRP5050FA-150M1IND,6X5.7X4.8MM,15UH20%,4A,SHD |
104,711 |
|
Datasheet |
|
SRP5050FA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 15 µH | ±20% | 4 A | 5.5A | Shielded | 66mOhm Max | - | 9MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.224" W (6.00mm x 5.70mm) | 0.197" (5.00mm) |
|

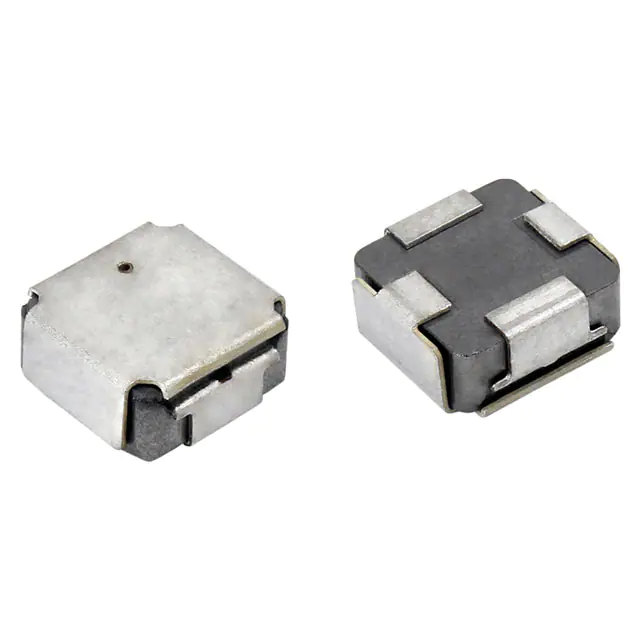

IHLE2525CDER220M5AIHLE-2525CD-5A 22 20% ER E3 |
157,305 |
|
Datasheet |
|
IHLE-2525CD-5A | Nonstandard, 4 Lead | Tape & Reel (TR) | Active | - | Metal Composite | 22 µH | ±20% | 2.8 A | 2.2A | Shielded | 174mOhm Max | - | 8.3MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | Nonstandard, 4 Lead | 0.284" L x 0.280" W (7.21mm x 7.12mm) | 0.132" (3.35mm) |
|

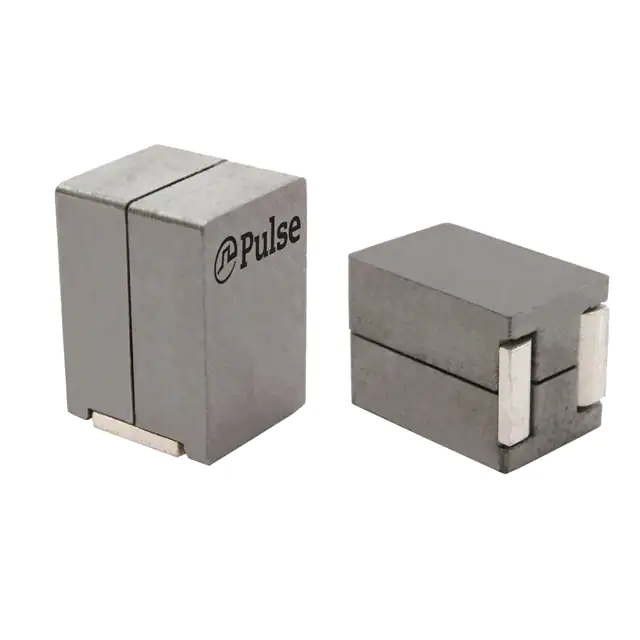

PA5300.121HLTIND PWR BEAD 120NH 115A SMD |
172,393 |
|
Datasheet |
|
PA5300.XXXHLT | Nonstandard | Tape & Reel (TR) | Active | - | - | 120 nH | ±15% | 115 A | 144A | Shielded | 0.1mOhm Max | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.433" L x 0.394" W (11.00mm x 10.00mm) | 0.610" (15.50mm) |
|
SRP1265A-2R2MFIXED IND 2.2UH 22A 4.2 MOHM SMD |
190,048 |
|
Datasheet |
|
SRP1265A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Carbonyl Powder | 2.2 µH | ±20% | 22 A | 37A | Shielded | 4.2mOhm Max | 20 @ 100kHz | 23MHz | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.531" L x 0.492" W (13.50mm x 12.50mm) | 0.252" (6.40mm) |
|
SRP1270-100MFIXED IND 10UH 10A 16.8 MOHM SMD |
133,060 |
|
Datasheet |
|
SRP1270 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron | 10 µH | ±20% | 10 A | 16A | Shielded | 16.8mOhm Max | - | 10MHz | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.539" L x 0.539" W (13.70mm x 13.70mm) | 0.276" (7.00mm) |
|
|
SRP1265A-6R8MFIXED IND 6.8UH 11.5A 11.5 MOHM |
195,156 |
|
Datasheet |
|
SRP1265A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Carbonyl Powder | 6.8 µH | ±20% | 11.5 A | 18A | Shielded | 11.5mOhm Max | 20 @ 100kHz | 13MHz | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.531" L x 0.492" W (13.50mm x 12.50mm) | 0.252" (6.40mm) |
|
SRP6540-150MFIXED IND 15UH 2.9A 121 MOHM SMD |
176,600 |
|
Datasheet |
|
SRP6540 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 15 µH | ±20% | 2.9 A | 2.9A | Shielded | 121mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.283" L x 0.256" W (7.20mm x 6.50mm) | 0.157" (4.00mm) |
|
|
SRP1270-3R3MFIXED IND 3.3UH 18A 6.6 MOHM SMD |
197,534 |
|
Datasheet |
|
SRP1270 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron | 3.3 µH | ±20% | 18 A | 35A | Shielded | 6.6mOhm Max | - | 20MHz | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.539" L x 0.539" W (13.70mm x 13.70mm) | 0.276" (7.00mm) |
|
|
SRP6540-270MFIXED IND 27UH 2A 290 MOHM SMD |
157,866 |
|
Datasheet |
|
SRP6540 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 27 µH | ±20% | 2 A | 2A | Shielded | 290mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.283" L x 0.256" W (7.20mm x 6.50mm) | 0.157" (4.00mm) |
|

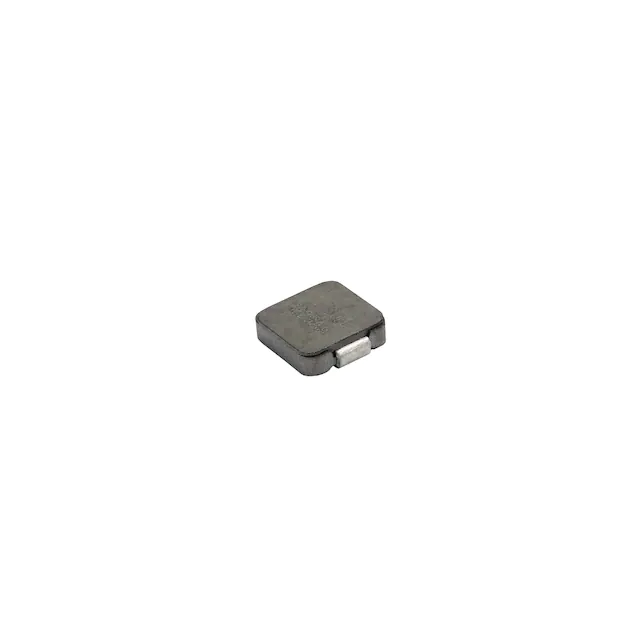

IHSR1616ABER33NM01FIXED IND 33NH 37A 1.15 MOHM SMD |
196,729 |
|
Datasheet |
|
IHSR-1616AB-01 | Nonstandard | Tape & Reel (TR) | Active | - | - | 33 nH | ±20% | 37 A | 41A | Shielded | 1.15mOhm | - | 856MHz | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.180" L x 0.160" W (4.57mm x 4.06mm) | 0.047" (1.20mm) |
