Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | RoHs | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
B82464G4473M000FIXED IND 47UH 1.55A 95 MOHM SMD |
175,968 |
|
Datasheet |
 |
B82464G4 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 47 µH | ±20% | 1.55 A | 1.8A | Shielded | 95mOhm Max | - | 9MHz | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.409" L x 0.409" W (10.40mm x 10.40mm) | 0.189" (4.80mm) |
|
|
B82464G4222M000FIXED IND 2.2UH 6.5A 10 MOHM SMD |
160,476 |
|
Datasheet |
|
B82464G4 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2.2 µH | ±20% | 6.5 A | 7A | Shielded | 10mOhm Max | - | 72MHz | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.409" L x 0.409" W (10.40mm x 10.40mm) | 0.189" (4.80mm) |
|
|
B82464G4154M000FIXED IND 150UH 850MA 320MOHM SM |
174,475 |
|
Datasheet |
|
B82464G4 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 150 µH | ±20% | 850 mA | 900mA | Shielded | 320mOhm Max | - | 4.5MHz | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.409" L x 0.409" W (10.40mm x 10.40mm) | 0.189" (4.80mm) |
|
|
B82464G4104M000FIXED IND 100UH 1.05A 220MOHM SM |
190,948 |
|
Datasheet |
|
B82464G4 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 100 µH | ±20% | 1.05 A | 1.15A | Shielded | 220mOhm Max | - | 6.5MHz | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.409" L x 0.409" W (10.40mm x 10.40mm) | 0.189" (4.80mm) |
|
|
B82464G4683M000FIXED IND 68UH 1.3A 130 MOHM SMD |
131,313 |
|
Datasheet |
|
B82464G4 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 68 µH | ±20% | 1.3 A | 1.45A | Shielded | 130mOhm Max | - | 8MHz | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.409" L x 0.409" W (10.40mm x 10.40mm) | 0.189" (4.80mm) |
|
|
B82464G4333M000FIXED IND 33UH 1.85A 75 MOHM SMD |
183,723 |
|
Datasheet |
|
B82464G4 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 33 µH | ±20% | 1.85 A | 2.1A | Shielded | 75mOhm Max | - | 10MHz | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.409" L x 0.409" W (10.40mm x 10.40mm) | 0.189" (4.80mm) |
|
|
B82464G4103M000FIXED IND 10UH 3.4A 30 MOHM SMD |
124,672 |
|
Datasheet |
|
B82464G4 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 3.4 A | 3.5A | Shielded | 30mOhm Max | - | 22MHz | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.409" L x 0.409" W (10.40mm x 10.40mm) | 0.189" (4.80mm) |
|
SRP1250-9R0MFIXED IND 9UH 10A 22.5 MOHM SMD |
172,196 |
|
Datasheet |
|
SRP1250 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron | 9 µH | ±20% | 10 A | 18A | Shielded | 22.5mOhm Max | - | - | - | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.547" L x 0.531" W (13.90mm x 13.50mm) | 0.232" (5.90mm) |
|
7447055FIXED IND 150UH 5.4A 42 MOHM TH |
186,960 |
|
Datasheet |
|
WE-FI | Radial | Bulk | Active | Toroidal | Ferrite | 150 µH | ±20% | 5.4 A | - | Unshielded | 42mOhm Max | - | - | - | -25°C ~ 125°C | 10 kHz | - | Through Hole | - | 1.024" Dia x 0.512" W (26.00mm x 13.00mm) | - |
|
FP1007R3-R22-RFIXED IND 215NH 61A 0.29MOHM SMD |
118,213 |
|
Datasheet |
|
FLAT-PAC, FP1007 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 215 nH | ±10% | 61 A | 50A | Unshielded | 0.29mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.402" L x 0.307" W (10.20mm x 7.80mm) | 0.295" (7.50mm) |
|
B82477P4333M000FIXED IND 33UH 3.35A 52 MOHM SMD |
130,187 |
|
Datasheet |
|
B82477P4 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 33 µH | ±20% | 3.35 A | 3.5A | Shielded | 52mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.335" (8.50mm) |
|
5240-RCFIXED IND 40UH 3A 82 MOHM TH |
196,296 |
|
Datasheet |
|
5200 | Axial | Bulk | Active | Drum Core, Wirewound | Ferrite | 40 µH | ±20% | 3 A | - | Unshielded | 82mOhm Max | - | 145MHz | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.310" Dia x 1.250" L (7.87mm x 31.75mm) | - |
|
744065101FIXED IND 100UH 1A 470 MOHM SMD |
190,918 |
|
Datasheet |
|
WE-TPC | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 100 µH | ±30% | 1 A | 900mA | Shielded | 470mOhm Max | - | 7MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.394" L x 0.394" W (10.00mm x 10.00mm) | 0.122" (3.10mm) |
|
|
744065100FIXED IND 10UH 3A 53 MOHM SMD |
165,702 |
|
Datasheet |
|
WE-TPC | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±30% | 3 A | 2.5A | Shielded | 53mOhm Max | - | 25MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.394" L x 0.394" W (10.00mm x 10.00mm) | 0.122" (3.10mm) |
|
|
B82477P4103M000FIXED IND 10UH 5.8A 19 MOHM SMD |
155,755 |
|
Datasheet |
|
B82477P4 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 5.8 A | 6.4A | Shielded | 19mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.335" (8.50mm) |
|
|
7440650047FIXED IND 4.7UH 4.6A 23 MOHM SMD |
181,669 |
|
Datasheet |
|
WE-TPC | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 4.7 µH | ±30% | 4.6 A | 4.2A | Shielded | 23mOhm Max | - | 40MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.394" L x 0.394" W (10.00mm x 10.00mm) | 0.122" (3.10mm) |
|

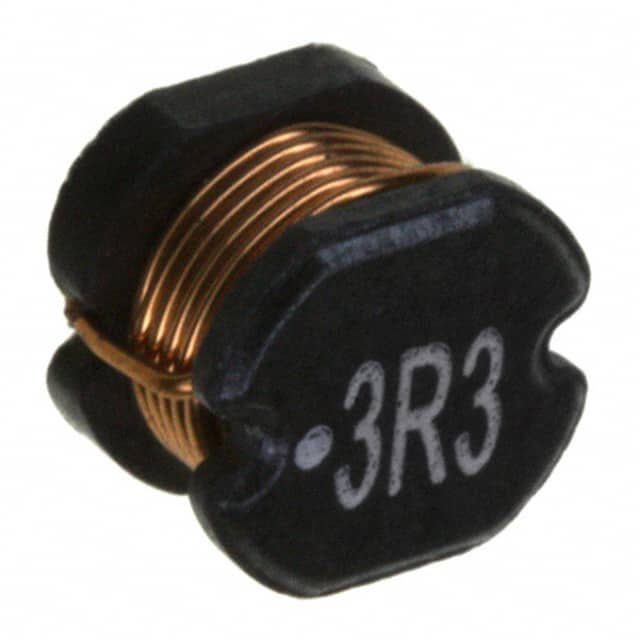

744774033FIXED IND 3.3UH 4A 60 MOHM SMD |
141,081 |
|
Datasheet |
|
WE-PD2 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 3.3 µH | ±20% | 4 A | 7.5A | Unshielded | 60mOhm Max | - | 43MHz | - | -40°C ~ 125°C | 10 kHz | - | Surface Mount | - | 0.228" L x 0.205" W (5.80mm x 5.20mm) | 0.191" (4.85mm) |
|

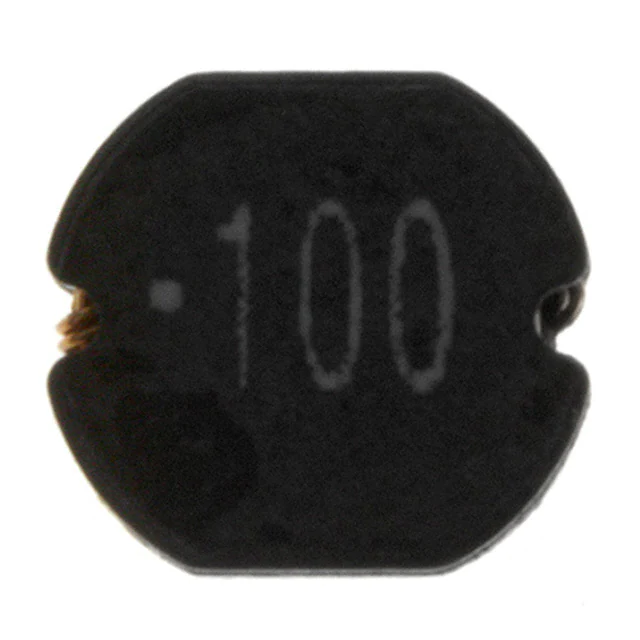

7447745100FIXED IND 10UH 1.7A 130 MOHM SMD |
160,398 |
|
Datasheet |
|
WE-PD2 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 1.7 A | 1.6A | Unshielded | 130mOhm Max | - | 28MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.228" L x 0.205" W (5.80mm x 5.20mm) | 0.091" (2.30mm) |
|
74477420FIXED IND 100UH 570MA 650MOHM SM |
178,745 |
|
Datasheet |
|
WE-PD2 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 100 µH | ±10% | 570 mA | 680mA | Unshielded | 650mOhm Max | - | 7.5MHz | - | -40°C ~ 125°C | 10 kHz | - | Surface Mount | - | 0.228" L x 0.205" W (5.80mm x 5.20mm) | 0.191" (4.85mm) |
|

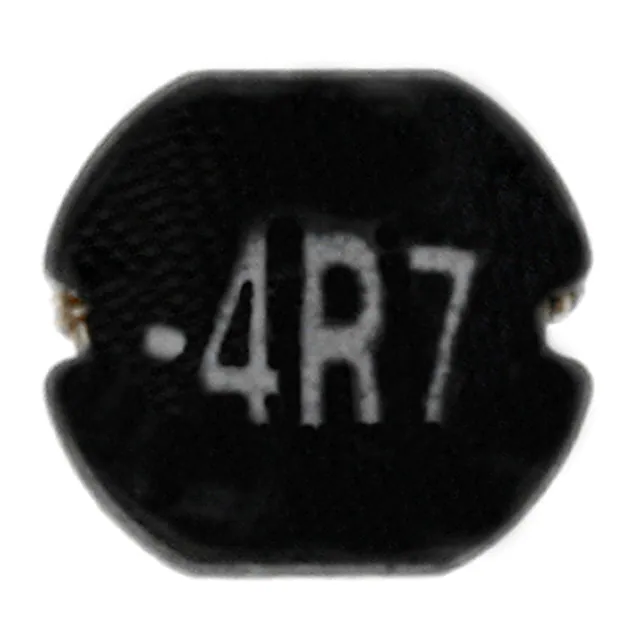

7447745047FIXED IND 4.7UH 2.5A 65 MOHM SMD |
112,533 |
|
Datasheet |
|
WE-PD2 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 4.7 µH | ±20% | 2.5 A | 2.4A | Unshielded | 65mOhm Max | - | 42MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.228" L x 0.205" W (5.80mm x 5.20mm) | 0.091" (2.30mm) |
