Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | RoHs | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
36502A27NJTDGFIXED IND 27NH 500MA 250MOHM SMD TE Connectivity Passive Product |
132,188 |
|
Datasheet |
 |
3650, Sigma Inductors | 0805 (2015 Metric) | Tape & Reel (TR) | Active | Wirewound | Ceramic | 27 nH | ±5% | 500 mA | - | Unshielded | 250mOhm Max | 55 @ 500MHz | 2.5GHz | AEC-Q200 | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.090" L x 0.068" W (2.29mm x 1.73mm) | 0.060" (1.52mm) |
|
|
36501J3N3JTDGFIXED IND 3.3NH 700MA 80MOHM SMD TE Connectivity Passive Product |
101,860 |
|
Datasheet |
|
3650, Sigma Inductors | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Wirewound | Ceramic | 3.3 nH | ±5% | 700 mA | - | Unshielded | 80mOhm Max | 22 @ 250MHz | 6GHz | AEC-Q200 | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.071" L x 0.044" W (1.80mm x 1.12mm) | 0.040" (1.02mm) |
|
|
36502A1R8JTDGFIXED IND 1.8UH 170MA 2.5OHM SMD TE Connectivity Passive Product |
112,736 |
|
Datasheet |
|
3650, Sigma Inductors | 0805 (2015 Metric) | Tape & Reel (TR) | Active | Wirewound | Ceramic | 1.8 µH | ±5% | 170 mA | - | Unshielded | 2.5Ohm Max | 16 @ 7.9MHz | 80MHz | AEC-Q200 | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.090" L x 0.068" W (2.29mm x 1.73mm) | 0.060" (1.52mm) |
|
|
36502AR82JTDGFIXED IND 820NH 180MA 2.35OHM SM TE Connectivity Passive Product |
152,288 |
|
Datasheet |
|
3650, Sigma Inductors | 0805 (2015 Metric) | Tape & Reel (TR) | Active | Wirewound | Ceramic | 820 nH | ±5% | 180 mA | - | Unshielded | 2.35Ohm Max | 23 @ 50MHz | 200MHz | AEC-Q200 | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.090" L x 0.068" W (2.29mm x 1.73mm) | 0.060" (1.52mm) |
|

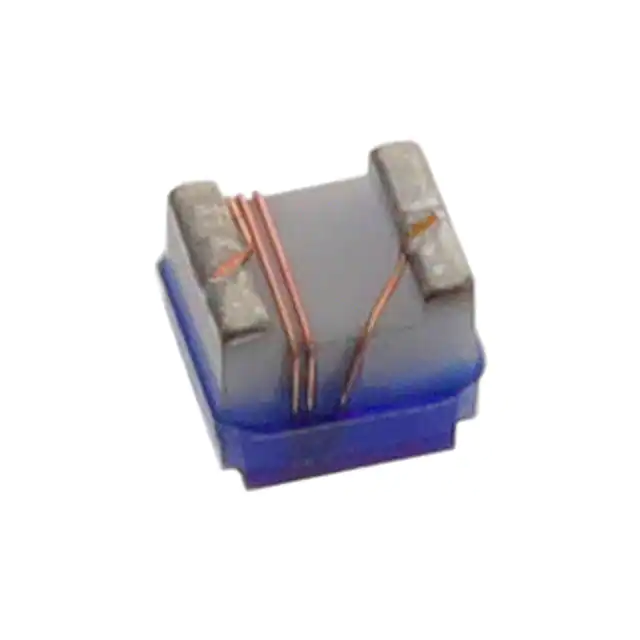

36502C27NJTDGFIXED IND 27NH 1A 130 MOHM SMD TE Connectivity Passive Product |
187,144 |
|
Datasheet |
|
3650, Sigma Inductors | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Wirewound | Ceramic | 27 nH | ±5% | 1 A | - | Unshielded | 130mOhm Max | 55 @ 350MHz | 1.6GHz | AEC-Q200 | -40°C ~ 125°C | 50 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.115" L x 0.110" W (2.92mm x 2.79mm) | 0.083" (2.10mm) |
|
|
36501J5N6JTDGFIXED IND 5.6NH 700MA 170MOHM SM TE Connectivity Passive Product |
132,832 |
|
Datasheet |
|
3650, Sigma Inductors | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Wirewound | Ceramic | 5.6 nH | ±5% | 700 mA | - | Unshielded | 170mOhm Max | 20 @ 250MHz | 5.8GHz | AEC-Q200 | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.071" L x 0.044" W (1.80mm x 1.12mm) | 0.040" (1.02mm) |
|
|
36502AR27JTDGFIXED IND 270NH 350MA 1 OHM SMD TE Connectivity Passive Product |
139,516 |
|
Datasheet |
|
3650, Sigma Inductors | 0805 (2015 Metric) | Tape & Reel (TR) | Active | Wirewound | Ceramic | 270 nH | ±5% | 350 mA | - | Unshielded | 1Ohm Max | 48 @ 250MHz | 650MHz | AEC-Q200 | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.090" L x 0.068" W (2.29mm x 1.73mm) | 0.060" (1.52mm) |
|
|
36502A3N3JTDGFIXED IND 3.3NH 600MA 80MOHM SMD TE Connectivity Passive Product |
114,772 |
|
Datasheet |
|
3650, Sigma Inductors | 0805 (2015 Metric) | Tape & Reel (TR) | Active | Wirewound | Ceramic | 3.3 nH | ±5% | 600 mA | - | Unshielded | 80mOhm Max | 50 @ 1.5GHz | 6GHz | AEC-Q200 | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.090" L x 0.068" W (2.29mm x 1.73mm) | 0.060" (1.52mm) |
|

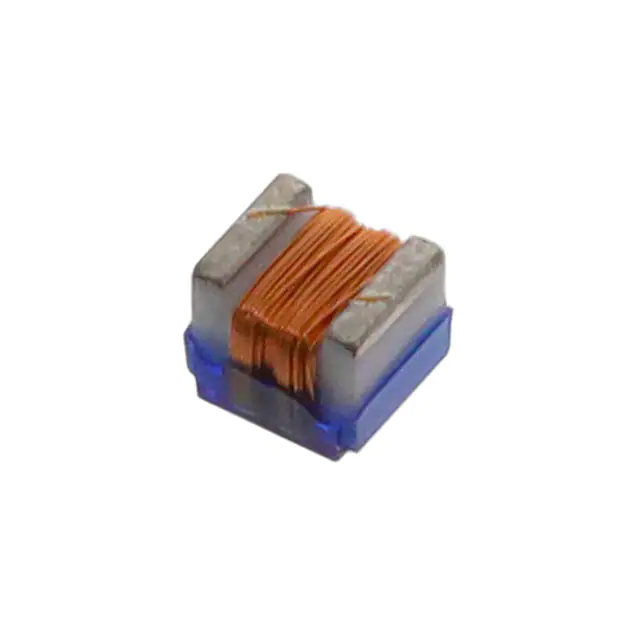

36502C3R9JTDGFIXED IND 3.9UH 260MA 3.6OHM SMD TE Connectivity Passive Product |
132,249 |
|
Datasheet |
|
3650, Sigma Inductors | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Wirewound | Ceramic | 3.9 µH | ±5% | 260 mA | - | Unshielded | 3.6Ohm Max | 20 @ 25MHz | 100MHz | AEC-Q200 | -40°C ~ 125°C | 7.9 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.115" L x 0.110" W (2.92mm x 2.79mm) | 0.083" (2.10mm) |
|

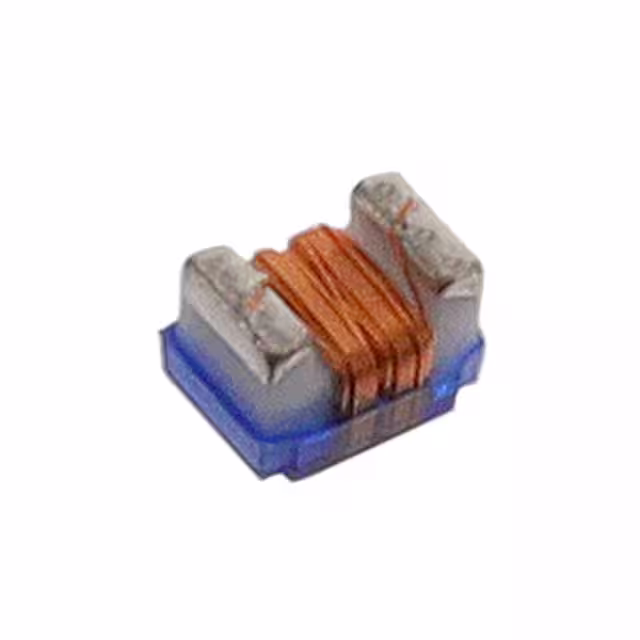

36502A1R5JTDGFIXED IND 1.5UH 170MA 2.5OHM SMD TE Connectivity Passive Product |
113,016 |
|
Datasheet |
|
3650, Sigma Inductors | 0805 (2015 Metric) | Tape & Reel (TR) | Active | Wirewound | Ceramic | 1.5 µH | ±5% | 170 mA | - | Unshielded | 2.5Ohm Max | 16 @ 25MHz | 100MHz | AEC-Q200 | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.090" L x 0.068" W (2.29mm x 1.73mm) | 0.060" (1.52mm) |
