Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | RoHs | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
74437346220FIXED IND 22UH 1.9A 0.19OHM SMD |
196,473 |
|
Datasheet |
 |
WE-LHMI | 2-SMD | Tape & Reel (TR) | Active | Molded | Iron Powder | 22 µH | ±20% | 1.9 A | 5.95A | Shielded | 190mOhm Max | - | 10MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.287" L x 0.260" W (7.30mm x 6.60mm) | 0.122" (3.10mm) |
|
VCHA105D-100MS6FIXED IND 10UH 8.7A 24.2MOHM SMD |
162,246 |
|
Datasheet |
|
VCHA105D | Nonstandard | Tape & Reel (TR) | Active | - | Metal | 10 µH | ±20% | 8.7 A | 10.9A | Unshielded | 24.2mOhm Max | - | - | AEC-Q200 | -55°C ~ 165°C | 100 kHz | - | Surface Mount | - | 0.427" L x 0.394" W (10.85mm x 10.00mm) | 0.213" (5.40mm) |
|
7447713150FIXED IND 15UH 2.2A 89 MOHM SMD |
121,809 |
|
Datasheet |
|
WE-PD Performance | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 15 µH | ±20% | 2.2 A | 3.4A | Shielded | 89mOhm Max | - | 19.5MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.394" L x 0.394" W (10.00mm x 10.00mm) | 0.118" (3.00mm) |
|
|
74437346025FIXED IND 2.5UH 5.5A 0.022OHM SM |
122,311 |
|
Datasheet |
|
WE-LHMI | 2-SMD | Tape & Reel (TR) | Active | Molded | Iron Powder | 2.5 µH | ±20% | 5.5 A | 17.3A | Shielded | 22mOhm Max | - | 30MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.287" L x 0.260" W (7.30mm x 6.60mm) | 0.122" (3.10mm) |
|
|
7447713047FIXED IND 4.7UH 4A 31 MOHM SMD |
146,126 |
|
Datasheet |
|
WE-PD Performance | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 4.7 µH | ±30% | 4 A | 6A | Shielded | 31mOhm Max | - | 42MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.394" L x 0.394" W (10.00mm x 10.00mm) | 0.118" (3.00mm) |
|
MPIA2510V2-4R7-RFIXED IND 4.7UH 1.22A 262MOHM SM |
163,699 |
|
Datasheet |
|
MPIA25-V2 | 1008 (2520 Metric) | Tape & Reel (TR) | Last Time Buy | Molded | Iron Powder | 4.7 µH | ±20% | 1.22 A | 1.8A | Shielded | 262mOhm Max | - | 25MHz | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1008 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.041" (1.05mm) |
|

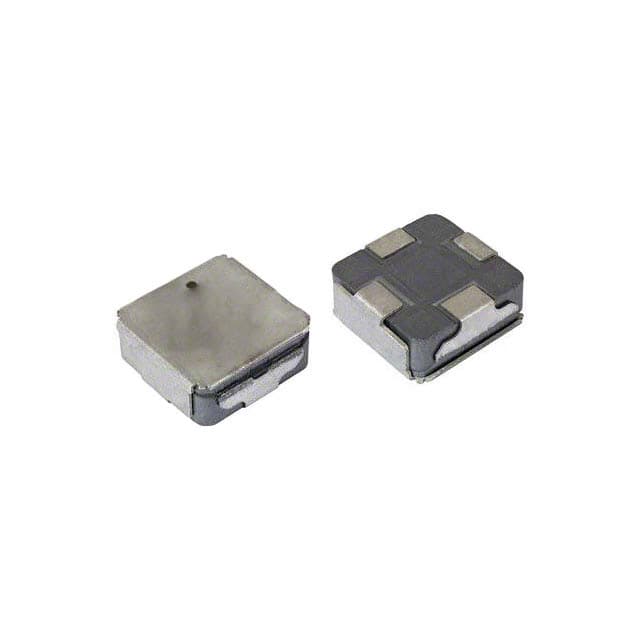

IHLE4040DDER220M5AFIXED IND 22UH 4.1A 75.44MOHM SM |
180,115 |
|
Datasheet |
|
IHLE-4040DD-5A | 4-SMD | Tape & Reel (TR) | Active | Wirewound | - | 22 µH | ±20% | 4.1 A | 6.4A | Shielded | 75.44mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.426" L x 0.426" W (10.82mm x 10.82mm) | 0.169" (4.30mm) |
|
|
74437346082FIXED IND 8.2UH 3.25A 0.068OHM |
109,479 |
|
Datasheet |
|
WE-LHMI | 2-SMD | Tape & Reel (TR) | Active | Molded | Iron Powder | 8.2 µH | ±20% | 3.25 A | 10.1A | Shielded | 68mOhm Max | - | 17MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.287" L x 0.260" W (7.30mm x 6.60mm) | 0.122" (3.10mm) |
|
744771147FIXED IND 47UH 2.21A 75 MOHM SMD |
107,050 |
|
Datasheet |
|
WE-PD | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 47 µH | ±20% | 2.21 A | 2.6A | Shielded | 75mOhm Max | - | 9.2MHz | AEC-Q200 | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.236" (6.00mm) |
|
7445110FIXED IND 10UH 1A 0.075OHM SMD |
106,815 |
|
Datasheet |
|
WE-PD3 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | - | 10 µH | ±20% | 1 A | 450mA | Shielded | 75mOhm Max | - | 30MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.260" L x 0.175" W (6.60mm x 4.45mm) | 0.115" (2.92mm) |
|
|
744771004FIXED IND 4.7UH 8.25A 11MOHM SMD |
112,925 |
|
Datasheet |
|
WE-PD | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 4.7 µH | ±20% | 8.25 A | 8A | Shielded | 11mOhm Max | - | 35MHz | AEC-Q200 | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.236" (6.00mm) |
|
|
744771122FIXED IND 22UH 3.37A 36 MOHM SMD |
144,182 |
|
Datasheet |
|
WE-PD | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 22 µH | ±20% | 3.37 A | 3.77A | Shielded | 36mOhm Max | - | 13.5MHz | AEC-Q200 | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.236" (6.00mm) |
|
744777147FIXED IND 47UH 1.03A 260MOHM SMD |
182,134 |
|
Datasheet |
|
WE-PD | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 47 µH | ±20% | 1.03 A | 1.1A | Shielded | 260mOhm Max | - | 10.5MHz | AEC-Q200 | -40°C ~ 125°C | 1 kHz | - | Surface Mount | 7345 | 0.287" L x 0.287" W (7.30mm x 7.30mm) | 0.177" (4.50mm) |
|
FPV1006-150-RFIXED IND 150NH 25A 0.41MOHM SMD |
178,122 |
|
Datasheet |
|
FPV1006 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 150 nH | ±10% | 25 A | 45A | Shielded | 0.41mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.382" L x 0.331" W (9.70mm x 8.40mm) | 0.252" (6.40mm) |
|
PA5005.102NLTFIXED IND 1UH 20A 4.52 MOHM SMD |
144,208 |
|
Datasheet |
|
PA5005.XXXNLT | Nonstandard | Tape & Reel (TR) | Active | Molded | Ferrite | 1 µH | ±20% | 20 A | 23A | Shielded | 4.52mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.260" L x 0.252" W (6.60mm x 6.40mm) | 0.197" (5.00mm) |
|
|
744771002FIXED IND 2.2UH 10A 8 MOHM SMD |
186,677 |
|
Datasheet |
|
WE-PD | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2.2 µH | ±20% | 10 A | 11A | Shielded | 8mOhm Max | - | 50MHz | AEC-Q200 | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.236" (6.00mm) |
|
7447714681FIXED IND 680UH 510MA 1.22OHM SM |
100,756 |
|
Datasheet |
|
WE-PD Performance | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 680 µH | ±20% | 510 mA | 710mA | Shielded | 1.22Ohm Max | - | 2.05MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.394" L x 0.394" W (10.00mm x 10.00mm) | 0.197" (5.00mm) |
|
|
PA5007.332NLTFIXED IND 3.3UH 10A 18 MOHM SMD |
143,755 |
|
Datasheet |
|
PA5007.XXXNLT | Nonstandard | Tape & Reel (TR) | Active | Molded | Ferrite | 3.3 µH | ±20% | 10 A | 15A | Shielded | 18mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.307" L x 0.299" W (7.80mm x 7.60mm) | 0.122" (3.10mm) |
|
7447715100FIXED IND 10UH 3.8A 30 MOHM SMD |
116,503 |
|
Datasheet |
|
WE-PD | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 3.8 A | 4.2A | Shielded | 30mOhm Max | - | 22MHz | AEC-Q200 | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.177" (4.50mm) |
|
744710215FIXED IND 2UH 15A 1.7 MOHM TH |
151,250 |
|
Datasheet |
|
WE-SD | Radial, Horizontal Cylinder (Open) | Bulk | Active | Drum Core, Wirewound | Ferrite | 2 µH | ±25% | 15 A | - | Unshielded | 1.7mOhm | - | 85MHz | - | -40°C ~ 150°C | 10 kHz | - | Through Hole | - | 0.394" Dia x 1.012" L (10.00mm x 25.70mm) | - |
