Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | RoHs | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CEP125NP-1R0MC-HDFIXED IND 1UH 16.5A 2.5 MOHM SMD |
147,950 |
|
Datasheet |
 |
CEP125 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1 µH | ±20% | 16.5 A | 20A | Shielded | 2.5mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.220" (5.60mm) |
|
VLBS1007083T-R20LFIXED IND 200NH 70A 0.18MOHM SMD |
141,448 |
|
Datasheet |
|
VLBS | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 200 nH | ±15% | 70 A | 50A | Shielded | 0.18mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.394" L x 0.276" W (10.00mm x 7.00mm) | 0.327" (8.30mm) |
|
PG0702.682NLFIXED IND 6.8UH 8.5A 7.7MOHM SMD |
163,392 |
|
Datasheet |
|
PG0702NL | Nonstandard | Tray | Active | Wirewound | - | 6.8 µH | ±20% | 8.5 A | 8.5A | Shielded | 7.7mOhm | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.425" L x 0.362" W (10.80mm x 9.20mm) | 0.315" (8.00mm) |
|
2000-470-V-RCFIXED IND 47UH 3.2A 64 MOHM TH |
192,616 |
|
Datasheet |
|
2000 | Radial, Vertical (Open) | Bulk | Active | Toroidal | - | 47 µH | ±15% | 3.2 A | - | Unshielded | 64mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.680" Dia x 0.410" W (17.27mm x 10.41mm) | - |
|
FP0906R1-R22-RFIXED IND 220NH 51A 0.29MOHM SMD |
172,900 |
|
Datasheet |
|
FP0906 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 220 nH | ±10% | 51 A | 37.5A | Unshielded | 0.29mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.370" L x 0.244" W (9.40mm x 6.20mm) | 0.315" (8.00mm) |
|
74437334100FIXED IND 10UH 1.8A 0.199OHM SMD |
186,654 |
|
Datasheet |
|
WE-LHMI | 2-SMD | Tape & Reel (TR) | Active | Molded | Iron Powder | 10 µH | ±20% | 1.8 A | 5.15A | Shielded | 199mOhm Max | - | 16MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 5020 | 0.205" L x 0.205" W (5.20mm x 5.20mm) | 0.079" (2.00mm) |
|
7447709681FIXED IND 680UH 1.1A 825MOHM SMD |
114,570 |
|
Datasheet |
|
WE-PD | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 680 µH | ±20% | 1.1 A | 1.3A | Shielded | 825mOhm Max | - | 1.5MHz | AEC-Q200 | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.394" (10.00mm) |
|
7447709390FIXED IND 39UH 4.1A 56 MOHM SMD |
112,891 |
|
Datasheet |
|
WE-PD | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 39 µH | ±20% | 4.1 A | 5A | Shielded | 56mOhm Max | - | 6MHz | AEC-Q200 | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.394" (10.00mm) |
|
7447709271FIXED IND 270UH 1.6A 330MOHM SMD |
120,744 |
|
Datasheet |
|
WE-PD | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 270 µH | ±20% | 1.6 A | 2.1A | Shielded | 330mOhm Max | - | 2.5MHz | AEC-Q200 | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.394" (10.00mm) |
|
7447709270FIXED IND 27UH 4.6A 40 MOHM SMD |
165,046 |
|
Datasheet |
|
WE-PD | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 27 µH | ±20% | 4.6 A | 5.8A | Shielded | 40mOhm Max | - | 8MHz | AEC-Q200 | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.394" (10.00mm) |
|
7447709004FIXED IND 4.7UH 9.3A 11 MOHM SMD |
162,999 |
|
Datasheet |
|
WE-PD | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 4.7 µH | ±20% | 9.3 A | 13A | Shielded | 11mOhm Max | - | 38MHz | AEC-Q200 | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.394" (10.00mm) |
|
74437368150FIXED IND 15UH 4.1A 0.045OHM SMD |
119,857 |
|
Datasheet |
|
WE-LHMI | 2-SMD | Tape & Reel (TR) | Active | Molded | Iron Powder | 15 µH | ±20% | 4.1 A | 11.8A | Shielded | 45mOhm Max | - | 8MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 1040 | 0.453" L x 0.406" W (11.50mm x 10.30mm) | 0.157" (4.00mm) |
|
7447709006FIXED IND 6.8UH 8.4A 14 MOHM SMD |
110,290 |
|
Datasheet |
|
WE-PD | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 6.8 µH | ±20% | 8.4 A | 12.8A | Shielded | 14mOhm Max | - | 23MHz | AEC-Q200 | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.394" (10.00mm) |
|
|
74437368068FIXED IND 6.8UH 6A 0.0233OHM SMD |
191,878 |
|
Datasheet |
|
WE-LHMI | 2-SMD | Tape & Reel (TR) | Active | Molded | Iron Powder | 6.8 µH | ±20% | 6 A | 17.4A | Shielded | 23.3mOhm Max | - | 13MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.433" L x 0.394" W (11.00mm x 10.00mm) | 0.157" (4.00mm) |
|
|
74437368330FIXED IND 33UH 2.6A 0.112OHM SMD |
128,520 |
|
Datasheet |
|
WE-LHMI | 2-SMD | Tape & Reel (TR) | Active | Molded | Iron Powder | 33 µH | ±20% | 2.6 A | 7.4A | Shielded | 112mOhm Max | - | 6MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 1040 | 0.453" L x 0.406" W (11.50mm x 10.30mm) | 0.157" (4.00mm) |
|
|
74437368022FIXED IND 2.2UH 10A 0.007OHM SMD |
166,965 |
|
Datasheet |
|
WE-LHMI | 2-SMD | Tape & Reel (TR) | Active | Molded | Iron Powder | 2.2 µH | ±20% | 10 A | 38.7A | Shielded | 7mOhm Max | - | 27MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.433" L x 0.394" W (11.00mm x 10.00mm) | 0.157" (4.00mm) |
|
|
74437368220FIXED IND 22UH 3.5A 0.074OHM SMD |
149,266 |
|
Datasheet |
|
WE-LHMI | 2-SMD | Tape & Reel (TR) | Active | Molded | Iron Powder | 22 µH | ±20% | 3.5 A | 10.8A | Shielded | 74mOhm Max | - | 7MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 1040 | 0.453" L x 0.406" W (11.50mm x 10.30mm) | 0.157" (4.00mm) |
|
|
74437368033FIXED IND 3.3UH 8A 0.0118OHM SMD |
145,433 |
|
Datasheet |
|
WE-LHMI | 2-SMD | Tape & Reel (TR) | Active | Molded | Iron Powder | 3.3 µH | ±20% | 8 A | 31.2A | Shielded | 11.8mOhm Max | - | 22MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.433" L x 0.394" W (11.00mm x 10.00mm) | 0.157" (4.00mm) |
|

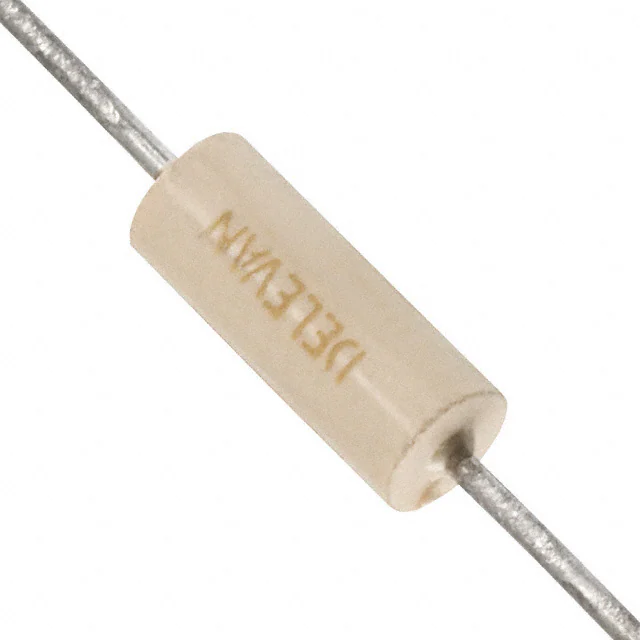

1025R-44KFIXED IND 10UH 144MA 3.3 OHM TH |
179,370 |
|
Datasheet |
|
1025R | Axial | Bulk | Active | Molded | Iron | 10 µH | ±10% | 144 mA | - | Unshielded | 3.3Ohm Max | 55 @ 7.9MHz | 50MHz | - | -55°C ~ 105°C | 7.9 MHz | - | Through Hole | - | 0.095" Dia x 0.250" L (2.41mm x 6.35mm) | - |
|
7447709152FIXED IND 1.5MH 650MA 2.3OHM SMD |
160,550 |
|
Datasheet |
|
WE-PD | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1.5 mH | ±20% | 650 mA | 800mA | Shielded | 2.3Ohm Max | - | 900kHz | AEC-Q200 | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.394" (10.00mm) |
