Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | RoHs | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
7443556130FIXED IND 1.3UH 34.5A 0.94 MOHM |
184,906 |
|
Datasheet |
 |
WE-HCI | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 1.3 µH | ±20% | 34.5 A | 62A | Shielded | 0.94mOhm | - | 78MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 1890 | 0.720" L x 0.717" W (18.30mm x 18.20mm) | 0.362" (9.20mm) |
.jpg)
|
AIRD-03-101KFIXED IND 100UH 9A 34 MOHM TH |
117,541 |
|
Datasheet |
|
AIRD-03 | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 100 µH | ±10% | 9 A | 13A | Unshielded | 34mOhm Max | - | - | - | -25°C ~ 85°C | 1 Hz | - | Through Hole | - | 1.102" Dia (28.00mm) | 0.827" (21.00mm) |
|
|
7443556450FIXED IND 4.5UH 20.5A 3.4MOHM SM |
132,989 |
|
Datasheet |
|
WE-HCI | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 4.5 µH | ±20% | 20.5 A | 37A | Shielded | 3.4mOhm | - | 35MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 1890 | 0.720" L x 0.717" W (18.30mm x 18.20mm) | 0.362" (9.20mm) |
|
B82559A4322A033ERU33 PTH FLAT WIRE INDUCTOR 3.2 |
112,324 |
|
Datasheet |
|
ERU33 - Flat Wire Inductor | Nonstandard | Tray | Active | Wirewound | Ferrite | 3.2 µH | ±12% | 58 A | 95A | Shielded | 0.85mOhm | - | - | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Through Hole | - | 1.299" L x 1.154" W (33.00mm x 29.30mm) | 0.606" (15.40mm) |
|
IHDF1300AEEH3R3K1AFIXED IND 3.3UH 59A 1.11MOHM TH |
162,653 |
|
Datasheet |
|
IHDF-1300AE-1A | Nonstandard | Tray | Active | Drum Core, Wirewound | Ferrite | 3.3 µH | ±10% | 59 A | 112A | Unshielded | 1.11mOhm Max | - | 18MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Through Hole | - | 1.299" L x 1.173" W (33.00mm x 29.80mm) | 0.606" (15.40mm) |
|
7443557760FIXED IND 7.6UH 20A 3.75MOHM SMD |
176,294 |
|
Datasheet |
|
WE-HCI | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 7.6 µH | ±20% | 20 A | 20.5A | Shielded | 3.75mOhm | - | 20MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 1890 | 0.720" L x 0.717" W (18.30mm x 18.20mm) | 0.362" (9.20mm) |
|
HC1-2R3-RFIXED IND 2.3UH 22.3A 2 MOHM SMD |
193,508 |
|
Datasheet |
|
HC1 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2.3 µH | ±15% | 22.3 A | 16.7A | Unshielded | 2mOhm Max | - | - | - | -40°C ~ 125°C | 300 kHz | - | Surface Mount | - | 0.512" L x 0.512" W (13.00mm x 13.00mm) | 0.394" (10.00mm) |
|

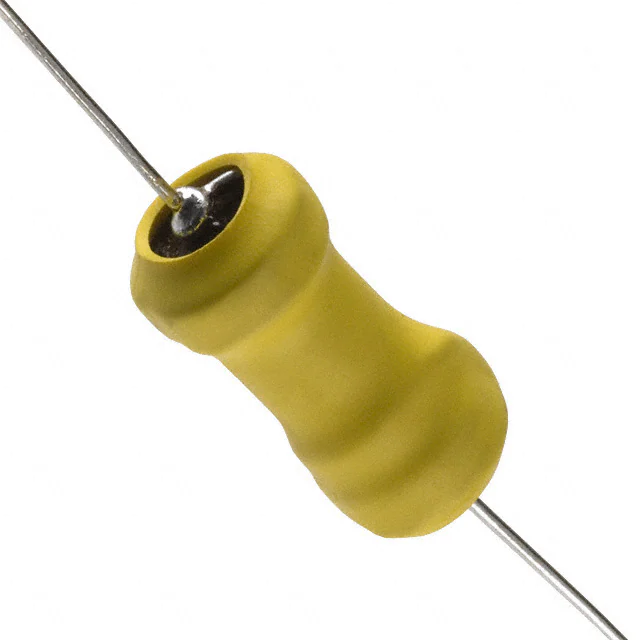

4590R-105KFIXED IND 1MH 890MA 844 MOHM TH |
138,656 |
|
Datasheet |
|
4590R | Axial | Bulk | Active | Drum Core, Wirewound | Ferrite | 1 mH | ±10% | 890 mA | 560mA | Unshielded | 844mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.455" Dia x 0.900" L (11.55mm x 22.86mm) | - |
|
|
4590R-107KFIXED IND 100MH 90MA 76 OHM TH |
112,758 |
|
Datasheet |
|
4590R | Axial | Bulk | Active | Drum Core, Wirewound | Ferrite | 100 mH | ±10% | 90 mA | 60mA | Unshielded | 76Ohm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.455" Dia x 0.900" L (11.55mm x 22.86mm) | - |
|
|
4590R-335KFIXED IND 3.3MH 510MA 2.53OHM TH |
147,823 |
|
Datasheet |
|
4590R | Axial | Bulk | Active | Drum Core, Wirewound | Ferrite | 3.3 mH | ±10% | 510 mA | 310mA | Unshielded | 2.53Ohm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.455" Dia x 0.900" L (11.55mm x 22.86mm) | - |
|
|
4590R-475KFIXED IND 4.7MH 415MA 3.79OHM TH |
100,839 |
|
Datasheet |
|
4590R | Axial | Bulk | Active | Drum Core, Wirewound | Ferrite | 4.7 mH | ±10% | 415 mA | 260mA | Unshielded | 3.79Ohm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.455" Dia x 0.900" L (11.55mm x 22.86mm) | - |
|
|
4590R-226KFIXED IND 22MH 190MA 18 OHM TH |
160,731 |
|
Datasheet |
|
4590R | Axial | Bulk | Active | Drum Core, Wirewound | Ferrite | 22 mH | ±10% | 190 mA | 120mA | Unshielded | 18Ohm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.455" Dia x 0.900" L (11.55mm x 22.86mm) | - |
|
|
4590R-156KFIXED IND 15MH 250MA 10.7 OHM TH |
101,133 |
|
Datasheet |
|
4590R | Axial | Bulk | Active | Drum Core, Wirewound | Ferrite | 15 mH | ±10% | 250 mA | 150mA | Unshielded | 10.7Ohm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.455" Dia x 0.900" L (11.55mm x 22.86mm) | - |
|
4922R-53LFIXED IND 22MH 50MA 160 OHM SMD |
123,476 |
|
Datasheet |
|
4922R | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 22 mH | ±15% | 50 mA | 50mA | Unshielded | 160Ohm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.505" L x 0.240" W (12.82mm x 6.09mm) | 0.230" (5.84mm) |
|

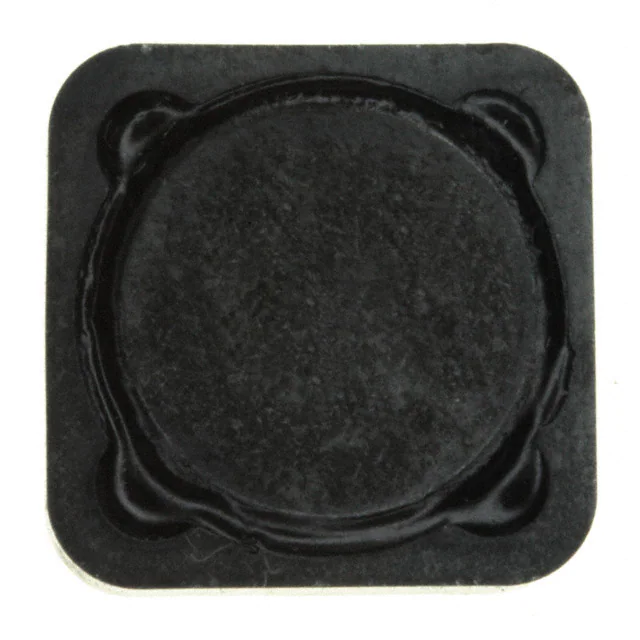

SPD127R-105MFIXED IND 1MH 620MA 1.54 OHM SMD |
113,980 |
|
Datasheet |
|
SPD127R | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1 mH | ±20% | 620 mA | 620mA | Shielded | 1.54Ohm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.315" (8.00mm) |
|
|
SPD127R-333MFIXED IND 33UH 3A 65 MOHM SMD |
199,474 |
|
Datasheet |
|
SPD127R | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 33 µH | ±20% | 3 A | 3A | Shielded | 65mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.315" (8.00mm) |
|
IHDM1008BCEV1R2M30FIXED IND 1.2UH 80A 0.3 MOHM TH |
155,426 |
|
Datasheet |
|
IHDM-1008BC-x0 | Vertical, 2 PC Pin | Tray | Active | Drum Core, Wirewound | Iron Powder | 1.2 µH | ±20% | 100 A | 205A | Unshielded | 0.3mOhm Max | - | 91MHz | - | -40°C ~ 180°C | 100 kHz | - | Through Hole | Vertical, 2 PC Pin | 1.005" L x 0.816" W (25.53mm x 20.73mm) | 0.896" (22.75mm) |
|
1008R-103JFIXED IND 10UH 245MA 2.5 OHM SMD |
178,710 |
|
Datasheet |
|
1008R | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 10 µH | ±5% | 245 mA | - | Unshielded | 2.5Ohm Max | 30 @ 7.9MHz | 28MHz | - | -55°C ~ 125°C | 7.9 MHz | - | Surface Mount | - | 0.105" L x 0.095" W (2.66mm x 2.41mm) | 0.095" (2.41mm) |
|
|
1008R-472JFIXED IND 4.7UH 334MA 1.35OHM SM |
127,272 |
|
Datasheet |
|
1008R | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 4.7 µH | ±5% | 334 mA | - | Unshielded | 1.35Ohm Max | 30 @ 7.9MHz | 47MHz | - | -55°C ~ 125°C | 7.9 MHz | - | Surface Mount | - | 0.105" L x 0.095" W (2.66mm x 2.41mm) | 0.095" (2.41mm) |
|

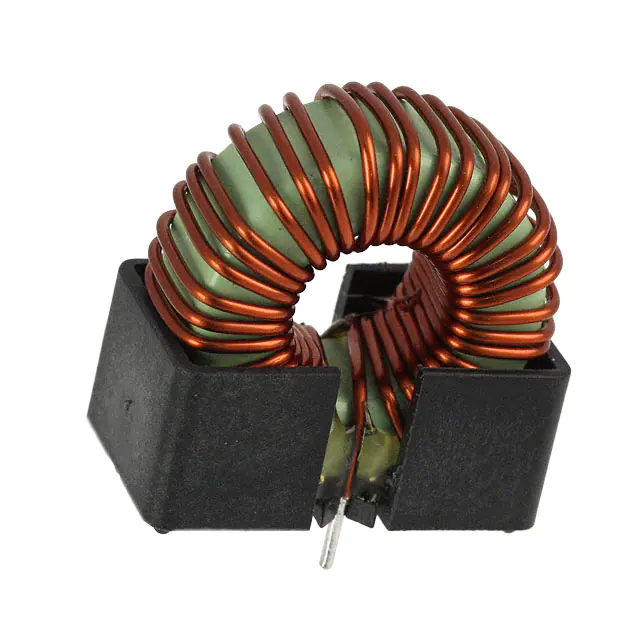

PE-92112KNLFIXED IND 100UH 5A 34 MOHM TH |
100,229 |
|
Datasheet |
|
- | Radial, Vertical (Open) | Tray | Active | Toroidal | - | 100 µH | ±20% | 5 A | - | Unshielded | 34mOhm Max | - | - | - | -40°C ~ 130°C | 20 kHz | - | Through Hole | - | 1.300" L x 0.700" W (33.02mm x 17.78mm) | 1.400" (35.56mm) |
