Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | RoHs | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PM0603-47NJ-RCFIXED IND 47NH 600MA 280MOHM SMD Bourns Inc. |
167,226 |
|
Datasheet |
 |
PM0603 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Alumina | 47 nH | ±5% | 600 mA | - | Unshielded | 280mOhm | 35 @ 250MHz | 2.1GHz | - | -40°C ~ 125°C | 200 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.065" L x 0.041" W (1.65mm x 1.05mm) | 0.047" (1.20mm) |
|
CW201212-27NJFIXED IND 27NH 600MA 120MOHM SMD Bourns Inc. |
186,335 |
|
Datasheet |
|
CW201212 | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 27 nH | ±5% | 600 mA | - | Unshielded | 120mOhm | 60 @ 500MHz | 2.6GHz | - | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.083" L x 0.059" W (2.10mm x 1.50mm) | 0.059" (1.50mm) |
|
|
CW201212-R22JFIXED IND 220NH 300MA 1.1OHM SMD Bourns Inc. |
170,765 |
|
Datasheet |
|
CW201212 | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 220 nH | ±5% | 300 mA | - | Unshielded | 1.1Ohm | 50 @ 250MHz | 860MHz | - | -40°C ~ 125°C | 100 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.083" L x 0.059" W (2.10mm x 1.50mm) | 0.059" (1.50mm) |
|

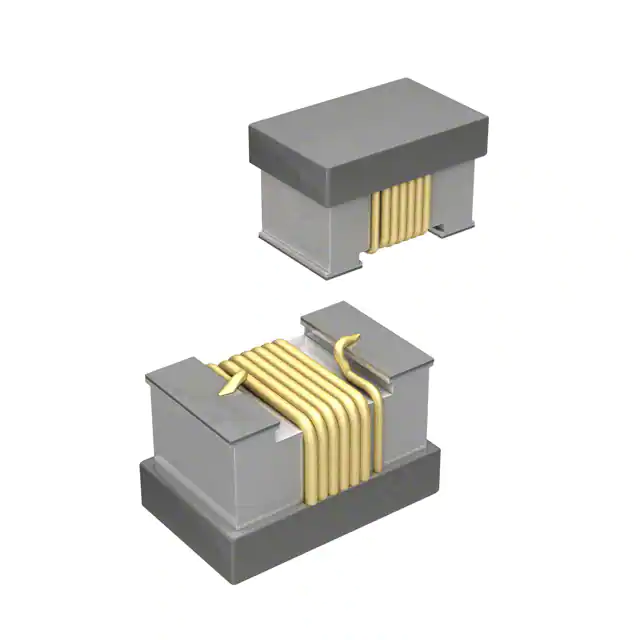

CW160808-68NJFIXED IND 68NH 600MA 340MOHM SMD Bourns Inc. |
135,960 |
|
Datasheet |
|
CW160808 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Alumina | 68 nH | ±5% | 600 mA | - | Unshielded | 340mOhm | 35 @ 250MHz | 1.7GHz | - | -40°C ~ 125°C | 200 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.065" L x 0.041" W (1.65mm x 1.05mm) | 0.047" (1.20mm) |
|
|
PM0603-33NJ-RCFIXED IND 33NH 600MA 220MOHM SMD Bourns Inc. |
193,346 |
|
Datasheet |
|
PM0603 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Alumina | 33 nH | ±5% | 600 mA | - | Unshielded | 220mOhm | 35 @ 250MHz | 2.3GHz | - | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.065" L x 0.041" W (1.65mm x 1.05mm) | 0.047" (1.20mm) |
|
|
CW160808-6N8JFIXED IND 6.8NH 700MA 110MOHM SM Bourns Inc. |
178,687 |
|
Datasheet |
|
CW160808 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Alumina | 6.8 nH | ±5% | 700 mA | - | Unshielded | 110mOhm | 25 @ 250MHz | 5.8GHz | - | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.065" L x 0.041" W (1.65mm x 1.05mm) | 0.047" (1.20mm) |
|
|
PM0603-18NJ-RCFIXED IND 18NH 700MA 170MOHM SMD Bourns Inc. |
113,395 |
|
Datasheet |
|
PM0603 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Alumina | 18 nH | ±5% | 700 mA | - | Unshielded | 170mOhm | 30 @ 250MHz | 3.1GHz | - | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.065" L x 0.041" W (1.65mm x 1.05mm) | 0.047" (1.20mm) |
|
|
CW201212-68NJFIXED IND 68NH 500MA 270MOHM SMD Bourns Inc. |
128,437 |
|
Datasheet |
|
CW201212 | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 68 nH | ±5% | 500 mA | - | Unshielded | 270mOhm | 60 @ 500MHz | 1.45GHz | - | -40°C ~ 125°C | 200 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.083" L x 0.059" W (2.10mm x 1.50mm) | 0.059" (1.50mm) |
|
|
CW201212-82NJFIXED IND 82NH 500MA 320MOHM SMD Bourns Inc. |
182,384 |
|
Datasheet |
|
CW201212 | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 82 nH | ±5% | 500 mA | - | Unshielded | 320mOhm | 60 @ 500MHz | 1.35GHz | - | -40°C ~ 125°C | 150 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.083" L x 0.059" W (2.10mm x 1.50mm) | 0.059" (1.50mm) |
|
|
CW160808-15NJFIXED IND 15NH 700MA 170MOHM SMD Bourns Inc. |
149,540 |
|
Datasheet |
|
CW160808 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Alumina | 15 nH | ±5% | 700 mA | - | Unshielded | 170mOhm | 30 @ 250MHz | 4GHz | - | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.065" L x 0.041" W (1.65mm x 1.05mm) | 0.047" (1.20mm) |
