Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | RoHs | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SRR6040A-150MFIXED IND 15UH 1.6A 60 MOHM SMD Bourns Inc. |
163,409 |
|
Datasheet |
 |
SRR6040A | Nonstandard, Corner Terminals | Tape & Reel (TR) | Active | - | Ferrite | 15 µH | ±20% | 1.6 A | 1.51A | Shielded | 60mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 10 kHz | - | Surface Mount | - | 0.264" L x 0.264" W (6.70mm x 6.70mm) | 0.157" (4.00mm) |
|
|
SRR6040A-180MFIXED IND 18UH 1.5A 75 MOHM SMD Bourns Inc. |
143,878 |
|
Datasheet |
|
SRR6040A | Nonstandard, Corner Terminals | Tape & Reel (TR) | Active | - | Ferrite | 18 µH | ±20% | 1.5 A | 1.35A | Shielded | 75mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 10 kHz | - | Surface Mount | - | 0.264" L x 0.264" W (6.70mm x 6.70mm) | 0.157" (4.00mm) |
|

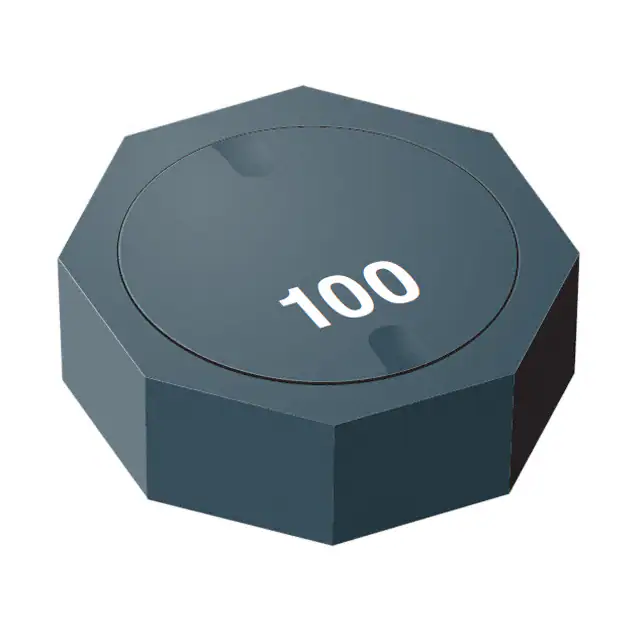

SRU1038A-100YFIXED IND 10UH 3.8A 35 MOHM SMD Bourns Inc. |
163,006 |
|
Datasheet |
|
SRU1038A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±30% | 3.8 A | 3.6A | Shielded | 35mOhm Max | 24 @ 2.52MHz | 20MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.394" L x 0.394" W (10.00mm x 10.00mm) | 0.161" (4.10mm) |
|
|
SRR6040A-220MFIXED IND 22UH 1.3A 87 MOHM SMD Bourns Inc. |
105,234 |
|
Datasheet |
|
SRR6040A | Nonstandard, Corner Terminals | Tape & Reel (TR) | Active | - | Ferrite | 22 µH | ±20% | 1.3 A | 1.22A | Shielded | 87mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 10 kHz | - | Surface Mount | - | 0.264" L x 0.264" W (6.70mm x 6.70mm) | 0.157" (4.00mm) |
|
SRU1028A-3R3YFIXED IND 3.3UH 4.6A 20 MOHM SMD Bourns Inc. |
110,461 |
|
Datasheet |
|
SRU1028A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 3.3 µH | ±30% | 4.6 A | 4.3A | Shielded | 20mOhm Max | 14 @ 7.96MHz | 55MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.394" L x 0.394" W (10.00mm x 10.00mm) | 0.122" (3.10mm) |
|
|
SRU1028A-101YFIXED IND 100UH 850MA 470MOHM SM Bourns Inc. |
181,271 |
|
Datasheet |
|
SRU1028A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 100 µH | ±30% | 850 mA | 800mA | Shielded | 470mOhm Max | 20 @ 796kHz | 7MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.394" L x 0.394" W (10.00mm x 10.00mm) | 0.122" (3.10mm) |
|
SDR1806-220MLFIXED IND 22UH 3.6A 45 MOHM SMD Bourns Inc. |
111,144 |
|
Datasheet |
|
SDR1806 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 22 µH | ±20% | 3.6 A | 6.7A | Unshielded | 45mOhm Max | 22 @ 2.52MHz | 13MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.720" L x 0.551" W (18.30mm x 14.00mm) | 0.272" (6.90mm) |
|
SRU1048A-150YFIXED IND 15UH 3.2A 40 MOHM SMD Bourns Inc. |
141,695 |
|
Datasheet |
|
SRU1048A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 15 µH | ±30% | 3.2 A | 2.7A | Shielded | 40mOhm Max | 30 @ 2.52MHz | 14MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.394" L x 0.394" W (10.00mm x 10.00mm) | 0.201" (5.10mm) |
|
|
SDR1806-102KLFIXED IND 1MH 500MA 1.8 OHM SMD Bourns Inc. |
150,129 |
|
Datasheet |
|
SDR1806 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1 mH | ±10% | 500 mA | 1A | Unshielded | 1.8Ohm Max | 10 @ 252kHz | 2MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.720" L x 0.551" W (18.30mm x 14.00mm) | 0.272" (6.90mm) |
|
|
SDR1806-470MLFIXED IND 47UH 2.5A 95 MOHM SMD Bourns Inc. |
125,514 |
|
Datasheet |
|
SDR1806 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 47 µH | ±20% | 2.5 A | 4.6A | Unshielded | 95mOhm Max | 22 @ 2.52MHz | 9MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.720" L x 0.551" W (18.30mm x 14.00mm) | 0.272" (6.90mm) |
