Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | RoHs | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

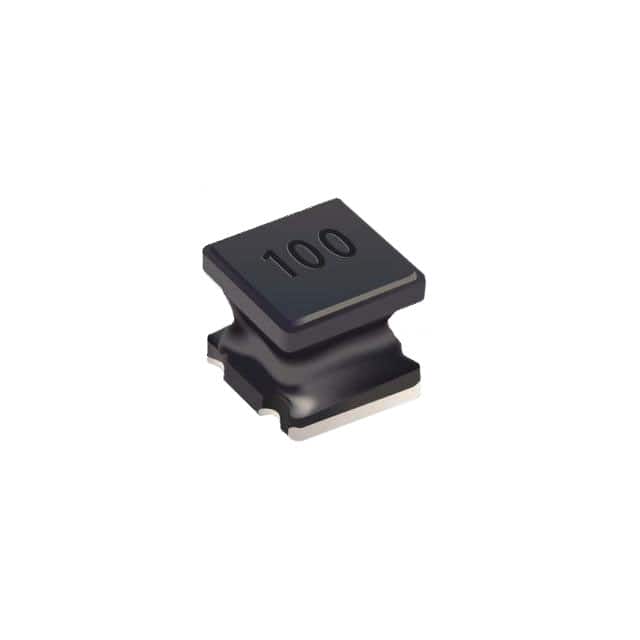

SRN3030HA-101MIND,3X3X3MM,100UH20%,0.25A,150C, Bourns Inc. |
157,037 |
|
Datasheet |
 |
SRN3030HA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 100 µH | ±20% | 250 mA | 500mA | Shielded | 5Ohm Max | 33 @ 796kHz | 7MHz | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.118" (3.00mm) |
|
|
SRN3030HA-100MIND,3X3X3MM,10UH20%,0.9A,150C,SH Bourns Inc. |
196,710 |
|
Datasheet |
|
SRN3030HA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 900 mA | 1.6A | Shielded | 450mOhm Max | 20 @ 2.52MHz | 25MHz | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.118" (3.00mm) |
|
|
SRN3030HA-4R7YIND,3X3X3MM,4.7UH30%,1.4A,150C,S Bourns Inc. |
162,854 |
|
Datasheet |
|
SRN3030HA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 4.7 µH | ±30% | 1.4 A | 2.4A | Shielded | 200mOhm Max | 15 @ 7.96MHz | 37MHz | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.118" (3.00mm) |
|
SRN5030HA-4R7YIND,5X5X3MM,4.7UH30%,3.5A,150C,S Bourns Inc. |
173,472 |
|
Datasheet |
|
SRN5030HA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 4.7 µH | ±30% | 2.7 A | 3.5A | Shielded | 53mOhm Max | 13 @ 7.96MHz | 39MHz | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.118" (3.00mm) |
|
|
SRN5030HA-1R5YIND,5X5X3MM,1.5UH30%,6.4A,150C,S Bourns Inc. |
168,213 |
|
Datasheet |
|
SRN5030HA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1.5 µH | ±30% | 4.2 A | 6.4A | Shielded | 26mOhm Max | 13 @ 7.96MHz | 67MHz | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.118" (3.00mm) |
|
CC453232A-1R5KLFIXED IND 1.5UH 1.9A 120MOHM SMD Bourns Inc. |
109,063 |
|
Datasheet |
|
CC453232A | 1812 (4532 Metric) | Tape & Reel (TR) | Active | - | Ferrite | 1.5 µH | ±10% | 1.9 A | 1.85A | Unshielded | 120mOhm Max | 10 @ 7.96MHz | 110MHz | AEC-Q200 | -40°C ~ 150°C | 7.96 MHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
|
|
CC453232A-2R2KLFIXED IND 2.2UH 1.6A 170MOHM SMD Bourns Inc. |
118,361 |
|
Datasheet |
|
CC453232A | 1812 (4532 Metric) | Tape & Reel (TR) | Active | - | Ferrite | 2.2 µH | ±10% | 1.6 A | 1.55A | Unshielded | 170mOhm Max | 10 @ 7.96MHz | 70MHz | AEC-Q200 | -40°C ~ 150°C | 7.96 MHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
|
RLB1014-101KLFIXED IND 100UH 780MA 850MOHM TH Bourns Inc. |
186,389 |
|
Datasheet |
|
RLB | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 100 µH | ±10% | 780 mA | 2A | Unshielded | 850mOhm Max | 45 @ 796kHz | 3.2MHz | - | -40°C ~ 125°C | 796 kHz | - | Through Hole | - | 0.343" Dia (8.70mm) | 0.512" (13.00mm) |
|
SDR0604-181KLFIXED IND 180UH 380MA 1.38OHM SM Bourns Inc. |
138,316 |
|
Datasheet |
|
SDR0604 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 180 µH | ±10% | 380 mA | 500mA | Unshielded | 1.38Ohm Max | 20 @ 796kHz | 6MHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.228" L x 0.228" W (5.80mm x 5.80mm) | 0.189" (4.80mm) |
|
|
SDR0604-391KLFIXED IND 390UH 250MA 2.48OHM SM Bourns Inc. |
128,344 |
|
Datasheet |
|
SDR0604 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 390 µH | ±10% | 250 mA | 340mA | Unshielded | 2.48Ohm Max | 25 @ 796kHz | 3MHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.228" L x 0.228" W (5.80mm x 5.80mm) | 0.189" (4.80mm) |
