Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | RoHs | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PM40-R22MFIXED IND 220NH 450MA 320MOHM SM Bourns Inc. |
148,461 |
|
Datasheet |
 |
PM40 | 1812 (4532 Metric) | Tape & Reel (TR) | Obsolete | Molded | Non-Magnetic | 220 nH | ±20% | 450 mA | - | Unshielded | 320mOhm Max | 30 @ 25.2MHz | 350MHz | - | -55°C ~ 125°C | 25.2 MHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.126" (3.20mm) |
|

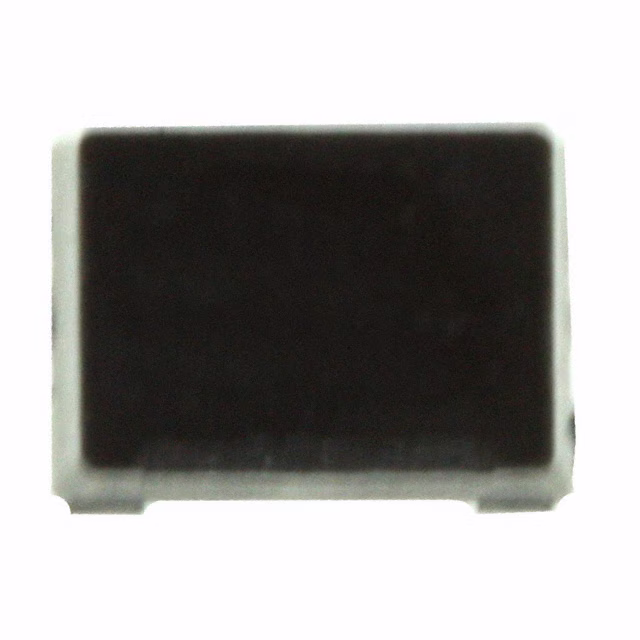

PM40-R27MFIXED IND 270NH 450MA 360MOHM SM Bourns Inc. |
149,482 |
|
Datasheet |
|
PM40 | 1812 (4532 Metric) | Tape & Reel (TR) | Obsolete | Molded | Non-Magnetic | 270 nH | ±20% | 450 mA | - | Unshielded | 360mOhm Max | 30 @ 25.2MHz | 320MHz | - | -55°C ~ 125°C | 25.2 MHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.126" (3.20mm) |
|
|
PM40-R33MFIXED IND 330NH 450MA 400MOHM SM Bourns Inc. |
102,024 |
|
Datasheet |
|
PM40 | 1812 (4532 Metric) | Tape & Reel (TR) | Obsolete | Molded | Non-Magnetic | 330 nH | ±20% | 450 mA | - | Unshielded | 400mOhm Max | 30 @ 25.2MHz | 300MHz | - | -55°C ~ 125°C | 25.2 MHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.126" (3.20mm) |
|
|
PM40-R47MFIXED IND 470NH 450MA 500MOHM SM Bourns Inc. |
161,678 |
|
Datasheet |
|
PM40 | 1812 (4532 Metric) | Tape & Reel (TR) | Obsolete | Molded | Non-Magnetic | 470 nH | ±20% | 450 mA | - | Unshielded | 500mOhm Max | 30 @ 25.2MHz | 320MHz | - | -55°C ~ 125°C | 25.2 MHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.126" (3.20mm) |
|

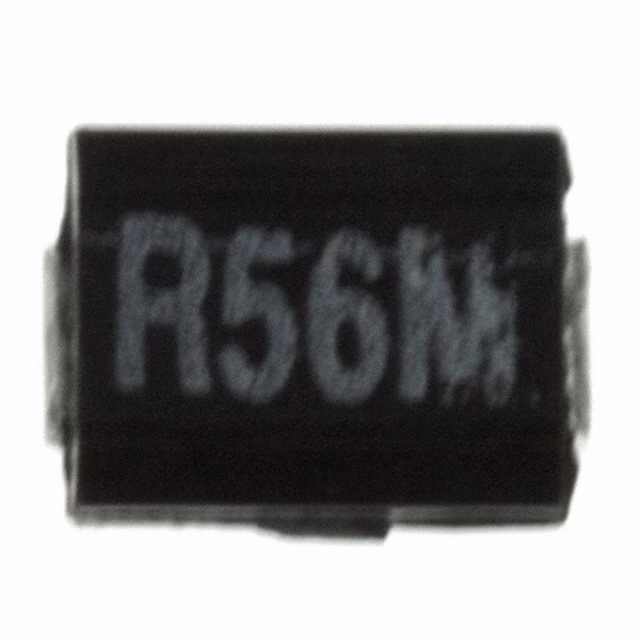

PM40-R56MFIXED IND 560NH 450MA 550MOHM SM Bourns Inc. |
102,315 |
|
Datasheet |
|
PM40 | 1812 (4532 Metric) | Tape & Reel (TR) | Obsolete | Molded | Non-Magnetic | 560 nH | ±20% | 450 mA | - | Unshielded | 550mOhm Max | 30 @ 25.2MHz | 180MHz | - | -55°C ~ 125°C | 25.2 MHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.126" (3.20mm) |
|

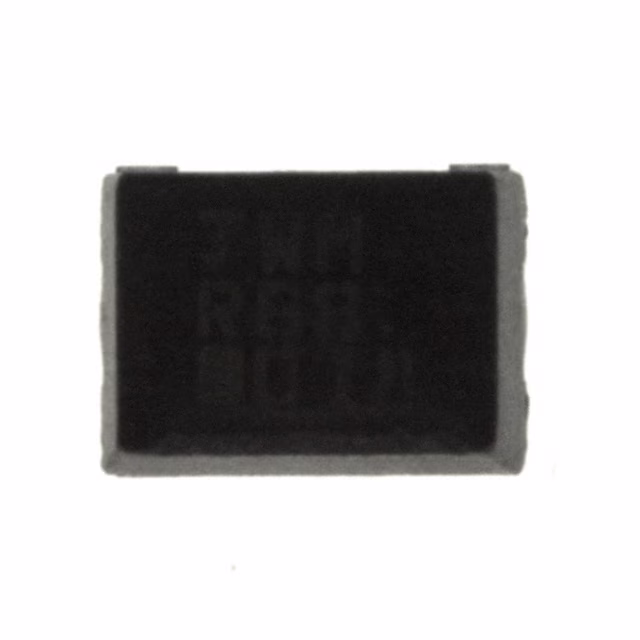

PM40-R68MFIXED IND 680NH 450MA 600MOHM SM Bourns Inc. |
126,542 |
|
Datasheet |
|
PM40 | 1812 (4532 Metric) | Tape & Reel (TR) | Obsolete | Molded | Non-Magnetic | 680 nH | ±20% | 450 mA | - | Unshielded | 600mOhm Max | 30 @ 25.2MHz | 160MHz | - | -55°C ~ 125°C | 25.2 MHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.126" (3.20mm) |
|
|
PM40-1R0KFIXED IND 1UH 450MA 500 MOHM SMD Bourns Inc. |
125,764 |
|
Datasheet |
|
PM40 | 1812 (4532 Metric) | Tape & Reel (TR) | Obsolete | Molded | Iron Powder | 1 µH | ±10% | 450 mA | - | Unshielded | 500mOhm Max | 50 @ 7.96MHz | 100MHz | - | -55°C ~ 125°C | 7.96 MHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.126" (3.20mm) |
|
|
PM40-1R2KFIXED IND 1.2UH 430MA 550MOHM SM Bourns Inc. |
149,196 |
|
Datasheet |
|
PM40 | 1812 (4532 Metric) | Tape & Reel (TR) | Obsolete | Molded | Iron Powder | 1.2 µH | ±10% | 430 mA | - | Unshielded | 550mOhm Max | 50 @ 7.96MHz | 80MHz | - | -55°C ~ 125°C | 7.96 MHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.126" (3.20mm) |
|
|
PM40-1R5KFIXED IND 1.5UH 410MA 600MOHM SM Bourns Inc. |
168,687 |
|
Datasheet |
|
PM40 | 1812 (4532 Metric) | Tape & Reel (TR) | Obsolete | Molded | Iron Powder | 1.5 µH | ±10% | 410 mA | - | Unshielded | 600mOhm Max | 50 @ 7.96MHz | 70MHz | - | -55°C ~ 125°C | 7.96 MHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.126" (3.20mm) |
|
|
PM40-2R2KFIXED IND 2.2UH 380MA 700MOHM SM Bourns Inc. |
195,845 |
|
Datasheet |
|
PM40 | 1812 (4532 Metric) | Tape & Reel (TR) | Obsolete | Molded | Iron Powder | 2.2 µH | ±10% | 380 mA | - | Unshielded | 700mOhm Max | 50 @ 7.96MHz | 55MHz | - | -55°C ~ 125°C | 7.96 MHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.126" (3.20mm) |
