Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | RoHs | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CPD3122SA-8R2MTHT HIGH CURRENT POWER INDUCTOR CODACA |
187,540 |
|
Datasheet |
 |
CPD3122SA | Vertical, 4 PC Pin | Tray | Active | Wirewound | Ferrite | 8.2 µH | ±20% | 25 A | 72A | Shielded | 5.1mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | Low Loss Ferrite Core | Through Hole | Vertical, 4 PC Pin | 1.220" L x 0.886" W (31.00mm x 22.50mm) | 1.299" (33.00mm) |
|

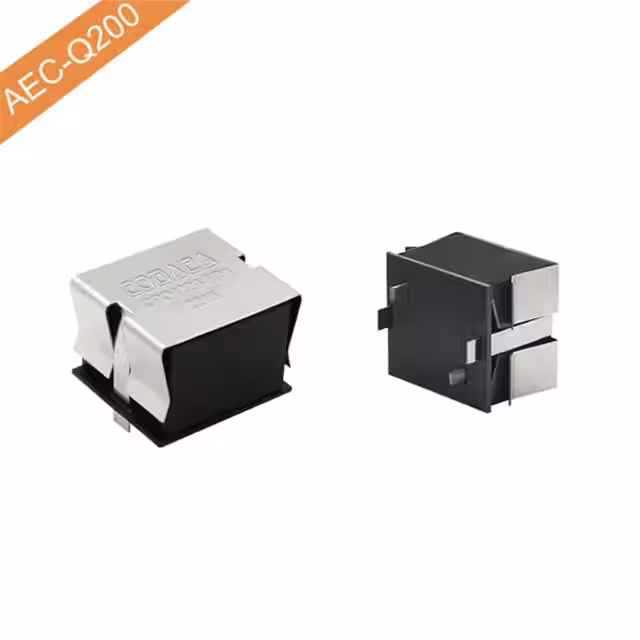

CPQ4228-100MTHT HIGH CURRENT POWER INDUCTOR CODACA |
114,839 |
|
Datasheet |
|
CPQ4228 | Nonstandard | Tray | Active | Wirewound | Ferrite | 10 µH | ±20% | 34 A | 60A | Shielded | 2.95mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | Flat Wire, High Current | Through Hole | Vertical, 4 PC Pin | 1.654" L x 1.409" W (42.00mm x 35.80mm) | 1.142" (29.00mm) |
|
|
CPEX2622L-7R5MCTHT HIGH CURRENT POWER INDUCTOR CODACA |
111,578 |
|
Datasheet |
|
CPEX2622L | Nonstandard | Tray | Active | Wirewound | Metal Composite | 7.5 µH | ±20% | 48 A | 60A | Shielded | 1.15mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | Flat Wire, High Current, Soft Saturation | Through Hole | - | 1.043" L x 0.874" W (26.50mm x 22.20mm) | 0.984" (25.00mm) |
|
|
CPEX2622L-220MCTHT HIGH CURRENT POWER INDUCTOR CODACA |
113,373 |
|
Datasheet |
|
CPEX2622L | Nonstandard | Tray | Active | Wirewound | Metal Composite | 22 µH | ±20% | 28 A | 37A | Shielded | 3.48mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | Flat Wire, High Current, Soft Saturation | Through Hole | - | 1.043" L x 0.874" W (26.50mm x 22.20mm) | 0.984" (25.00mm) |
|
|
CPEX2622L-5R6MCTHT HIGH CURRENT POWER INDUCTOR CODACA |
132,129 |
|
Datasheet |
|
CPEX2622L | Nonstandard | Tray | Active | Wirewound | Metal Composite | 5.6 µH | ±20% | 56 A | 70A | Shielded | 0.84mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | Flat Wire, High Current, Soft Saturation | Through Hole | - | 1.043" L x 0.874" W (26.50mm x 22.20mm) | 0.984" (25.00mm) |
|
|
CPRX3231L-300MCTHT HIGH CURRENT POWER INDUCTOR CODACA |
129,727 |
|
Datasheet |
|
CPRX3231L | Radial, Horizontal (Open) | Tray | Active | Wirewound | Metal Composite | 30 µH | ±20% | 30 A | 47A | Shielded | 2.95mOhm Max | - | - | - | -55°C ~ 155°C | 100 kHz | Flat Wire, High Current | Through Hole | Radial, Horizontal (Open) | 1.291" L x 1.260" W (32.80mm x 32.00mm) | 1.181" (30.00mm) |
|
|
CPRX3231L-100MCTHT HIGH CURRENT POWER INDUCTOR CODACA |
139,534 |
|
Datasheet |
|
CPRX3231L | Radial, Horizontal (Open) | Tray | Active | Wirewound | Metal Composite | 10 µH | ±20% | 50 A | 78A | Shielded | 1.05mOhm Max | - | - | - | -55°C ~ 155°C | 100 kHz | Flat Wire, High Current | Through Hole | Radial, Horizontal (Open) | 1.291" L x 1.260" W (32.80mm x 32.00mm) | 1.181" (30.00mm) |
|
|
CPEA2626L-220MCTHT HIGH CURRENT POWER INDUCTOR CODACA |
108,489 |
|
Datasheet |
|
CPEA2626L | Vertical, 2 PC Pin | Tray | Active | Wirewound | Metal Composite | 22 µH | ±20% | 30 A | 21A | Shielded | 2.99mOhm Max | - | - | - | -55°C ~ 150°C | 100 kHz | Flat Wire, High Frequency, Low Loss, Soft Saturation | Through Hole | Vertical, 2 PC Pin | 1.043" L x 1.024" W (26.50mm x 26.00mm) | 0.984" (25.00mm) |
|
|
CPEX2626L-180MCTHT HIGH CURRENT POWER INDUCTOR CODACA |
123,845 |
|
Datasheet |
|
CPEX2626L | Nonstandard | Tray | Active | Wirewound | Metal Composite | 18 µH | ±20% | 33 A | 44A | Shielded | 2.62mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | Flat Wire, High Current, Soft Saturation | Through Hole | - | 1.043" L x 1.024" W (26.50mm x 26.00mm) | 0.984" (25.00mm) |
|
|
CPEX2626L-6R5MCTHT HIGH CURRENT POWER INDUCTOR CODACA |
193,760 |
|
Datasheet |
|
CPEX2626L | Nonstandard | Tray | Active | Wirewound | Metal Composite | 6.5 µH | ±20% | 56 A | 72A | Shielded | 0.9mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | Flat Wire, High Current, Soft Saturation | Through Hole | - | 1.043" L x 1.024" W (26.50mm x 26.00mm) | 0.984" (25.00mm) |
